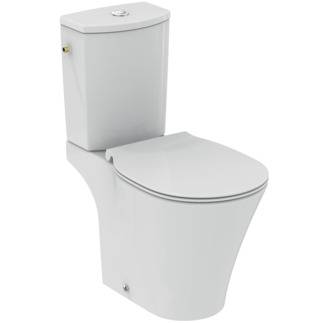

Connect Air Close Coupled Toilet Bowl
Verified by manufacturer over a year ago
Close coupled toilet bowl.
Application
Suitable for hotel, office, residential and leisure use.
Description
Connect Air close coupled toilet bowl with horizontal
outlet and Aquablade flush technology.
The WC is screwed to floor using concealed brackets and the cistern is screwed to wall.
Features and benefits:
- Part of an extensive range.
- Water efficient.
- Aquablade flush technology.
- Push button dual flush cistern.
- Slow close with quick release seat option.
- Choice of seat style.
General information
Color | White |
Material | Vitreous china |
Shape | Other Guidance for specification option: Curved. |
Width | 364 mm |
Height | 400 mm |
Uniclass | |
CAWS | N13/15 Urinals and cisterns N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Close coupled, open back. |
Connecting dimensions | To BS EN 33. |
Pan height | 400 mm. |
Materials | |
Body | Vitreous china to BS 3402. |
Finish and colour | White. |
Net weight | 24.3 kg. |
Cistern | Push button, dual flush. |
Dimensions | 364 x 660 mm. Guidance for specification option: W x D. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
