Cloud
Verified by manufacturer 6 months ago

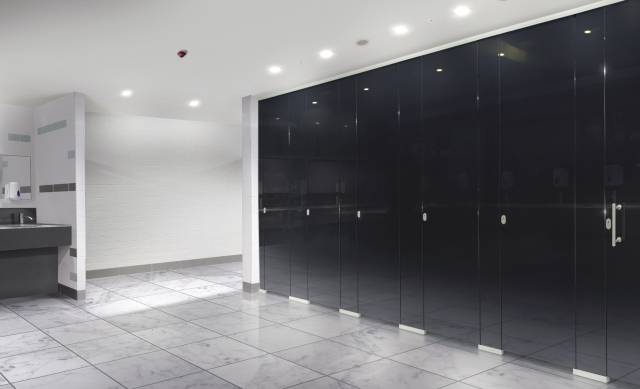

Full height, flush fronted glass or solid grade laminate toilet cubicle system with rebated mating style and hidden fixings.
Application
Suitable for the commercial washroom sector.
Description
A highly engineered, full height, flush fronted toilet cubicle system that has been developed for the commercial washroom sector. Manufactured using solid grade laminate, machined components and aluminium extrusions.
General information
Color | Silver |
Finish | Satin Guidance for specification option: Satin Silver Anodized. Anodized |
Material | Laminate Guidance for specification option: Solid Grade Laminate. Aluminium Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Specification data - Panel cubicle systems
Panels | 16 mm Solid Grade Laminate.12 mm Solid Grade Laminate. |
Panel supports | Aluminium extrusions, satin anodized (25 microns), silver.Guidance for specification option: Division panels are attached through hinge/ bracket using aluminium fittings with eccentric adjustment feature. |
Pilasters | 16 mm Solid Grade Laminate.12 mm Solid Grade Laminate.15.52 mm toughened, laminated glass.12.76 mm toughened, laminated glass. |
Doors | 16 mm Solid Grade Laminate.12 mm Solid Grade Laminate.15.52 mm toughened, laminated glass.12.76 mm toughened, laminated glass. |
Lippings | Polished and bull-nosed, with radiuses corners. |
Hardware | Satin anodized aluminium hinges, brackets and fittings. |
Curtains | Not required.Required.Guidance for specification option: Available on request. |
Samples required | Not required.Required.Guidance for specification option: Available on request. |
System accessories | Not required.Wet/ dry dividing fin.Towel rail.DDA handle.Bench seating.Aluminium latch.Hydraulic door closers. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceEurope mix. |
Country of product manufacture | United Kingdom |
Recyclability | Glass, Laminate, Aluminium Manufacturer guidanceMedium. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceSolid Grade Laminate, Aluminium, Glass. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Cloud Cubicles Technical Data
