Ceramic Chimney System For An Internal House
Verified by manufacturer 5 months ago
Ceramic flue lining - 160 mm
Ceramic flue lining - 160 mm
TUV NORD
Certificate type
Ceramic chimney system.
Application
Suitable for an internal house.
Description
Chimney system compromising ceramic rebated liner (160—200 mm), ceramic roll top pots, adaptor from steel to support block and support lintel.
The ceramic range of liners and accessories are a cost effective way of safely adding a chimney into an building development, or adding a chimney to an existing renovation.
Features and benefits:
- Resistant to thermal shock – The liners are extremely durable and have been tested for resistance to soot fire as well as to condensate, and meet the latest CE standards and Construction Products Regulations (CPR).
- Lightweight – Due to advanced manufacturing techniques, Schiedel Chimney Systems have been able to reduce the wall thickness of the liner to produce the optimal lightweight but extremely robust product.
- Smooth inner wall – The smooth inner liner allows gas, the product of combustion to freely exit the chimney. Straight lines ensure a consistent fill of insulation.
General information
Color | Cream Guidance for specification option: Buff. Orange Guidance for specification option: Terracotta. Manufacturer guidanceRoll top pots. |
Finish | Smooth |
Material | Ceramic |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | F30/96 Chimney pots F30/940 Chimney pots |
Specification data - Masonry chimney stack systems
Masonry units | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Mortar | |
Mortar materials | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Dpcs | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Dpc joint sealant | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Wall ties | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Inset open fireplace | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Flue | Ceramic flue lining - 160 mm.Guidance for specification option: 100376. Manufacturer guidanceRebated flue liner. |
Flue copings and cappings | Ceramic chimney pot - 10 kg bluff.Guidance for specification option: 126370.
Ceramic chimney pot - 10 kg terracotta.Guidance for specification option: 126371.
Manufacturer guidanceRoll top pot. |
Ancillary structural components | Support lintel - 1500 x 140 mm.Guidance for specification option: 146431.
Support lintel - 1500 x 215 mm.Guidance for specification option: 146432.
|
System accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Samples required | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Adaptor | 160 mm. Guidance for specification option: 127691. Manufacturer guidanceAdaptor from steel to support block. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | Can be recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications

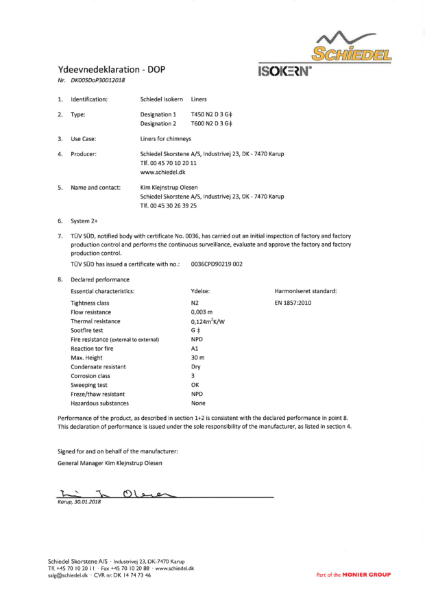

TUV NORD
DOP LINERS 2018 UK

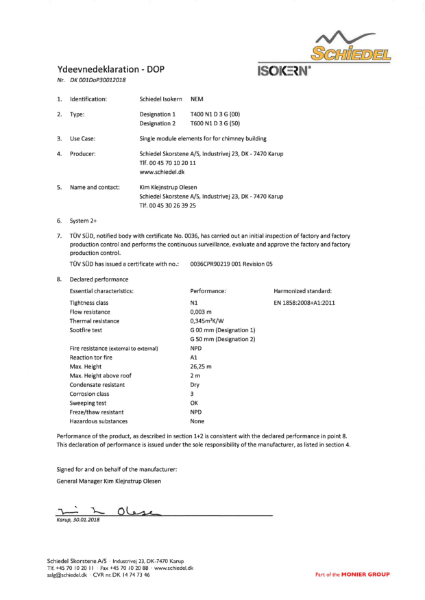

TUV NORD
DOP NEM 2018 UK
Literature

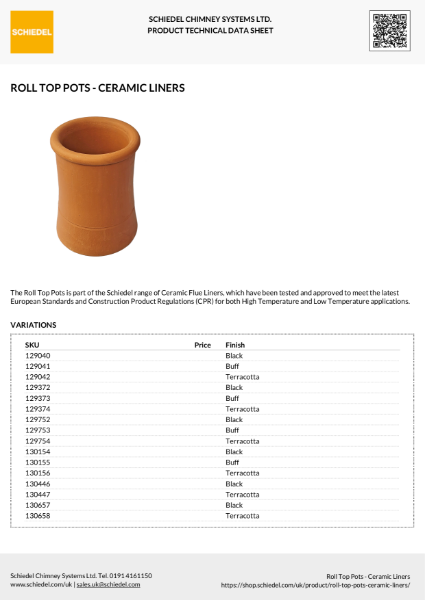

Roll Top Pots
Support Lintel

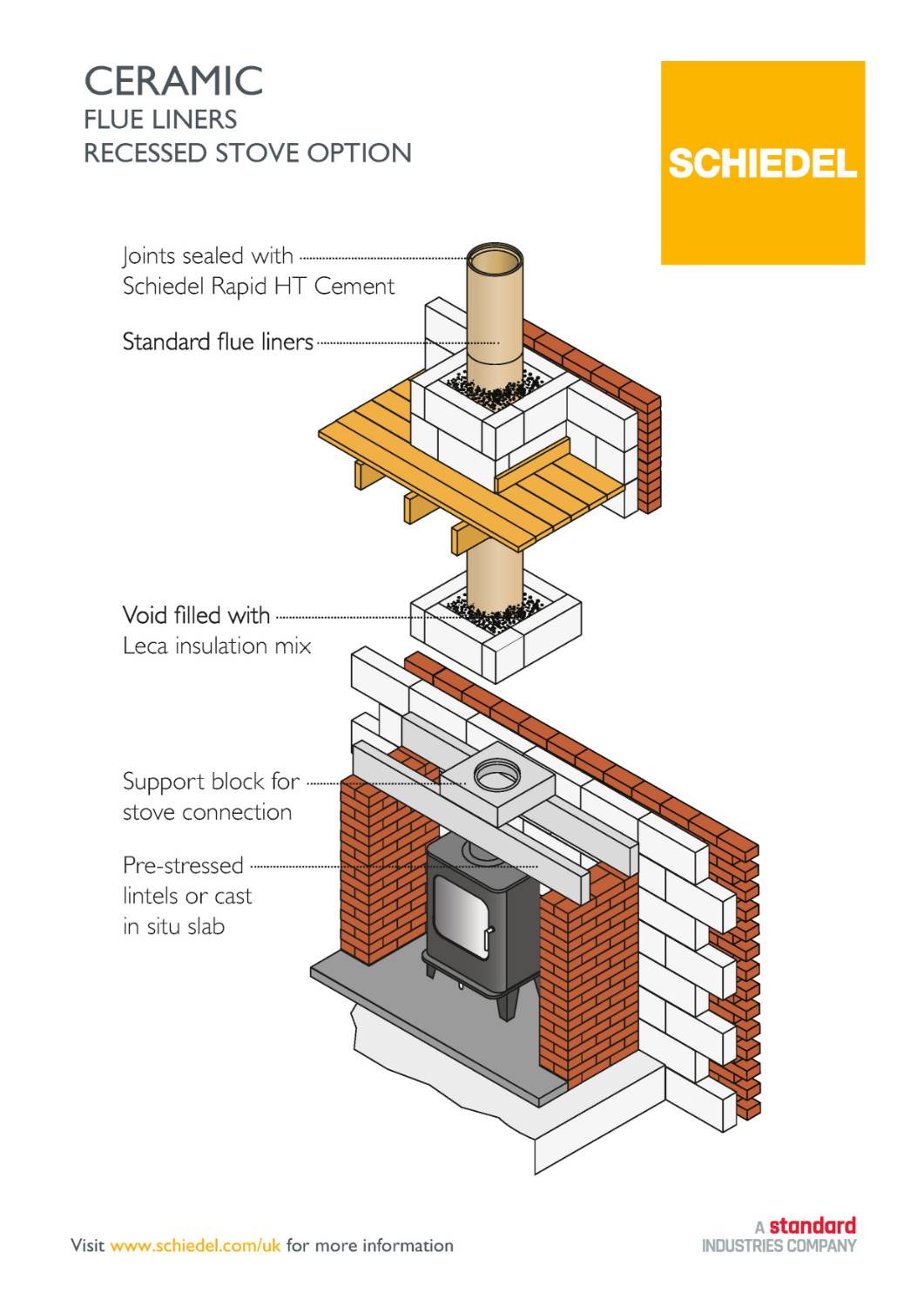

UK Ceramic Flue Liners
Case studies

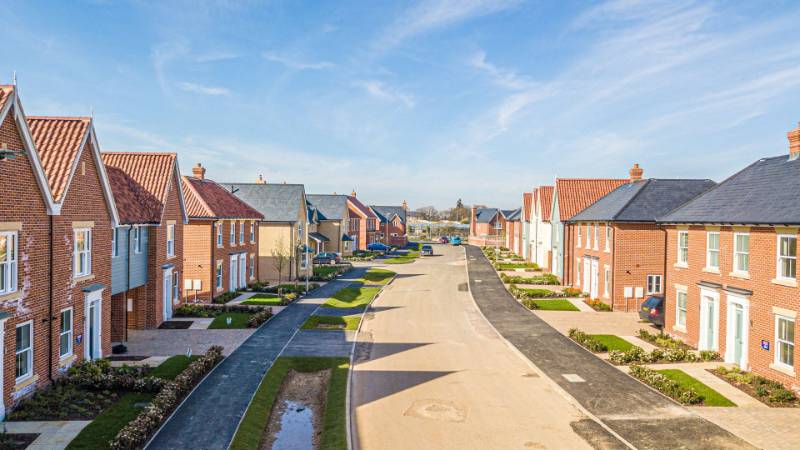

Housing developments reducing the need for gas energy by using wood burning stoves and ceramic flues.
