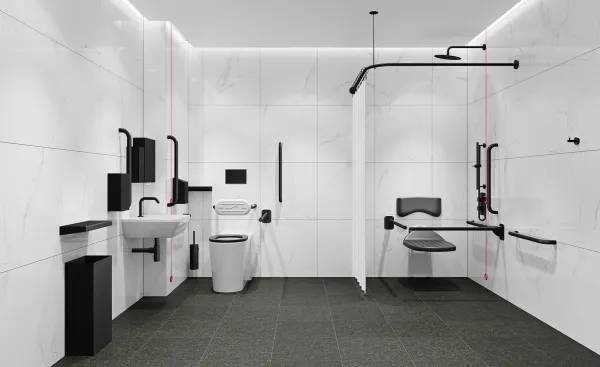

BC5085-CBRC_B Roseless Combined Doc M Pack – Back To Wall Toilet

Verified by manufacturer 4 months ago

Dolphin Solutions

A fully combined shower and back to wall WC set with accompanying accessories.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable for commercial applications.

Description

A fully combined shower and back to wall WC set. An alternative to sourcing individual items and delivered in one package for easy and fast installation.


Features and benefits:

  • Cost effective.
  • Easily accessible.
  • Combines a shower set with a back to wall WC.
  • Accompanying items included.
  • All items co-ordinated in style to achieve a consistent aesthetic.
  • TMV2 mixing valve.
  • Individual items available in a range of finishes and sizes.
  • Compliant with Part M of the Building Regulations.


Complete set includes:

  • Tap (DS213.150.150).
  • TMV3 thermostatic mixing valve (AL0220).
  • Basin (DC1150).
  • Waste trap (DB790-316).
  • Waste grate (DB793S).
  • Toilet tissue dispenser (BC4302).
  • Toilet brush (BC727).
  • Coat hooks (BC725).
  • Soap dispenser (BC238SS).
  • Paper towel dispenser (BC958).
  • Hand dryer (BC2008).
  • Waste bin (BC951).
  • Shelf - 400 mm (BC750).
  • Shelf - 200 mm (BC751).
  • Alarm pull cord (BC5083-121).
  • Grab bar 600 mm (BC5083-02).
  • Grab bar 450 mm (BC5083-01).
  • Drop down hinged support rail (BC5083-06).
  • Back rest (BC5083-07).
  • Concealed cistern (DB5510.P).
  • Flush plate (DB5550.P.1).
  • Toilet pan (DB590).
  • Toilet seat ring - grey contrasting (DB591-GRY).
  • Mirror 1000 x 400 mm (BC5083-101).
  • Shower valve (DB3100).
  • Shower head (DB3001).
  • Shower arm (DB3061.350).
  • Shower outlet (DB3073).
  • Shower hose (DB3041).
  • Hand held shower head (DB3020).
  • Slider rail and holder (DB3090.450).
  • Shower curtain rail (BC5083-11).
  • Shower curtain rail ceiling stay (BC5083-12).
  • Shower curtains (BC5083-14).
  • Shower curtain hooks (BC5083-13).
  • Shower back rest (BC5083-34).
  • Shower seat (BC5083-33).
  • Soap cartridge (HS11.50.72).

General information

Color

Silver

Grey

Black

Finish

Matt

Stainless steel

Satin

Brushed

Powder-coated

Show more

Material

Stainless steel

Shape

Other

Warranty description

Five year

Uniclass

Pr_40_20_60_01 Accessible shower equipment packagesPrimary

CAWS

N13/12 Unisex accessible WC equipment packages (Document M)

N13/311 Unisex accessible WC equipment packages (Document M)

N13/312 Unisex accessible shower room equipment packages (Document M)

N13/14 Unisex accessible shower room equipment packages (Document M)

Specification data - Accessible shower equipment packages

Standard

In accordance with Approved Document M.

Type approval certificate

WRAS approved.

Form

Complete accessible shower Doc M package and fittings.

Material and colour

-

Seat

Plastics, dark grey.

Seat back

Plastics, dark grey.

Shower curtains and rails

Polished stainless steel.

Brushed/ satin stainless steel.

PPC in matt black.

Guidance for specification option:

RAL 9005, 15% sheen.

Manufacturer guidance

Curtain, white polyester.

Handrails

As per shower curtains and rails.

Manufacturer guidance

Consult manufacturer's literature for further details.

Water supply fittings

-

Shower fittings

Thermostatic shower mixer, lever-operated.

Guidance for specification option:

  • TMV2.
  • Two-way diverter.

Finish

Satin.

Chrome.

Manufacturer guidance

Consult manufacturer's literature for further details.

Water supply temperature (maximum)

38–46℃.

Guidance for specification option:

Standard, 43℃.

Flow rate

6 or 9 L/min at 3 bar.

Guidance for specification option:

5 L/min flow regulator available on request.

4 L/min flow regulators available for hand held shower head.

Integral accessories

Tap (DS213.150.150).
TMV3 thermostatic mixing valve (AL0220).
Basin (DC1150).
Waste trap (DB790-316).
Waste grate (DB793S).
Toilet tissue dispenser (BC4302).
Toilet brush (BC727).
Coat hooks (BC725).
Soap dispenser (BC238SS).
Paper towel dispenser (BC958).
Hand dryer (BC2008).
Waste bin (BC951).
Shelf - 400 mm (BC750).
Shelf - 200 mm (BC751).
Alarm pull cord (BC5083-121).
Grab bar 600 mm (BC5083-02).
Grab bar 450 mm (BC5083-01).
Drop down hinged support rail (BC5083-06).
Back rest (BC5083-07).
Concealed cistern (DB5510.P).
Flush plate (DB5550.P.1).
Toilet pan (DB590).
Toilet seat ring - grey contrasting (DB591-GRY).
Mirror 1000 x 400 mm (BC5083-101).
Shower valve (DB3100).
Shower head (DB3001).
Shower arm (DB3061.350).
Shower outlet (DB3073).
Shower hose (DB3041).
Hand held shower head (DB3020).
Slider rail and holder (DB3090.450).
Shower curtain rail (BC5083-11).
Shower curtain rail ceiling stay (BC5083-12).
Shower curtains (BC5083-14).
Shower curtain hooks (BC5083-13).
Shower back rest (BC5083-34).
Shower seat (BC5083-33).
Soap cartridge (HS11.50.72).

Backrest

Black.

White.
