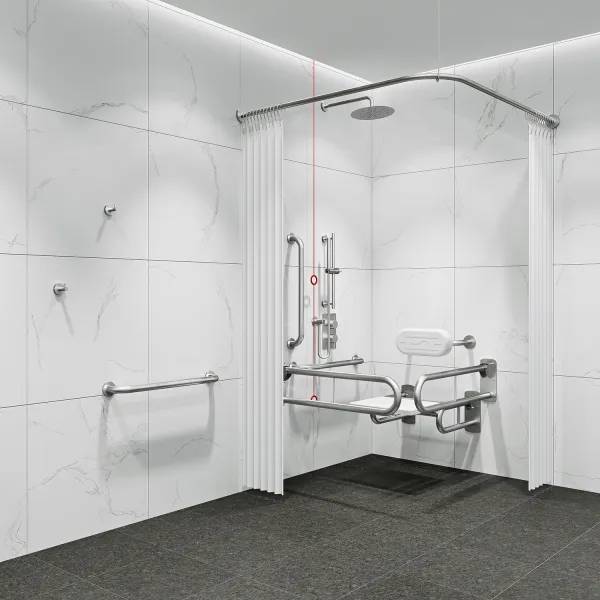

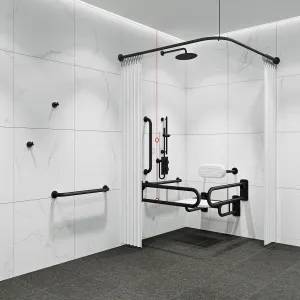

BC5083-SCC_A Dolphin Flanged Doc M Shower Set

Name: BC5083-SCC_A Dolphin Flanged Doc M Shower Set
Brand: Dolphin Solutions
SKU: buogEkamJwpNojKJhd194q

Verified by manufacturer 4 months ago

Dolphin Solutions

A flanged Doc M shower set with accompanying accessories.

Jump to:

+44 (0)1424 202224 Website

Application

Suitable for commercial applications.

Description

A shower set that is an alternative to sourcing individual items and delivered in one package for easy and fast installation.

Features and benefits:

Cost effective.
Easily accessible.
Accompanying items included.
All items co-ordinated in style to achieve a consistent aesthetic.
TMV2 mixing valve.
Individual items available in a range of finishes and sizes.
BREEAM and LEED compliant.
Doc M approved.
Compliant with Part M of the Building Regulations.

Complete set includes:

Shower valve (DB3100).
Shower head (DB3001).
Shower arm (DB3061.350).
Shower outlet (DB3070).
Shower hose (DB3041).
Hand held shower head (DB3020).
Slider rail and holder (DB3090.450).
Shower curtain rail (BC5083-11).
Shower rail ceiling stay (BC5083-12).
Shower curtains (BC5083-14).
Shower curtain hooks (BC5083-13).
Grab rail - 600 mm (BC5083-02).
Grab rail - 500 mm (BC5083-01).
Hinged drop down rail (BC5084-06).
Back rest (BC5083-37).
Shower seat (BC5083-10).
Alarm pull cord (BC5083-121).
Robe hooks (BC725).
Mirror - 1000 x 400 x 1 mm (BC5083-101).

General information

Color	Black Grey Silver Blue
Finish	Matt Polished Satin Brushed Powder-coated Chrome Show more
Material	Stainless steel Ceramic
Shape	Other
Warranty description	Five year

Uniclass	Pr_40_20_60_01 Accessible shower equipment packagesPrimary
CAWS	N13/14 Unisex accessible shower room equipment packages (Document M) N13/312 Unisex accessible shower room equipment packages (Document M)

Specification data - Accessible shower equipment packages

Standard	In accordance with Approved Document M.
Type approval certificate	WRAS approved, KIWA approved.
Form	Complete accessible shower Doc M package and fittings.
Material and colour	-
Seat	Black. White.
Seat back	Blue. White.
Shower curtains and rails	Polished stainless steel. Brushed/ satin stainless steel. PPC in matt black. Guidance for specification option: RAL 9005, 15% sheen. Ceramic. Manufacturer guidance Curtain, white polyester.
Handrails	As per shower curtains and rails. Manufacturer guidance Consult manufacturer's literature for further details.
Water supply fittings	-
Shower fittings	Thermostatic shower mixer, lever-operated. Guidance for specification option: TMV2. Two-way diverter.
Finish	Satin. Chrome.
Water supply temperature (maximum)	User-controlled.
Flow rate	6 or 9 L/min at 3 bar. Guidance for specification option: 5 L/min flow regulator available on request. 4 L/min flow regulators available for hand held shower head.
Integral accessories	Shower valve (DB3100). Shower head (DB3001). Shower arm (DB3061.350). Shower outlet (DB3070). Shower hose (DB3041). Hand held shower head (DB3020). Slider rail and holder (DB3090.450). Shower curtain rail (BC5083-11). Shower rail ceiling stay (BC5083-12). Shower curtains (BC5083-14). Shower curtain hooks (BC5083-13). Grab rail - 600 mm (BC5083-02). Grab rail - 500 mm (BC5083-01). Hinged drop down rail (BC5084-06). Back rest (BC5083-37). Shower seat (BC5083-10). Alarm pull cord (BC5083-121). Robe hooks (BC725). Mirror - 1000 x 400 x 1 mm (BC5083-101).
