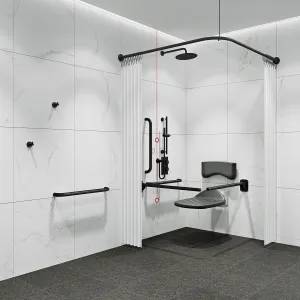

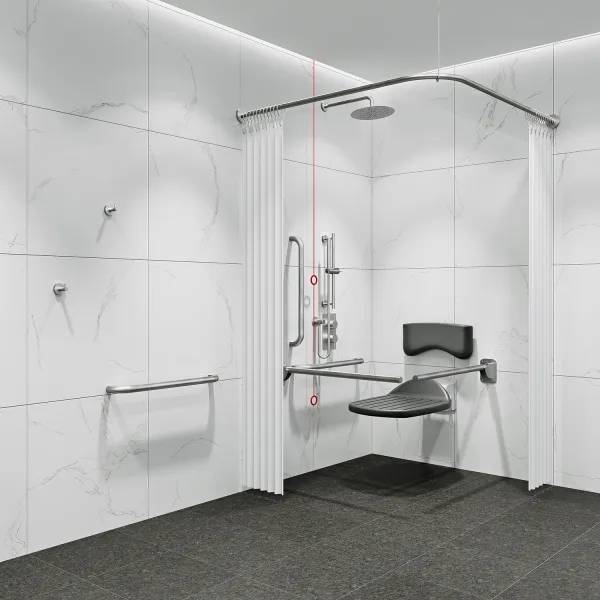

BC5063-SHC_A Dolphin Roseless Doc M Shower Set - Concealed
Verified by manufacturer 4 months ago
A Doc M shower set with accompanying accessories.
Application
Suitable for commercial applications.
Description
A concealed Doc M shower set that is an alternative to sourcing individual items and delivered in one package for easy and fast installation.
Features and benefits:
- Cost effective.
- Easily accessible.
- Accompanying items included.
- All items co-ordinated in style to achieve a consistent aesthetic.
- TMV2 mixing valve.
- Individual items available in a range of finishes and sizes.
- BREEAM and LEED compliant.
- Doc M approved.
- Compliant with Part M of the Building Regulations.
Complete set includes:
- Shower valve (DB3100).
- Shower head (DB3001).
- Shower arm (DB3061.350).
- Shower outlet (DB3073).
- Shower hose (DB3041).
- Hand held shower head (DB3020).
- Slider rail and holder (DB3090.450).
- Shower curtain rail (BC5083-11).
- Shower rail ceiling stay (BC5083-12).
- Shower curtains (BC5083-14).
- Shower curtain hooks (BC5083-13).
- Grab rail - 600 mm (BC5063-02).
- Grab rail - 450 mm (BC5063-01).
- Hinged drop down rail (BC5023-07).
- Back rest (BC5083-34).
- Shower seat (BC5083-33).
- Alarm pull cord (BC5083-121).
- Robe hooks (BC725).
- Mirror - 1000 x 400 x 1 mm (BC5083-101).
General information
Color | Silver Grey Black |
Finish | Matt Stainless steel Satin Brushed Powder-coated |
Material | Stainless steel Ceramic |
Shape | Other |
Warranty description | Five year |
Uniclass | |
CAWS | N13/14 Unisex accessible shower room equipment packages (Document M) N13/312 Unisex accessible shower room equipment packages (Document M) |
Specification data - Accessible shower equipment packages
Standard | In accordance with Approved Document M. |
Type approval certificate | WRAS approved, KIWA approved. |
Form | Complete accessible shower Doc M package and fittings. |
Material and colour | |
Seat | Plastics, dark grey. |
Seat back | Plastics, dark grey. |
Shower curtains and rails | Polished stainless steel.Brushed/ satin stainless steel.PPC in matt black.Ceramic.Manufacturer guidanceCurtain, white polyester. |
Handrails | As per shower curtains and rails.Manufacturer guidanceConsult manufacturer's literature for further details. |
Water supply fittings | |
Shower fittings | Thermostatic shower mixer, lever-operated.Guidance for specification option:
|
Finish | Satin.Chrome.Manufacturer guidanceConsult manufacturer's literature for further details. |
Water supply temperature (maximum) | User-controlled. |
Flow rate | 6 or 9 L/min at 3 bar.Guidance for specification option: 5 L/min flow regulator available on request. 4 L/min flow regulators available for hand held shower head. |
Integral accessories | Shower valve (DB3100). |
Similar products from Dolphin Solutions
BC5063-SHE Roseless Doc M Shower Set – Exposed

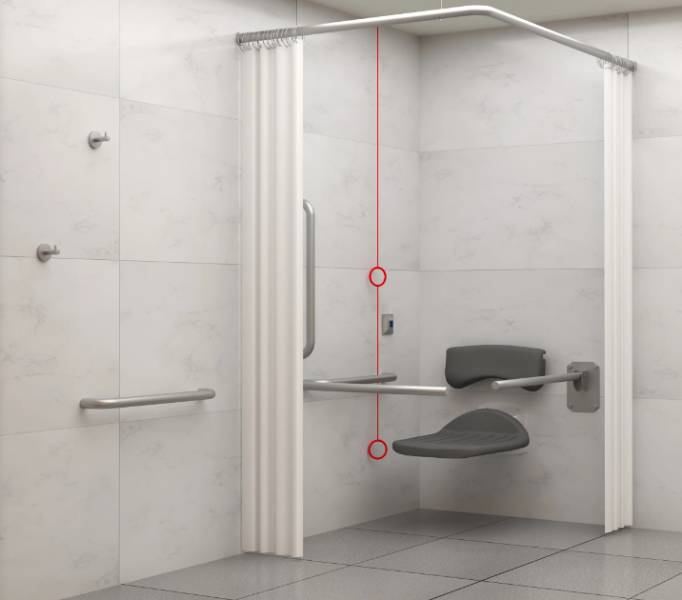

BC5063-SHV Roseless Doc M Shower Set – Valveless

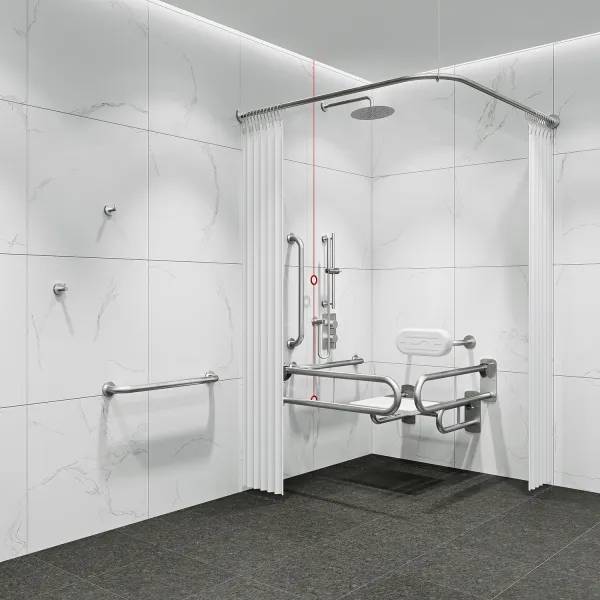

BC5083-SCC_A Dolphin Flanged Doc M Shower Set

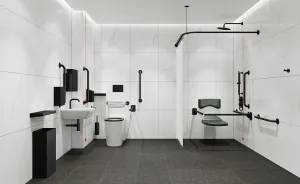

BC5085-CBFC_B Flanged Combined Shower Pack - Back To Wall Toilet

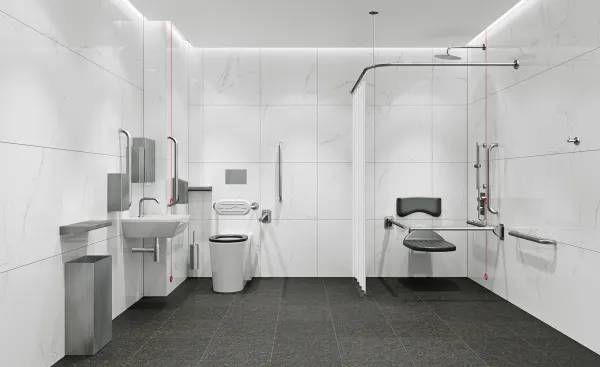

BC5085-CBRC_B Roseless Combined Doc M Pack – Back To Wall Toilet

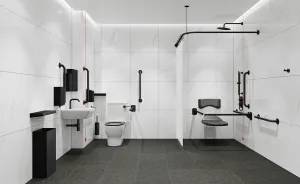

BC5085-CCFC_B Flanged Combined Shower Pack – Close Coupled Toilet
