BBA/ HAPAS Accredited MBM60 Manhole Bedding Mortar

Verified by manufacturer 7 days ago

Larsen Building Products Product certifications:
  • Renewable Obligation Certificate (ROC)

    Certificate type

  • BBA HAPAS Certification

    BBA HAPAS Certification

    Certificate type

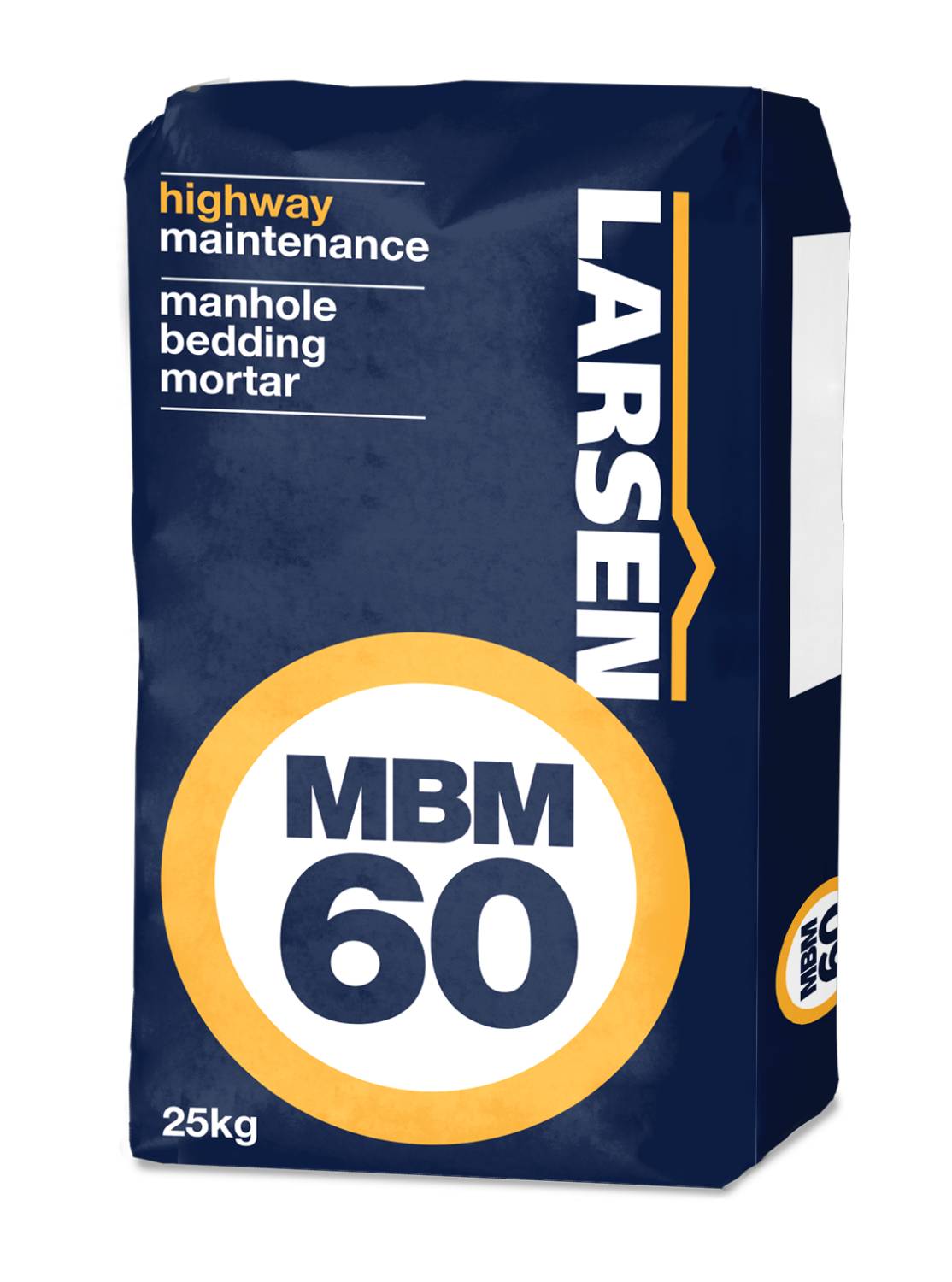

Larsen Highways MBM 60 is a BBA/ HAPAS approved single component, rapid setting cementitious mortar for the bedding of street and highway ironwork conforming to BS EN 124 standards.

Jump to:
+44 (0)28 9077 4000 Website

Application

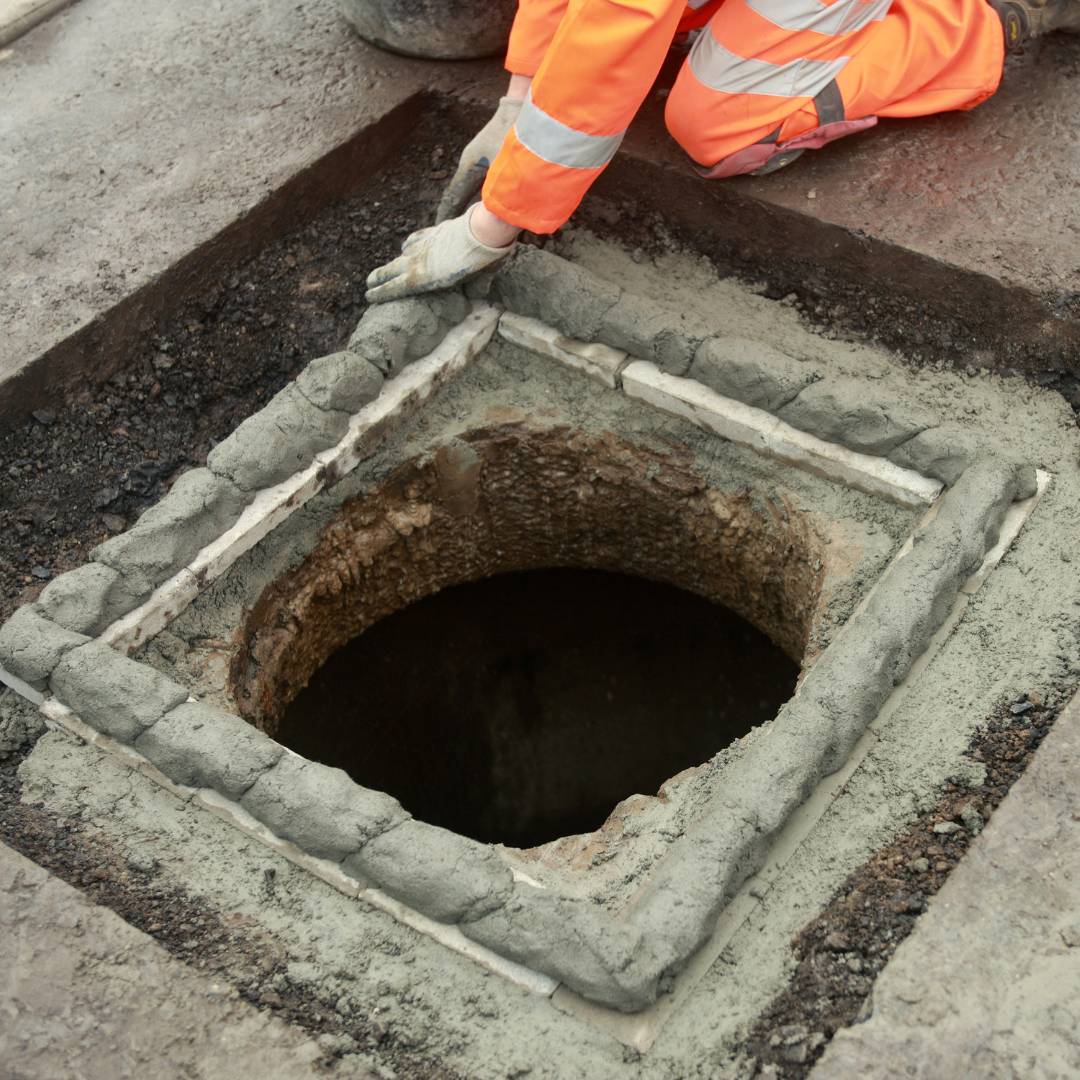

Highways MBM 60 can be applied in a bed of 10–75 mm in a single pass and should be placed typically within 5 minutes of mixing to allow time for adjustment. Typically place a bed of 5–10 mm thicker than required to allow for adjustments. The frame should be placed onto the mortar bed without voids. Tamp the frame in place to achieve the required level. Any exposed mortar should be smoothly finished by float. Backfilling and resurfacing can typically commence after 30–45 minutes. Freshly laid areas should be protected from vehicle traffic for a minimum of 60min dependent on temperature and site conditions.

Description

Larsen Highways MBM 60 is a BBA/ HAPAS approved single component, rapid setting cementitious mortar for the bedding of street and highway ironwork conforming to BS EN 124 standards.

It is manufactured from a controlled blend of specially selected aggregates, cements, and additives and only requires the addition of water to produce a high quality bedding layer which can be trafficked after one hour. MBM 60 is ideal for the rapid installation of Highway and residential manhole cover frames and similar ironwork drainage components and for the rapid installation of paving sets and flags and kerbs.

Meets the requirements for compressive strength in accordance with the MCHW, volume 1, series 500, clause 507 chambers, 44.

Features and benefits:

  • BBA/ HAPAS accredited as a stand alone product.
  • 20 MPa at 1 hour.
  • Over 60 MPa after 28 days.
  • 10–75 mm bed depth in one pass.
  • Low shrinkage.
  • Frost resistant.
  • Open to traffic after 1 hour.
  • 25 kg bag will cover 1 m² at 12.5 mm.

General information

Color

Grey

Finish

Smooth

Material

Cementitious

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_31_16_29 Fine bedding concretesPrimary

CAWS

M40/32 Mortar bedding

M40/570 Mortar bedding

SKU Code

MBM60

Specification data - Fine bedding concretes

Classification data

Standard/ performance requirements

BBA/ HAPAS approved.

Consistency

Pre-blended dry powder.

WaterContent

3.0–3.5 L per 25 kg bag.

Materials

Cementitious.

Typical compressive strength

>60 MPa.

Guidance for specification option:

After 28 days at 20°C.

Working time

15–20 minutes.

Characteristics

Granular, 3 mm aggregate cement mix, grey.

Adhesive strength designation

>5 MPa.

Guidance for specification option:

After 28 days. 2 MPa after 1 hour.

Bed height

10–75 mm.

Yield - Concrete

1 m² at 12 .5 mm per 25 kg.

Cure time

20–25 minutes.

Dry density

2200 kg/m³.

Shrinkage

<0.1%.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Cementitious

Recyclability

Recyclable

Product certifications

Product certifications

Renewable Obligation Certificate (ROC)

Renewable Obligation Certificate (ROC)

Green Energy Certificate

BBA HAPAS Certification

BBA HAPAS Certification

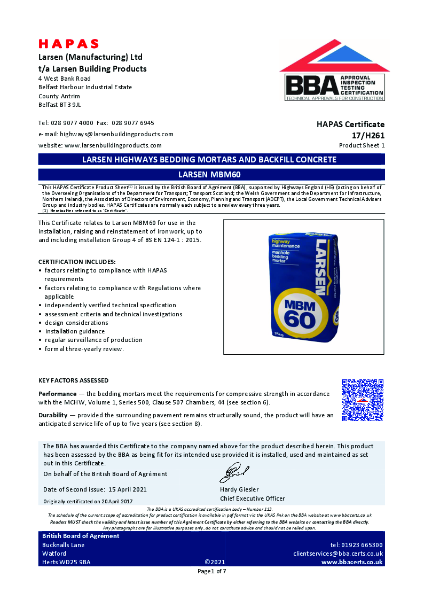

BBA / HAPAS Certificate for Larsen Highways MBM60
