BBA/ HAPAS Accredited MBM534 Manhole Bedding Mortar

Verified by manufacturer 7 days ago

Larsen Building Products Product certifications:
  • Renewable Obligation Certificate (ROC)

    Certificate type

Larsen Highways MBM 534 is a BBA/ HAPAS approved two-component, high performance bedding mortar with the benefits of a resin based mortar with the ease of use associated with cement based mortars.

Jump to:
+44 (0)28 9077 4000 Website

Application

MBM 534 is suitable for use as a bedding mortar. All works should be carried out in line with advice laid out in the relevant sections of the Design Manual for Roads and Bridges.

Description

Larsen Highways MBM 534 is a BBA/ HAPAS approved two-component, high performance bedding mortar providing all the benefits of a resin based mortar with the ease of use associated with cement based mortars.

It is suitable for use in the installation, raising and reinstatement of ironwork, up to and including installation Group 4 of BS EN 124 where rapid trafficking is required and has exceptional performance in wet weather conditions.

Features and benefits:

  • Open to traffic in 60 minutes.
  • Two hour compressive strength >20 MPa.
  • Three hour compressive strength >30 MPa.
  • Three hour tensile strength >5 MPa.
  • 10–50 mm bed depth in one pass.
  • Non-shrink and frost resistant.
  • CD534 compliant.

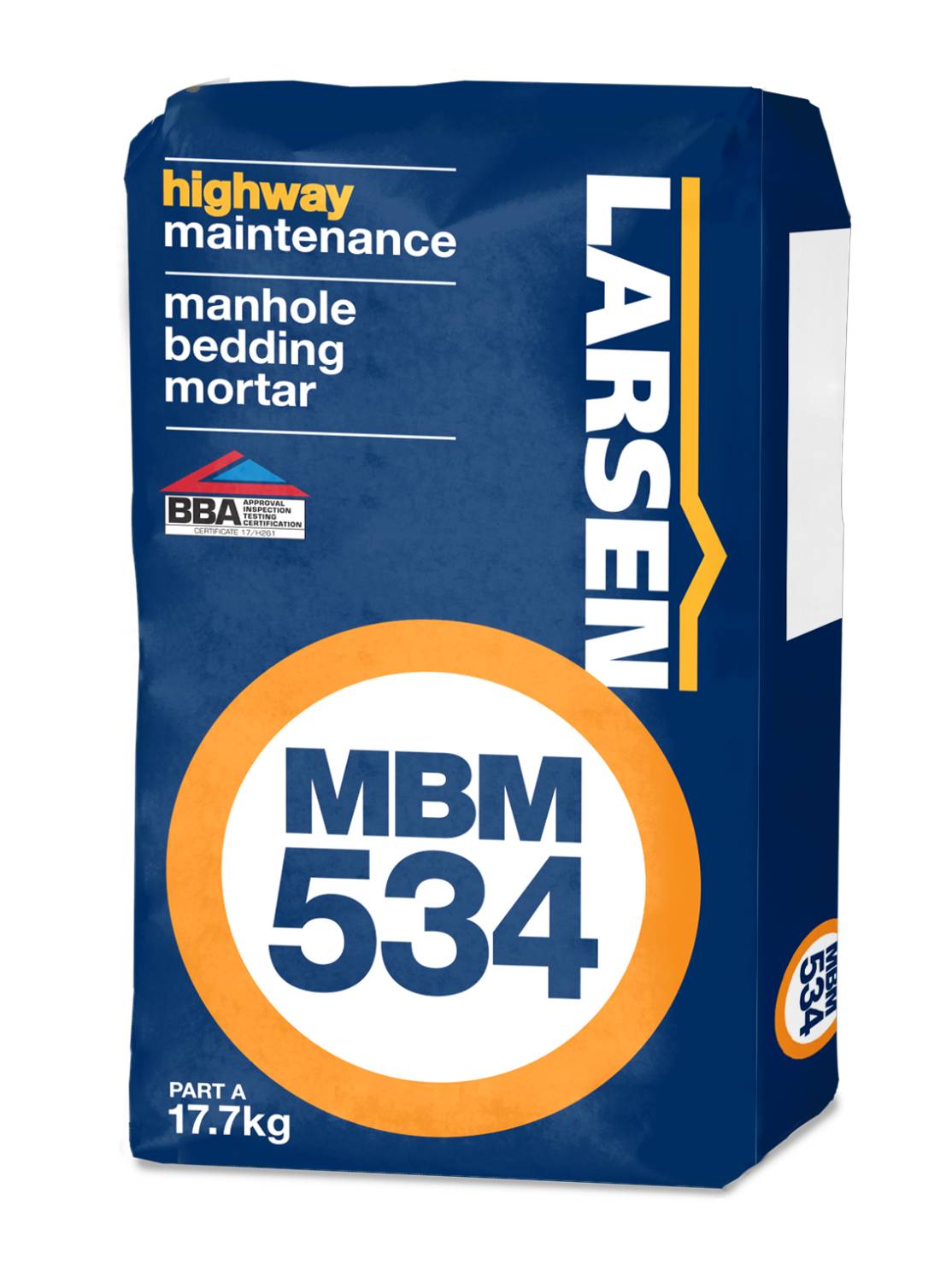

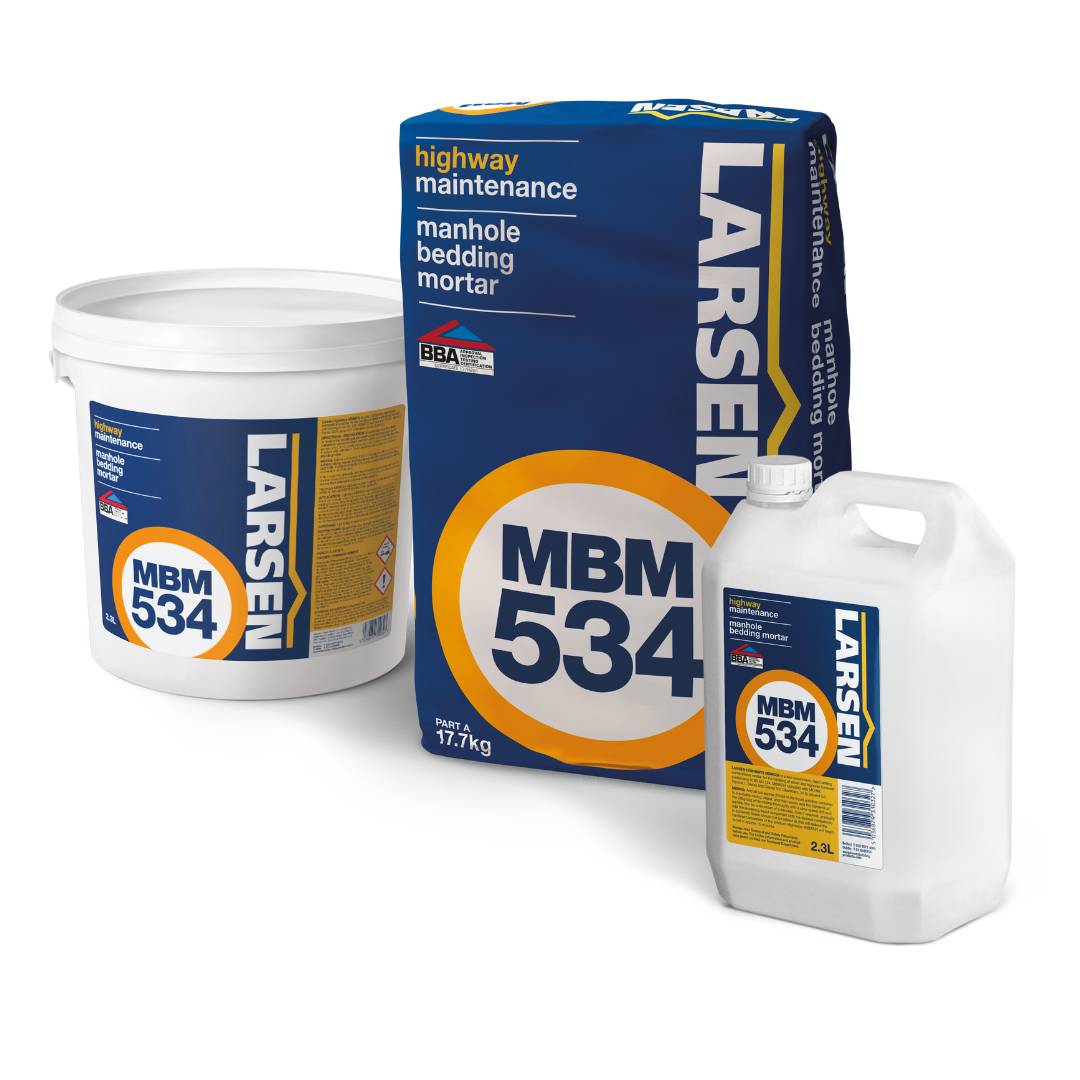

  • 17.7 kg bag and 2.3 L bottle.
  • 1 bag (17.7 kg) will cover approximately 1 m² at 10 mm.

General information

Color

Grey

Finish

Smooth

Material

Cementitious

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_20_31_16_29 Fine bedding concretesPrimary

CAWS

M40/32 Mortar bedding

M40/570 Mortar bedding

SKU Code

MBM534

Specification data - Fine bedding concretes

Classification data

Standard/ performance requirements

BBA/ HAPAS approved.

Guidance for specification option:

Complies with:

  • MCHW, volume 1, series 500, clause 507 chambers, 44.
  • MCHW, volume 1, series 500 clause 507 chambers, 24 (i), (iii) and (iv)

Consistency

Pre-blended dry powder.

WaterContent

2.3 L per 17.7 kg bag.

Materials

Cementitious.

Typical compressive strength

65 MPa.

Guidance for specification option:

Typical results tested after storage at 20°C for 28 days of curing.

Working time

15 minutes.

Characteristics

Granular, grey.

Adhesion strength

>3 MPa to concrete.

Application temperature

+1°C to +30°C.

Bed height

10–50 mm.

Yield - Concrete

1 m² per bag (17.7 kg).

Cure time

20–25 minutes.

Dry density

2200 kg/m³.

Shrinkage

<0.1%.

Flexural strength

12 MPa.

Guidance for specification option:

Typical results tested after storage at 20°C for 28 days of curing.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Cementitious

Recyclability

Recyclable

Product certifications

Product certifications

Renewable Obligation Certificate (ROC)

Renewable Obligation Certificate (ROC)

Green Energy Certificate
