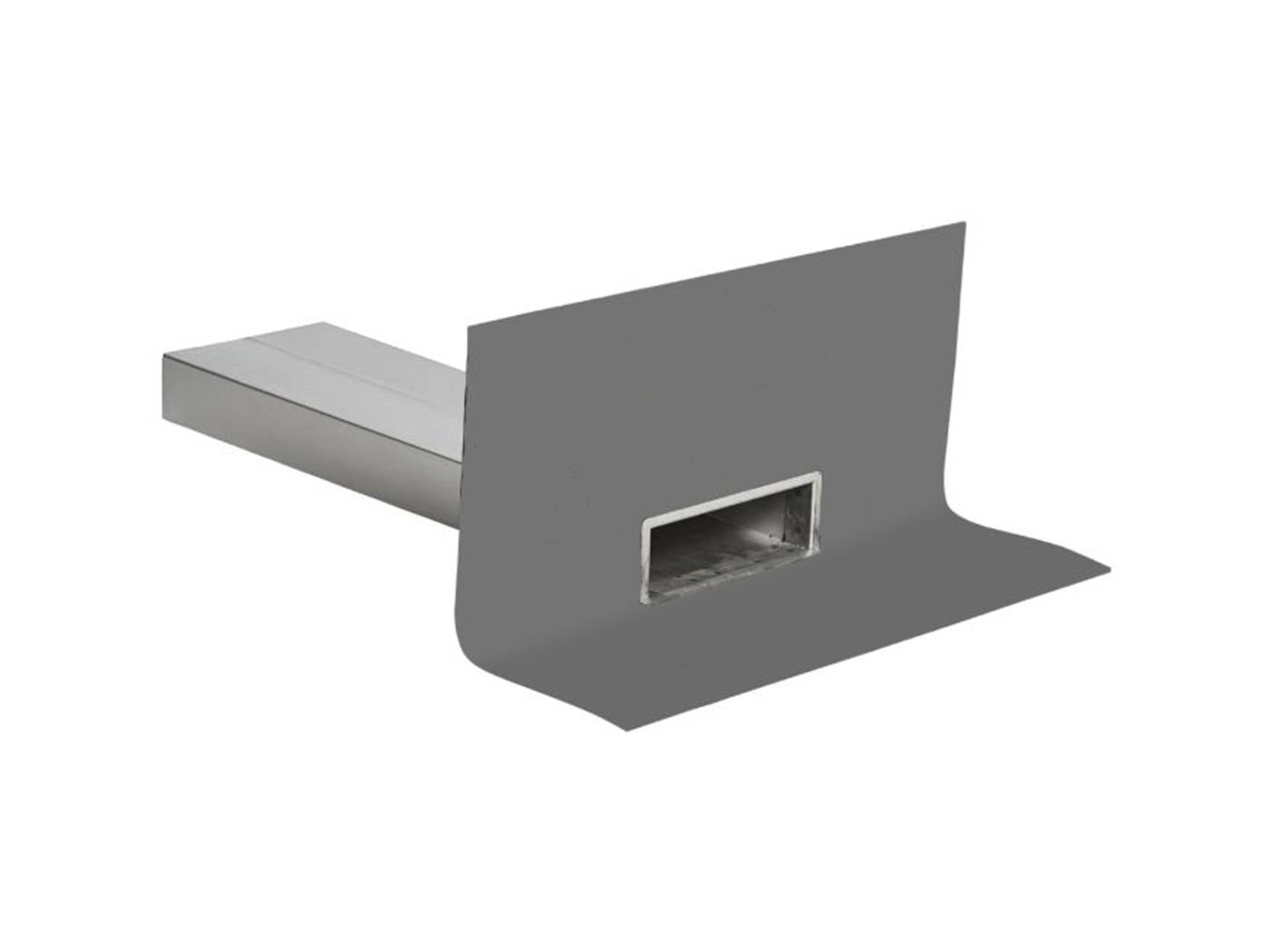

BauderTHERMOFOL PVC Letterbox Parapet Outlet DN205

Verified by manufacturer 7 days ago

Bauder Ltd

A high flow rate PVC parapet outlet for roof drainage systems.

Jump to:
+44 (0)1473 257671 Website

Application

Specifically designed for use in through wall applications or parapets. Suitable for use in new build or refurbishment applications.

Description

A high flow rate (compared to a circular parapet chute) PVC parapet outlet for roof drainage systems. Factory-bonded membrane flange attached to the outlet allows for easy installation.

  • Base plate: 330 (width) x 125 (vertical) x 60 (horizontal) mm.
  • Aperture: 205 (width) x 65 (height) mm.
  • PVC membrane flange: 425 (width) x 175 (vertical) x 100 (horizontal) mm.
  • PVC membrane flange thickness: 1.5 mm

General information

Color

Grey

Finish

Smooth

Material

PVC

Stainless steel

Shape

Rectangle

Length

125 mm

Width

330 mm

Height

60 mm

Warranty description

-

Manufacturer guidance

A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass

Pr_65_50_35_37 Gravity rainwater outletsPrimary

CAWS

R10/26 Proprietary rainwater outlets

R10/365 Proprietary rainwater outlets

SKU Code

GB14120320

Specification data - Gravity rainwater outlets

Classification data

Material

Stainless steel/ PVC.

Grating

S/S Leaf guard.

Spigots

600 mm.

Manufacturer guidance

External diameter of spigot: 215 (width) x 70 (height) mm.

Flow rate

2.02 L/s.

Sustainability data

Country of product manufacture

Germany

Material

PVC
Stainless steel

Literature

BauderTHERMOFOL PVC Letterbox parapet outlet DN 205 including ss leaf guard

BauderTHERMOFOL PVC Letterbox parapet outlet DN 205 including ss leaf guard
