BASWA Phon Base

Third party certifications:

QA Certificate
Certificate type

Seamless acoustic lining system with single layer marble surface; 0.7 mm grain size.

Jump to:

Application

Horizontal, inclined, vertical or curved surfaces.

Seamless, straight surfaces up to areas of 500 m² on concrete and 100 m² on plasterboard; suspended systems; observe specifications of the gypsum industry.

Simple vaulted surfaces.

Double vaults, arches and domes.

Surfaces with sidelight situations.

Description

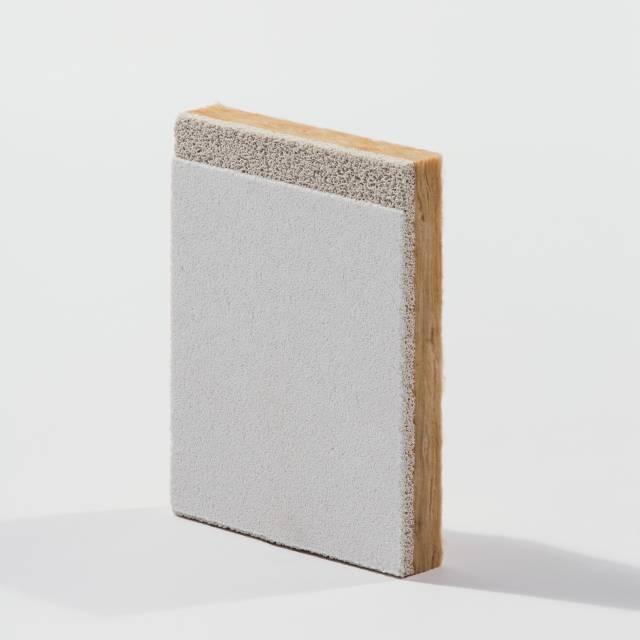

Smooth, seamless acoustic system for reducing reverberation time May be used on vertical, horizontal, inclined or curved surfaces. It consists of two primary elements: pre-coated mineral fibre panels (BASWA Phon) adhered to a stable, airtight substrate such as gypsum board or concrete; and a single layer of micro-porous granular marble render surface coating (BASWA Base).

Features and benefits:

Excellent broadband sound absorption.

Minimal installation height.

Natural marble finish.

Smooth, seamless surface.

Comprehensive colour selection (BASWA Colours, NCS, RAL, etc.)

Full airflow management and airtight system to prevent localised accumulation of airborne particles.

Matched porosity of all sub surface elements (BASWA Phon Pre-coat & BASWA Phon Fill joint filler) to prevent latent appearance and discolouration of joints, installation platforms and non-acoustic areas.

Full maintenance, cleaning and repair solutions available (BASWA Clean, BASWA Blonde, BASWA Fresh etc.)

Installation only by BASWA certified operatives.

Non-flammable (A2-s1, d0) according to BS EN 13501-1.

CE certified/ ETA-No:16/ 0144 (CSTB).

0% VOC's.

Up to 95% recycled material.

Applications:

Horizontal, inclined, vertical or curved surfaces.

Seamless, straight surfaces up to areas of 500 m² on concrete and 100 m² on plasterboard; suspended systems; observe specifications of the gypsum industry.

Simple vaulted surfaces.

Double vaults, arches and domes.

Surfaces with sidelight situations.

Components:

BASWA Fix C cementitious adhesive mortar or BASWA Fix K gypsum adhesive mortar.

BASWA Phon acoustic panel.

BASWA Base final layer.

General information

Uniclass 2015	Ss_25_25_75_05 Acoustic panel lining systemsPrimary

Specification data - Acoustic panel lining systems

Product Reference	BASWA Phon Base
Thickness	30 mm Weight: 7.06 kg/m², U-value: 1.47 W/m²K, λ Lambda-value: 0.044 W/mK, R-value: 0.68 m²K/W. 40 mm Weight: 8.06 kg/m², U-value: 1.04 W/m²K, λ Lambda-value: 0.041 W/mK, R-value: 0.96 m²K/W. 50 mm Weight: 9.06 kg/m², U-value: 0.8 W/m²K, λ Lambda-value: 0.04 W/mK, R-value: 1.25 m²K/W. 70 mm Weight: 10.06 kg/m², U-value: 0.55 W/m²K, λ Lambda-value: 0.038 W/mK, R-value: 1.82 m²K/W.
Panel adhesive	BASWA Fix C For cementitious-based substrates. BASWA Fix K For plasterboard or Fermacell substrates.
BASWA Base colour	NCS S 0500-N Standard, white. Special order Insert BASWA Colour (BC), NCS or RAL colour requirement.
Accessories	Insert requirement; contact manufacturer for information.

Standard product features	BASWA Phon: Material: Glass wool board (pressure and tension-resistant) with a 6 mm open pore pre-coating, constructed from recycled glass granulate (Poraver), organically combined. Size: 600 x 800 mm. BASWA Base: Material: Marble sand plaster containing acrylic non-water-soluble binder (solvent-free). Grain size: 0.7 mm. Drying time (at 20°C/ 50% RH): 60 hours (approximate).
Product Options	Panel adhesive: - BASWA Fix C: Material: Portland cement, calcitic aggregates and mating admixtures. Colour: Cement grey. - BASWA Fix K: Material: Plaster, calcium carbonate, resin and different reagent. Colour: White/ beige. Drying time (at 20°C/ 50% RH): Hard: 1–1.5 hours; dry: 24 hours.

Literature

Smooth acoustic plaster ceiling - BASWA Phon Base

Third party certifications

CE certified : ETA-No:16/ 0144 (CSTB)

BASWA Phon Base

BASWA Phon Base

30 mm

40 mm

50 mm

70 mm

BASWA Fix C

BASWA Fix K

NCS S 0500-N

Special order

Panel adhesive: - BASWA Fix C:Material: Portland cement, calcitic aggregates and mating admixtures.Colour: Cement grey.- BASWA Fix K:Material: Plaster, calcium carbonate, resin and different reagent.Colour: White/ beige.Drying time (at 20°C/ 50% RH): Hard: 1–1.5 hours; dry: 24 hours.

Panel adhesive:
- BASWA Fix C:
Material: Portland cement, calcitic aggregates and mating admixtures.
Colour: Cement grey.
- BASWA Fix K:
Material: Plaster, calcium carbonate, resin and different reagent.
Colour: White/ beige.
Drying time (at 20°C/ 50% RH): Hard: 1–1.5 hours; dry: 24 hours.
