BASWA Core - thermally conductive acoustic plaster system (TABS) - Acoustic plaster
Verified by manufacturer 3 months ago
BASWA Core Classic Base 30 mm
BASWA Core Classic Base 30 mm

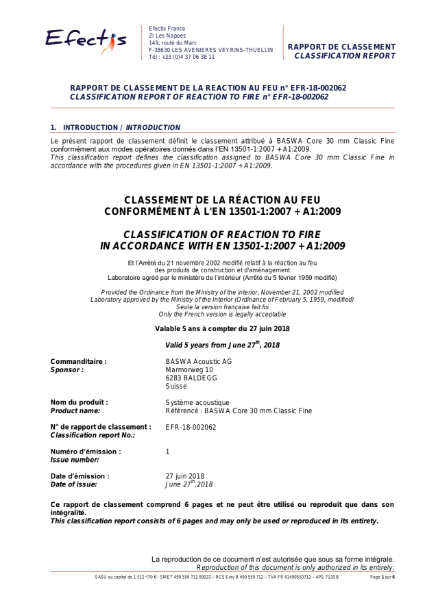

BS EN 13501-1
Certificate type
Thermalkly conductive acoustic solution for TABS soffits
Application
Designed for buildings which require high acoustic performance in the private or public sector. Suitable for restaurants, hotels, cultural or educational institutions, private homes, commercial offices, spa or wellness facilities and heritage or conservation indoor environments. Suitable for applications in grazing lights.
This system is installed exclusively with activated concrete surfaces. In these applications, BASWA Core can either be installed in the concrete ceiling of the building’s shell (inlay) or can be mounted to an existing ceiling retroactively during the interior build-out phase.
Description
BASWA Core is a combined thermally conductive and seamless acoustic absorption system used for thermally active concrete soffits and surfaces.
Where acoustic systems would normally insulate, energy generated from the thermoactive surface is conducted into the room by the high performance sound-absorbing BASWA Core system.
Consequently, the storage capacity of thermoactive concrete systems is efficiently used for heating and cooling the building, and the reverberation time is also controlled.
Features and benefits:
- Excellent broadband sound absorption.
- Excellent thermal transmission for TABs.
- Heating: max. 80 % (with 70 % occupancy of the surface), Cooling: max 74 % (with 70 % occupancy of the surface).
- Smooth, seamless surface.
- Glass fibre board (pressure and tension-resistant) with a 6 mm open pore pre-coating, constructed from recycled glass granulate (Poraver) organically combined.
General information
Color | White Other |
Finish | Smooth |
Material | Glass Fibre |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | 30 mm |
Warranty description | Five year |
Uniclass |
Product range |
Specification data - Acoustic panel lining systems
Panelling | |
Type | Multilayered BASWA Phon passive thermal-acoustic panel. |
Surface material | Glass fibre board (pressure and tension-resistant) with a 6 mm open pore pre-coating, constructed from recycled glass granulate (Poraver) organically combined. |
Surface finish | Smooth and seamless. |
Fasteners | Two fasteners per panel. Five fasteners per m^2 concrete screws or a suitable bolt-firing tool. |
Samples required | Not required.Required.Guidance for specification option: Insert requirement; contact manufacturer for information. Manufacturer guidanceQM/QC check and colour matching process. |
Fire rating (to BS EN 13501) | A2; S1-d0. |
Sound absorption | αw = 0.60 (class C). Manufacturer guidanceISO 11654 |
Thickness | 30 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Recyclability | Aluminium thermal conductor may be recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 94 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Literature
System Datasheet for BASWA Core

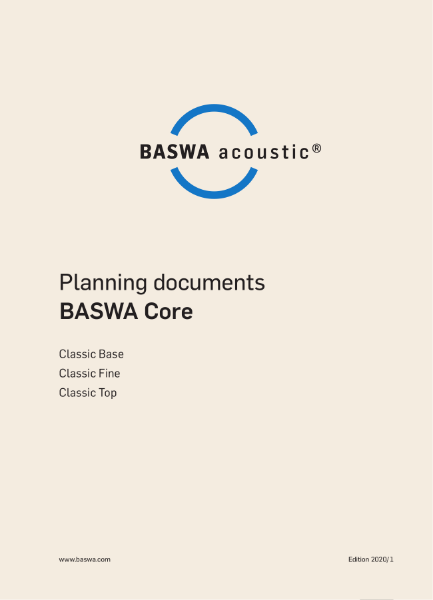

BASWA Core planning document
