BASWA Cool Base – 30 mm

BASWA acoustic AG Variant:

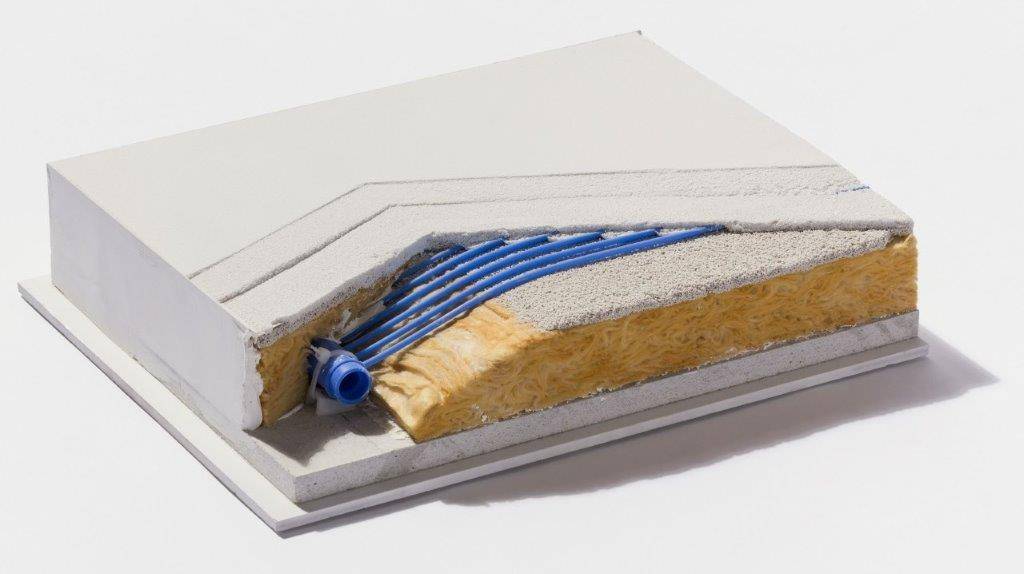

Active thermal-acoustic lining for high performance sound absorption, with integrated radiant heating and cooling and a seamless finish.

Jump to:
BOS
 +44 (0)777 334 2181 Website

Application

  • Can be installed directly to concrete ceilings or suspended ceiling systems (plasterboard).
  • Horizontal, sloped or vertical surfaces.
  • Seamless, even surfaces up to areas of 500 m² on concrete and 100 m² on plasterboard, suspended systems.
  • Shallow vaulted surfaces.
  • Suitable for use in commercial and industrial buildings and most public areas.

Description

Thermal-acoustic lining system which reduces the reverberation time in ceilings and wall surfaces and controls the temperature of a room. It uses an embedded capillary pipe system to provide efficient radiant heating and cooling.


Features and benefits:

  • Broadband sound absorption up to αw 0.65/ Class C.
  • Cooling capacity at Δt = 8 K: 79 W/m² (to BS EN 14240).
  • Heating capacity at Δt = 15 K: 117 W/m² (to BS EN 14037-2).
  • Minimal installation height.
  • Smooth, seamless surface.
  • Full airflow management and airtight system to prevent localized accumulation of airborne particles.
  • Full maintenance, cleaning and repair solutions available (BASWA Clean, BASWA Blonde, BASWA Fresh etc.).
  • Installation only by BASWA certified operatives.
  • Building material flame-retardant Class B-s1, d0 according to BS EN 13501-1.
  • CE certified/ ETA-No:16/ 0144 (CSTB).
  • Large space water transporting capillary pipe mats are installed close to the surface.
  • Require minimum space and energy.
  • Provide draft-free and noiseless room temperature control, paired with sound absorption.
  • Delivers heating and cooling efficiency due to the small amount of acoustic rendering coverings and the surface proximate installation, as well as the heat conductivity of the mineral-based acoustic stucco.
  • Minimum system thickness of 30mm.
  • Unlimited choice of colours (RAL, NCS, etc.).
  • Can be used in Minergie Eco projects.
  • VOC: Indoor Air Comfort Gold label.
  • Suitable for allergy sufferers.
  • Sustainable and ecological through combination and use regenerative energies.
  • Cooling without colds: promotes health through improved indoor climate.
  • Increases the performance and concentration ability.


Components:

  • BASWA Fix C cementitious adhesive mortar or BASWA Fix K gypsum adhesive mortar.
  • BASWA Phon acoustic panel.
  • Capillary tube mats PPR.
  • BASWA Fill injected filler layer.
  • BASWA Base first coat layer.
  • BASWA Base, Fine or Top surface layer.
  • Panel adhesive: BASWA Fix C, Material – Portland cement, calcitic aggregates and mating admixtures.
  • Panel adhesive: BASWA Fix K, Material – Plaster, calcium carbonate, resin and reagent. Drying time (at 20°C/ 50% RH): Hard: 1–1.5 hours; dry: 24 hours.

General information

Color

White

Guidance for specification option:

Standard, NCS 0500-N.

Other

Guidance for specification option:

Surface coatings may be colour matched to any colour code or physical sample.

Finish

Smooth

Material

Glass Fibre

Guidance for specification option:

Glass fibre acoustic panel with polypropylene thermal components and marble surface coating.


Shape

Rectangle

Length

600 mm

Width

800 mm

Height

21 mm

31 mm

41 mm

61 mm

Warranty description

Five year

Uniclass

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Product range

BASWA Thermal + Acoustic systems

Specification data - Acoustic panel lining systems

System performance

Combined acoustic, active heating and cooling performance, up to αw = 0.65, NRC = 0.85, Class C.

Acoustic insulation

Glass wool insulation.

Panelling

-

Type

BASWA Phon thermal-acoustic panel using embedded capillary pipe system.

Surface material

BASWA Classic Base coating, glass fibre board (pressure and tension-resistant), 6 mm open pore pre-coating, recycled glass granulate (Poraver), organically combined.

Surface finish

Smooth, seamless to Q2 standard (Q3 maximum), resistant surface.

Guidance for specification option:

  • Surfaces that are exposed to strong side light should always be executed with a two-layer system (Classic Base / Fine / Top). For this lighting situation, the surface quality level Q3 must always be met.
  • The surface quality Q4 cannot be achieved with the smoothed BASWA Cool acoustic systems, for reasons of application and material technology.

Fasteners

Adhered, BASWA Fix C.

Guidance for specification option:

  • Material: Portland cement, calcitic aggregates and mating admixtures.
  • Colour: Cement grey.

Adhered, BASWA Fix K.

Guidance for specification option:

  • Material: Plaster, calcium carbonate, resin and different reagent.
  • Colour: White/ beige.
  • Drying time (at 20°C/ 50% RH): Hard: 1–1.5 hours; dry: 24 hours.


Samples required

Not required.

Required.

Guidance for specification option:

QM/ QC check and colour matching process.

System accessories

Not required.

Access hatches.

Guidance for specification option:

The BASWA inspection opening flaps are individually height-adjustable and already RAL9010 PUR-coated.

Stop beads.

Trims.

BASWA fastening rod.

Guidance for specification option:

Additional mechanical fastening of bonded acoustic panels with BASWA fastening rod for supporting effect, to prevent third-party damage.

BASWA Protect.

Guidance for specification option:

A specially developed premium impregnation system to achieve deep water repellency, with optimum protection for BASWA acoustic surfaces.

BASWA Blonde.

Guidance for specification option:

Bleaching agent for removal of partial organic soiling, such as drink stinks, grease and nicotine.

BASWA Clean.

Guidance for specification option:

Special enzyme cleaner for removal of partial organic soiling, such as drink stinks, grease and nicotine.

BASWA Fresh.

Guidance for specification option:

Mineral dispersion technology, used to renovate age and use-related discolourations of BASWA surfaces.

BASWA Casual.

Guidance for specification option:

Acoustic spray plaster, which is used for the renovation of existing BASWA acoustic surfaces.

BASWA IP.

Guidance for specification option:

  • Used for the partial installation of built-in elements with expansion springs, which require low construction thicknesses for fastening.
  • Acoustic panels are fully connected to the installation platform; the joints and screw holes are filled with BASWA Fill and ground at the same level.
  • 200 x 200 mm for d <140 mm.
  • 300 x 300 mm for d >90 mm or d >220 mm.
  • Other dimensions are available on request.


BASWA Fill.

BASWA L-angle profiles.

Guidance for specification option:

PVC or powder-coated aluminium can be used to build edges, offering protection against mechanical damage.

BASWA PVC edge protection profiles.

Manufacturer guidance

Consult manufacturer.

Execution

Certified BASWA installer.

Thickness

30 mm.

Colour/ Texture

NCS S 0500-N.

Guidance for specification option:

Standard.

Manufacturer guidance

Consult manufacturer and insert requirements.

Noise reduction coefficient (NRC)

0.60/ 0.60.

Manufacturer guidance

To ASTM E 1264: Solid ceilings (on concrete)/ Suspension 200 mm.

Sound absorption

αw = 0.65 (SAA = 0.59), Class C/ αw = 0.60 (SAA = 0.59), Class C.

Manufacturer guidance

To ISO 11654: Solid ceilings (on concrete)/ Suspension 200 mm.

Thermal resistance (R-value)

0.68 m²·K/W.

Thermal transmittance (U-Value)

1.47 W/m²·K.

ThermalConductivity

λ = 0.044 W/m·K.

Weight

24 kg/m² (approximate).

Adhesive bond

30 kg/m² (tensile).

Guidance for specification option:

Minimum substrate adhesive tensile strength.

TemperatureRange

Application: 15–30°C, Building use: 17.5–27.5°C (recommended).

Guidance for specification option:

  • Application temperature to be maintained during installation until drying is complete.
  • During drying time, there should not be a temperature gradient greater than 10°C.


RelativeHumidity

At 25°C: 70% RH (maximum), 80% RH (absolute maximum after consultation).

Guidance for specification option:

  • At temperatures above 0°C, humidity above 80% RH promotes the risk of microbial growth.
  • Relative humidity up to stress Class A (DIN EN 13964).
  • If there are strong fluctuations in temperature and relative humidity, care must be taken to ensure that the dew point is not located on the surface or within the BASWA acoustic system.

Colour (Light reflectance value (LRV)

0.75.

Guidance for specification option:

Degree of whiteness (CIE-Y-Value): 89.61, L-value up to 90%.

Manufacturer guidance

Values refer to measurements carried out according to DIN EN ISO 11664-4, according to CIELAB system.

Grain size

0.7 mm.

Guidance for specification option:

Roughest surface structure.

Manufacturer guidance

Final layer.

Reaction to fire (to BS EN 13501-1)

B–s1, d0.

VOC emissions

Indoor Air Comfort GOLD®.

Control options

Flow temperature control constant with fixed defined setpoint.

Flow temperature control variable according to enthalpy or fixed temperature curve.

Basecoat

BASWA Base, 0.7 mm.

BASWA Base Cool, 0.7 mm.

NominalCoolingCapacity

At Δ15 K: 117.7 W/m².

Guidance for specification option:

  • Nominal mass flow: 33.8 kg/(h·m²).
  • Characteristic curve with respect to active area to DIN EN 14240.

NominalHeatingCapacity

At Δ8 k: 79.1 W/m².

Guidance for specification option:

  • Nominal mass flow: 34.0 kg/(h·m²).
  • Characteristic curve with respect to active area to DIN EN 14240.


Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

Switzerland

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

See BASWA EPD document.

Recyclability

-

Manufacturer guidance

See BASWA EPD document.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

94 %

Manufacturer guidance

See BASWA EPD document.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit
 -

1

Literature

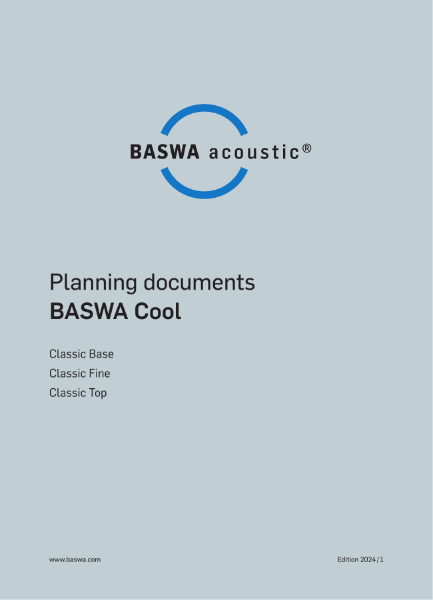

Planning Document for BASWA Cool
