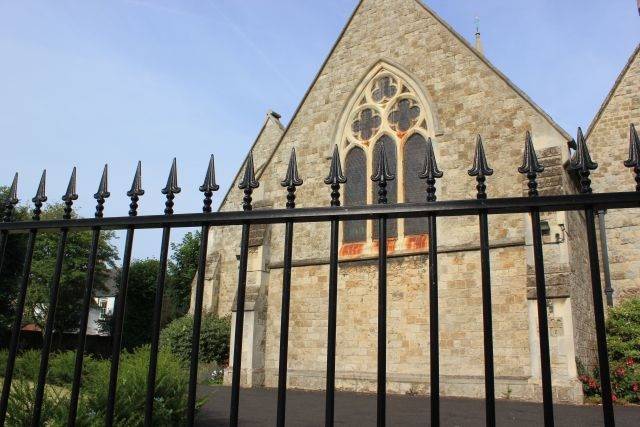

Barbican Imperial® Residential Metal Railings

Name: Barbican Imperial® Residential Metal Railings
Brand: Jacksons Fencing
SKU: iX3o93ssQJCby7qD81qUoJ

Verified by manufacturer 5 months ago

Jacksons Fencing

Aesthetically pleasing metal railings with slender pales.

Jump to:

0800 408 4757 Website

Application

Residential projects; parks; schools.

Description

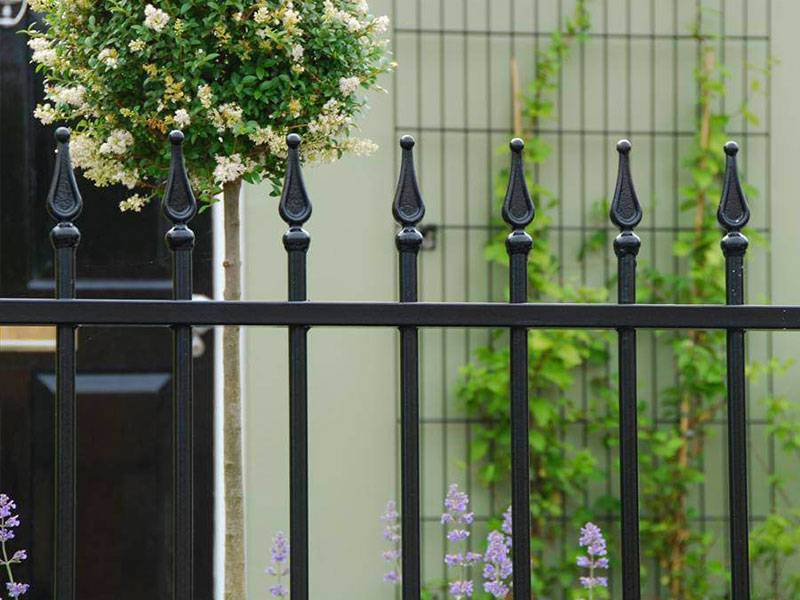

Decorative slender pale metal railings with optional finials to mimic traditional wrought iron railings, suitable for residential properties and to provide demarcation.

Features and benefits:

119 mm pale pitch, 19 mm pales
Flat top pales as standard; optional finials available.
Panels can be custom-made to suit sloping ground.
25-year guarantee.
Welded pale-through-rail construction.
Correspond(s) to the generic component/material 'steel' in the BRE Global Guide online generic specification(s) 'Galvanised steel railings' which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.
Matching gates available (specified separately).

General information

Color	Black Green Other Grey Blue Yellow White Red Brown Show more
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Width	3000 mm
Height	1000 mm 1250 mm
Warranty description	25 year Guidance for specification option: Manufacturer's Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/40 Steel gates Q40/430 Proprietary fencing

Product range	Metal Railings

Specification data - Steel vertical bar fencing systems

Classification data
Posts	60 x 60 mm. Guidance for specification option: Rectangular hollow section (RHS).
Post foundations	Set in concrete. Guidance for specification option: Standard. Base-plated. Guidance for specification option: To bolt down onto concrete. Cranked.
Rails	50 x 25 mm. Guidance for specification option: Rectangular hollow section (RHS).
Panels	19 mm pales welded through rails with 100 mm spacing, 1000 mm high. Guidance for specification option: Overall post length: 1600 mm; post centres: 3000 mm. 19 mm pales welded through rails with 100 mm spacing, 1250 mm high. Guidance for specification option: Overall post length: 1850 mm; post centres: 3000 mm. Manufacturer guidance Finish and colour specified separately below.
Fence topping	Flt top pales extend above top rail.
System accessories	None. Finials. Guidance for specification option: Consult manufacturer for options and insert requirements. Matching gates. Guidance for specification option: To be specified separately.
Finish/ Colour	Hot-dip-galvanized to BS EN 1461. Guidance for specification option: Standard. Galvanized and powder-coated, Black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, Green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Special order, insert requirements (BS or RAL). Marine coat. Guidance for specification option: For installations within 500 m of saltwater or an estuary.
