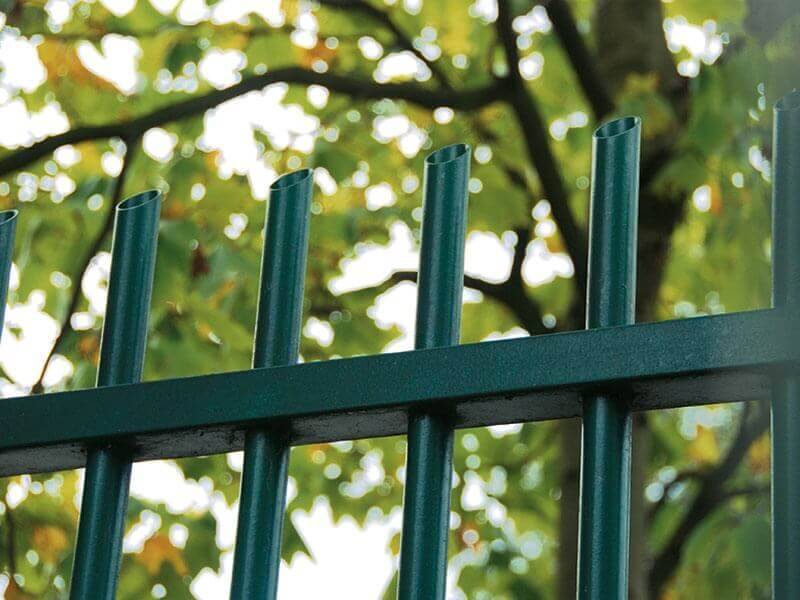

Barbican Imperial® A1 (SR1) Fencing - Security rated fencing

Name: Barbican Imperial® A1 (SR1) Fencing - Security rated fencing
Brand: Jacksons Fencing
SKU: meNquh2yv9nkbhzXA9twCw

Verified by manufacturer 5 months ago

1800 mm-high panels

Product certifications:

LPS 1175 security rated vertical bar fencing suitable for lighter properties and residential developments.

Jump to:

Application

Residential properties; commercial premises; schools.

LPS 1175 security rated vertical bar fencing which combines strength and security with a non-intimidating aesthetic.

Features and benefits:

Anti-climb design.
LPS 1175 A1 (SR1)-approved.
Secured by Design preferred specification.
Fully welded pale-through-rail construction.
25-year guarantee.
Concealed rail to post fixings for seamless finish.
Matching single-leaf and double-leaf gates are available (specified separately).

Color	Black Green Other Blue Brown Yellow Red White Grey Show more
Finish	Galvanized Powder-coated Manufacturer guidance [Finish, Hot-dip-galvanized, powder-coated]
Material	Steel
Shape	Rectangle
Width	3000 mm 2484 mm
Height	1800 mm 2000 mm 2500 mm 3000 mm
Warranty description	25 year Guidance for specification option: Manufacturer's Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/40 Steel gates Q40/430 Proprietary fencing

Product range	Vertical Bar Railings LPS 1175 Certified Fencing

Classification data
Posts	80 x 60 mm. Guidance for specification option: Rectangular hollow section (RHS) posts with anti-tamper fixings with internal connectors and no visible bolts.
Post foundations	Set in concrete. Guidance for specification option: Standard. Base-plated. Guidance for specification option: To bolt down onto concrete. Cranked.
Base boards	To bolt onto concrete.
Rails	60 x 40 mm. Guidance for specification option: Two rails.
Panels	1800 mm high: 25 x 25 mm pales with 124 mm pale centres. Guidance for specification option: Overall post length: 2500 mm; post centres: 3000 mm.
Fence topping	Manufacturer's standard.
Site applied finishes	Hot-dip-galvanized to BS EN 1461. Guidance for specification option: Standard. Galvanized and powder-coated, Black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, Green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Special order, insert requirements (BS or RAL). Marine coat. Guidance for specification option: For installations within 500 m of saltwater or an estuary.
System accessories	None. Finials. Guidance for specification option: Consult manufacturer for options and insert requirements. Matching gates. Guidance for specification option: To be specified separately.
