Barbican® Barbed-Top A1 (SR1) Fencing

Name: Barbican® Barbed-Top A1 (SR1) Fencing
Brand: Jacksons Fencing
SKU: oPY4xovZ7p2TK5oky8rxY5

Verified by manufacturer 5 months ago

Jacksons Fencing

Product certifications:

QA Certificate
Certificate type
QA Certificate
Certificate type

LPS 1175 certified vertical bar fencing with barbed pales.

Jump to:

0800 408 4757 Website

Application

Construction sites; medium-risk areas; commercial premises.

Description

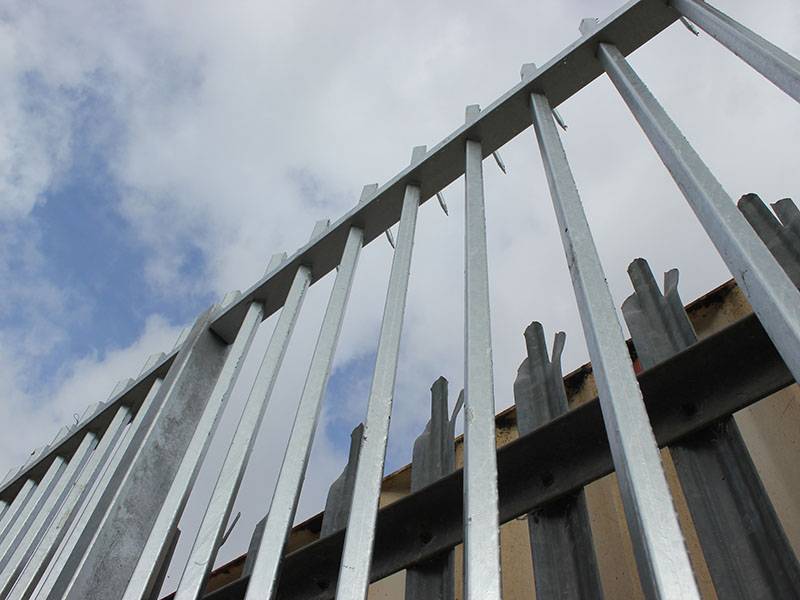

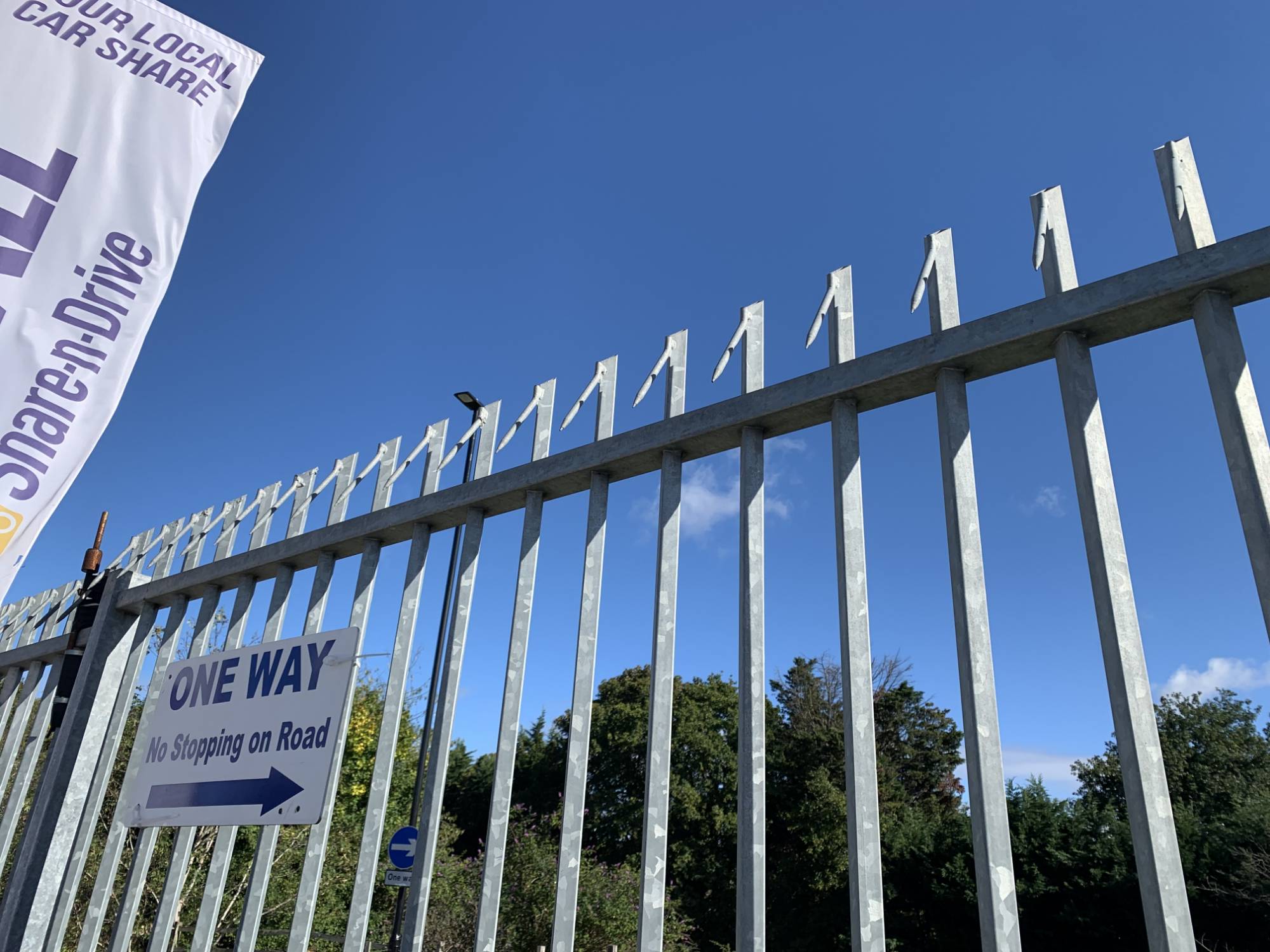

Security-rated vertical bar fencing with barbed top. The menacing barbs welded to the top of the pales provide an intimidating and highly effective physical barrier.

Features and benefits:

Anti-climb design.
Fully welded, pale-through-rail construction.
Built-in barbed top security topping.
LPS 1175 A1 (SR1)-certified.
Secured by Design-preferred specification.
Concealed rail-to-post fixing for seamless finish.
Provides high visibility for natural surveillance.
Can be stepped.
Matching SR1 gates are available (specified separately).
25-year guarantee.

General information

Color	Black Blue Brown Green Grey Red White Yellow Other Show more
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Width	3000 mm 2484 mm
Height	1800 mm 2000 mm 2500 mm 3000 mm
Warranty description	25 year Guidance for specification option: Jacksons' Service Life guarantee provides cover against defects such as design, manufacturing finish and fitness for purpose. Consult manufacturer for full details.

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/30 Proprietary fencing Q40/340 Steel vertical bar fencing Q40/40 Steel gates Q40/430 Proprietary fencing

Product range	Vertical Bar Railings LPS 1175 Certified Fencing

Specification data - Steel vertical bar fencing systems

Classification data
Posts	Manufacturer's standard. Guidance for specification option: 60 x 60 mm or 80 x 60 mm, dependent on height selected. Rectangular, hollow section posts with anti-tamper fixings, with internal connectors and no visible bolts.
Post foundations	Set in concrete. Guidance for specification option: Standard. Base-plated. Guidance for specification option: To bolt down onto concrete. Cranked.
Rails	Horizontal rectangular hollow section (RHS) rails, 60 x 40 mm. Guidance for specification option: 1800–2500 mm-high panels: two rails; 3000 mm-high panels: three rails.
Panels	Vertical RHS 25 x 25 mm pales, 1800 mm high. Guidance for specification option: Overall post length: 2500 mm; post centres: 3000 mm. Vertical RHS 25 x 25 mm pales, 2000 mm high. Guidance for specification option: Overall post length: 2800 mm; post centres: 3000 mm. Vertical RHS 25 x 25 mm pales, 2500 mm high. Guidance for specification option: Overall post length: 3300 mm; post centres: 3000 mm. Vertical RHS 25 x 25 mm pales, 3000 mm high. Guidance for specification option: Overall post length: 3800 mm; post centres: 2484 mm. Manufacturer guidance Post centres dependent on height specified. Pales are passed through the rails with standard spacing at 129 mm centres, which have a 10 mm, round pointed bar added to each pale.
Fence topping	Built-in 10 mm pointed bar on each pale.
System accessories	None. Matching gates. Guidance for specification option: To be specified separately.
Worked finish	Hot-dip-galvanized. Guidance for specification option: Standard. To BS EN 1461. Galvanized and powder-coated, black RAL 9005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Special order, insert requirements (BS or RAL). Marine coated. Guidance for specification option: For installations within 500 m of saltwater or an estuary.
