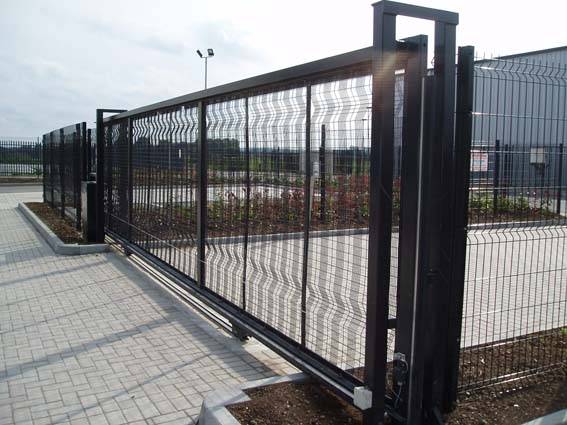

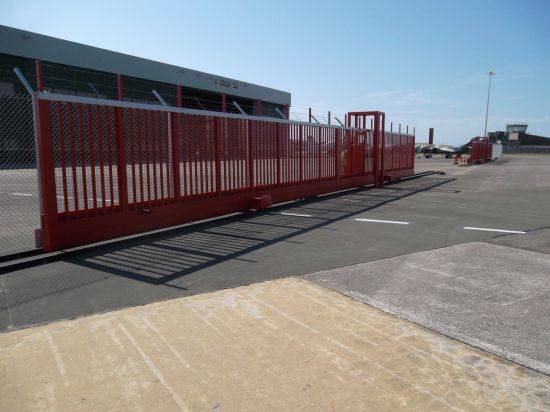

Automatic Sliding Guided Gate

Verified by manufacturer 22 days ago

Frontier Pitts Ltd

Automatic sliding guided security gate. Security Sliding Gate- not impact rated.

Jump to:
+44 (0)1293 548301 Website

Application

For heavy industrial and high-security applications like government and defence establishments, airports, warehouses and distribution centres.

Description

Automatic sliding guided gate, available up to 35 m in length. Smaller gates usually require one running guide and larger gates or gates with higher speed require two parallel guides. Designed to run on a guide installed into the roadway. It can be used for continuous or frequent use and has been installed throughout the world in varying climatic conditions.

A range of accessories options available. Operational speed is dependent on model and length; contact the manufacturer for details.


Features and benefits:

  • Compliant with BS EN 13849.
  • Bespoke available and larger lengths possible depending on site conditions and specifications.

General information

Color

Other

Finish

Painted

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrially non-polluted inland sites to BS 5493.

Material

Steel

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_59_79 Sliding vehicular barriersPrimary

CAWS

Q40/45 Gates

Q40/570 Gates

Product range

Perimeter Security Range

Specification data - Sliding vehicular barriers

Format

Sliding gate.

Method of operation

Automatic.

Manual.

Barrier dimension

-

Height

-

Manufacturer guidance

Height: 2400/ 5000 mm (standard/ maximum).

Span

-

Manufacturer guidance

Insert requirements.

  • Tracked Gate: Available up to 35 000 mm.
  • Bespoke lengths are available depending on requirements.

Barriers

-

Type

Sliding.

Material

Steel.

Finish as delivered

-

Worked finish

Shot blasted.

Applied finish

Polyurethane painted.

Guidance for specification option:

Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrially non-polluted inland sites to BS 5493.

Colour

-

Manufacturer guidance

Any colour to RAL; insert requirement.

Accessories

None.

100 mm diameter red/ green LED traffic light head with monitored safety circuit.

Control pedestal – dual height.

Control pedestal – HGV height.

Control pedestal – standard height.

Locking bolt.

Manual release in case of power failure.

Access control

ANPR – Automatic number plate recognition.

Audio intercom.

Card reader.

Digital keypad.

GSM intercom.

Show more

Gate infill

Not required.

Acoustic solid.

Bar.

Bar and weldmesh infill.

Ornate.

Show more

Top protection

Not required.

55 mm serrated edge.

Barbed wire.

Long blunted spikes.

Palisade struts.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

Security Gates Product Guide

Security Gates Product Guide
