Automatic LoTracker Cantilevered Sliding Gates
Verified by manufacturer 22 days ago

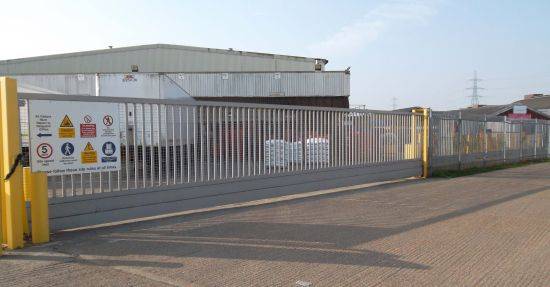

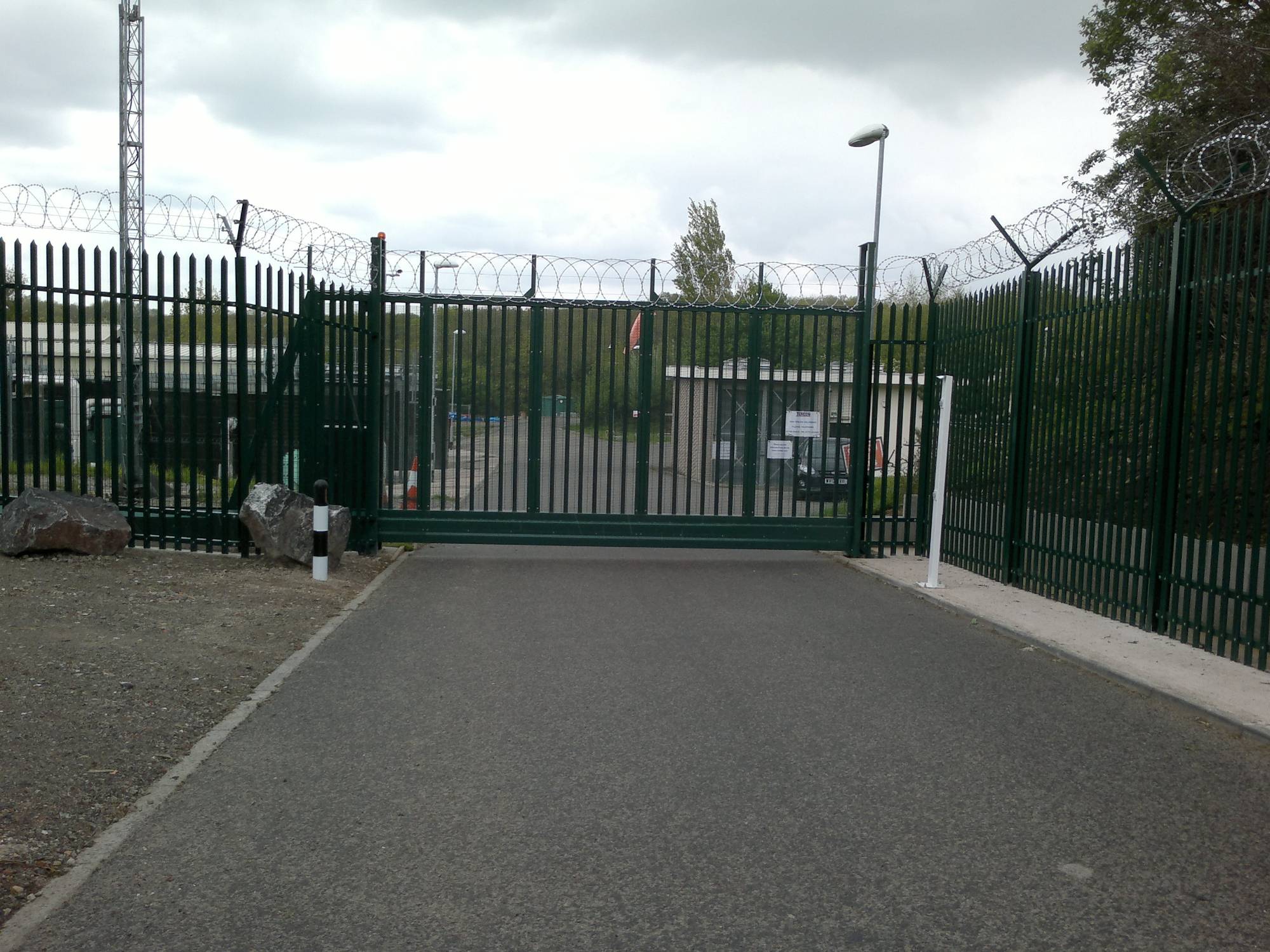

Automatic LoTracker cantilevered sliding security gates. Security Gate - not impact rated.
Application
Suitable for continuous and frequent use in varying climatic conditions in heavy industrial and high-security applications like government and defence establishments, airports, warehouses and distribution centres.
Description
Fully engineered cantilevered sliding gate that can secure widths up to 15 m. LoTracker sliding security gates are custom made to match project requirements, with various size, operation and accessory options. Operational speed is dependent on model and length; contact the manufacturer for details.
Features and benefits:
- Compliant with BS EN 13849.
General information
Color | Manufacturer guidanceClients choice of RAL colour |
Finish | Painted Guidance for specification option: Shot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Material | Steel Guidance for specification option: Carbon steel. |
Shape | Manufacturer guidanceSliding Gate |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceBespoke up to 12000mm |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | Q40/45 Gates Q40/570 Gates |
Product range |
Specification data - Sliding vehicular barriers
Format | Cantilevered, sliding. |
Method of operation | Automatic.Manual. |
Barrier dimension | |
Height | Manufacturer guidanceInsert requirement. 2400/ 5000 mm (standard/ maximum). |
Span | Manufacturer guidanceInsert requirement. 15 000 mm (maximum). |
Posts | 100 mm. |
Barriers | |
Type | Bar.Bar and weldmesh Infill.Ornate.Palisade.Perforated steel sheet.Sheet.Weldmesh.Wooden cladded gate. |
Material | Carbon steel. |
Finish as delivered | |
Worked finish | Shot blasted. |
Applied finish | Polyurethane painted.Manufacturer guidanceShot blasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493. |
Colour | Manufacturer guidanceAny colour to RAL; insert requirement. |
Accessories | None.100 mm diameter red/ green LED traffic light head.Control pedestal – dual height.Control pedestal – HGV height.Control pedestal – standard height.Manual Release in case of power failure. |
Access control | ANPR – Automatic number plate recognition. Audio intercom. Card reader. Digital keypad. GSM intercom. |
Actuation/ Safety | Not required. Audible alarms. Flashing beacon. Induction loop/ Vehicle detector loop system. Lasers. |
Top protection | Not required. 55 mm serrated edge. Barbed wire. Long blunted spikes. Palisade struts. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
