Automatic Sliding Cantilevered Gate

Verified by manufacturer 6 months ago

Frontier Pitts Ltd

Automatic sliding cantilevered gate. Security Gate - not impact rated.

Jump to:
BIM object icon
+44 (0)1293 548301 Website

Application

Continuous and frequent use on commercial and industrial premises.

Description

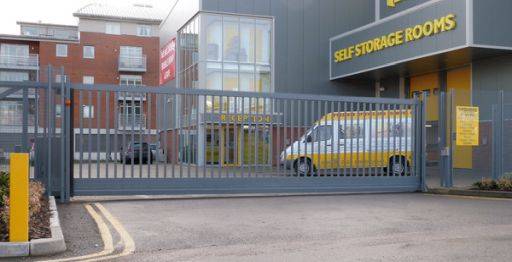

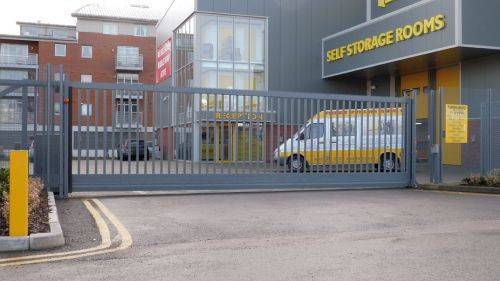

An automatic sliding cantilevered gate that is designed to control vehicle access while providing effective security. Secures widths up to 10 m, and no track or support across the roadway is required. The gate leaf is supported by the main bottom beam, which slides 100 mm above the road surface, and the balance is provided by an enclosed runback track, which enables the gate to be fully projected across the roadway without tipping. Operational speed depends on model and length; contact the manufacturer for details.


Features and benefits:

  • Compliant with BS EN 13849.
  • A range of sliding security gates in various size, operation and accessory options. Bespoke sizes are available.
  • Manual operation is also available.
  • There is no ground track or support across the roadway required; the enclosed runback track allows the gate to be fully projected across the road without tipping.
  • Fully welded construction.
  • No onsite assembly work required.

General information

Finish

Painted

Shotblasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Material

Steel

Low carbon steel.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_59_79 Sliding vehicular barriersPrimary

CAWS

Q40/45 Gates

Q40/570 Gates

Product range

Perimeter Security Range

Specification data - Sliding vehicular barriers

Format

Cantilevered, sliding.

Method of operation

Manual.

Automatic.

Barrier dimension

-

Height

Insert requirement. 2400/ 5000 mm (standard/ maximum).

-

Span

Insert requirement. 10 000 mm (maximum).

-

Finish as delivered

-

Worked finish

Shot blasted.

Applied finish

Polyurethane painted.

Shotblasted, hot zinc sprayed, primed and finished with a final coat of polyurethane paint to a RAL number. This process provides a 20-year corrosion protection system for exterior, industrial non-polluted inland sites to BS 5493.

Colour

Any colour to RAL; insert requirement.

-

Accessories

None.

100 mm diameter red/ green LED traffic light head with monitored safety circuit.

Control pedestal - dual height.

Control pedestal - HGV height.

Control pedestal - standard height.

Manual Release in case of power failure.

Operation

Automatic.

Manual.

Access control

ANPR - Automatic number plate recognition.

Audio intercom.

Card reader.

Digital keypad.

GSM intercom.

Show more

Gate infill

Not required.

Acoustic solid.

Bar.

Bar and Weldmesh Infill.

Ornate.

Show more

Top protection

Not required.

55 mm serrated edge.

Barbed wire.

Long blunted spikes.

Palisade struts.

Show more

Actuation/ Safety

Audible alarms.

Flashing beacon.

Induction loop/ Vehicle detector loop system.

Lasers.

Light curtain.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

100 %

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC

IFC2X3

1

Revit

Revit 2016

2
