Aspect® CTV Rainscreen Façade System - Rainscreen Cladding - Rainscreen Cladding
Verified by manufacturer 7 days ago

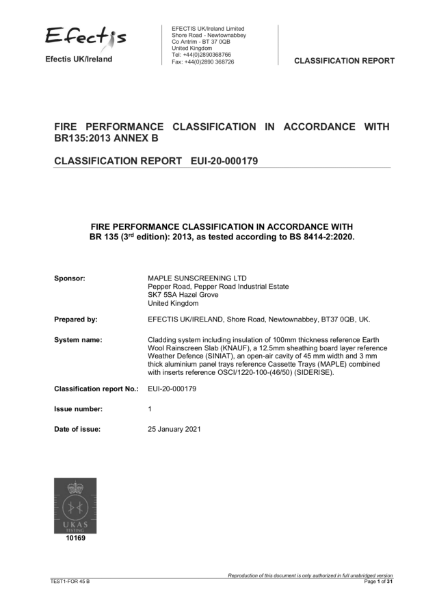

CWCT Certificate
Certificate type
BR 135
Certificate type
Vertical rainscreen cladding typically suited for concrete stair cores/flat surface areas and portrait panels. Tested and certified to BS 8414-2: 2020.
Application

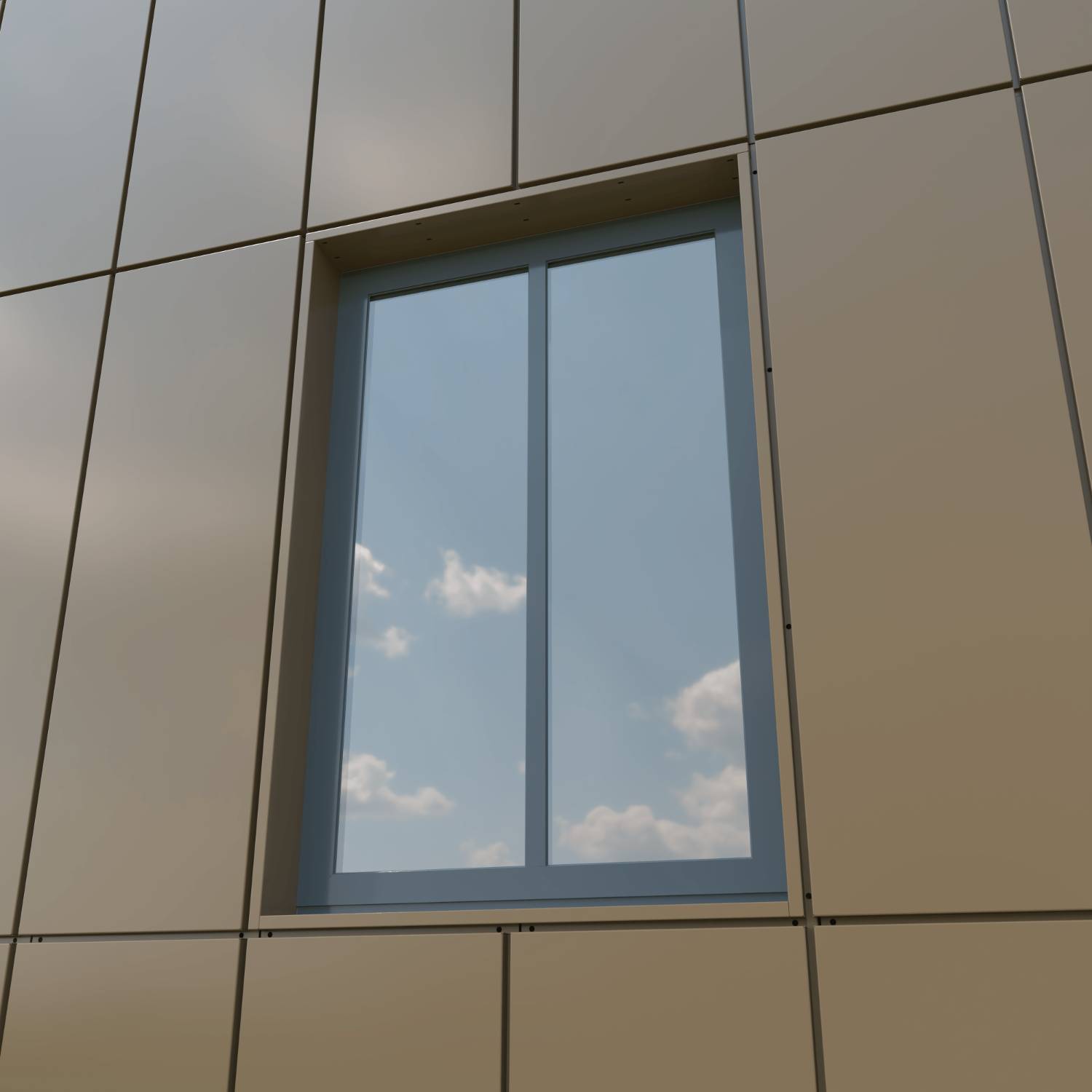

Aspect’s CTV system (vertical) is suited for concrete stair cores and flat surface areas and particularly lends itself to portrait panels.
Description
Firstly, as a rainscreen system, it must protect the exterior of buildings from the weather. It must also improve thermal performance (reducing heat loss and saving energy), meet fire and combustibility standards, and improve a building’s appearance.
Key features:
- Used for vertically orientated panels
- Used mainly in areas of concrete or large, flat areas of fixing zones
- Hidden-fix, hook-on panels
- Clean, continuous joint lines
General information
Color | Other Beige Black Blue Bronze |
Finish | Powder-coated Anodized Anti-graffiti |
Material | Aluminium Cor-Ten Stainless steel |
Shape | Other Square Rectangle |
Length | Bespoke Manufacturer guidanceVarious sizes and shapes available, contact manufacturer. |
Width | Bespoke Manufacturer guidanceVarious sizes and shapes available, contact manufacturer. |
Height | Bespoke Manufacturer guidanceVarious sizes and shapes available, contact manufacturer. |
Warranty description | 12 year |
Uniclass | |
CAWS | H20/150 Sheet cladding (attached to metal support systems) H92/120 Rainscreen cladding H20/10 Sheet cladding |
Product range |

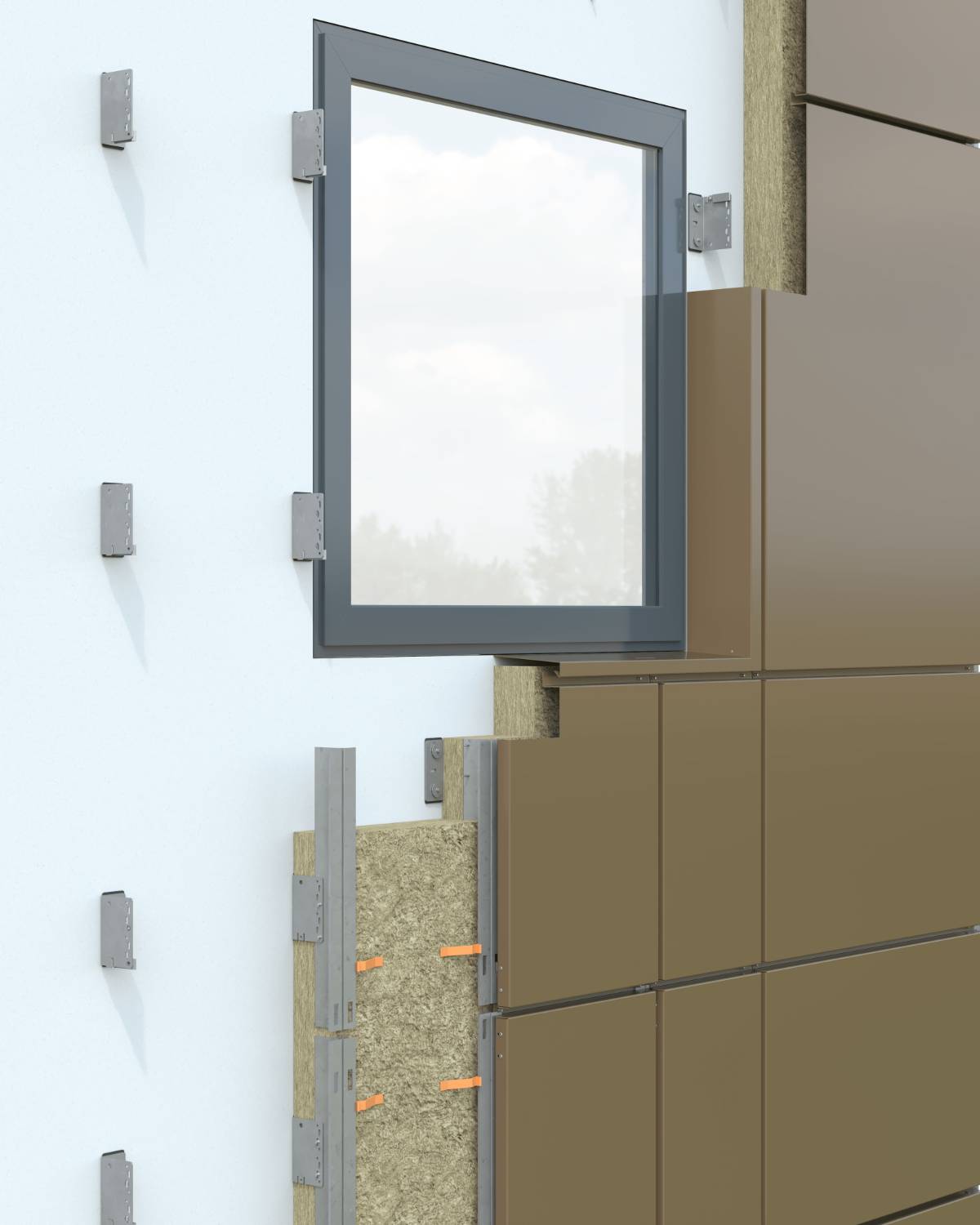

Specification data - Drained and back-ventilated rainscreen cladding systems
System performance | Rainscreen cladding system design. |
Thermal insulation | To suit specific requirements for U-value.Guidance for specification option: A1/A2 rated mineral wool insulation - thickness dependent on U-value requirements. |
Secondary support structure | Vertical mullions and stainless steel helping-hand brackets.Guidance for specification option: See eClips® VL Rainscreen Façade Support System. |
Cavity fire barriers | |
Horizontal | Guidance for specification option: Consult fire engineer and insert requirements. |
Vertical | Guidance for specification option: Consult fire engineer and insert requirements. |
Cladding panels | |
Material | 3 mm solid aluminium.3 mm perforated aluminium.2 mm solid stainless steel.2 mm perforated stainless steel.2 mm Corten steel .2 mm perforated Corten steel.Manufacturer guidanceTypically 20 mm joints to suit panels. |
Panel joints | Typically 20 mm gaps. |
Reveals | To suit system requirements around window openings.Guidance for specification option: Consult manufacturer and insert requirements. |
System accessories | Not required.Carrier clip.Guidance for specification option:
|
Bracket | 304 grade stainless steel. Guidance for specification option:
|
Bracket centres (maximum) | Up to 1200 mm. |
Projection | Ranging from 90–290 mm. |
Mullion | T/L profiled mullions maximum centres up to 1200 mm. Incorporates openings for panel hook-on. Guidance for specification option: Material: 6063 grade T6 Aluminium. |
Insulation clips | 6063 grade T4 aluminium, PPC finish Maple Orange for visibility. Guidance for specification option:
|
Fixing system | Discreet hidden fixing. |
Samples required | Full size mock ups. 3D models. Finish samples. Panel material samples. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium Cor-Ten Stainless steel |
Recyclability | Bespoke product minimal reuse potential. 95% + recyclability |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
