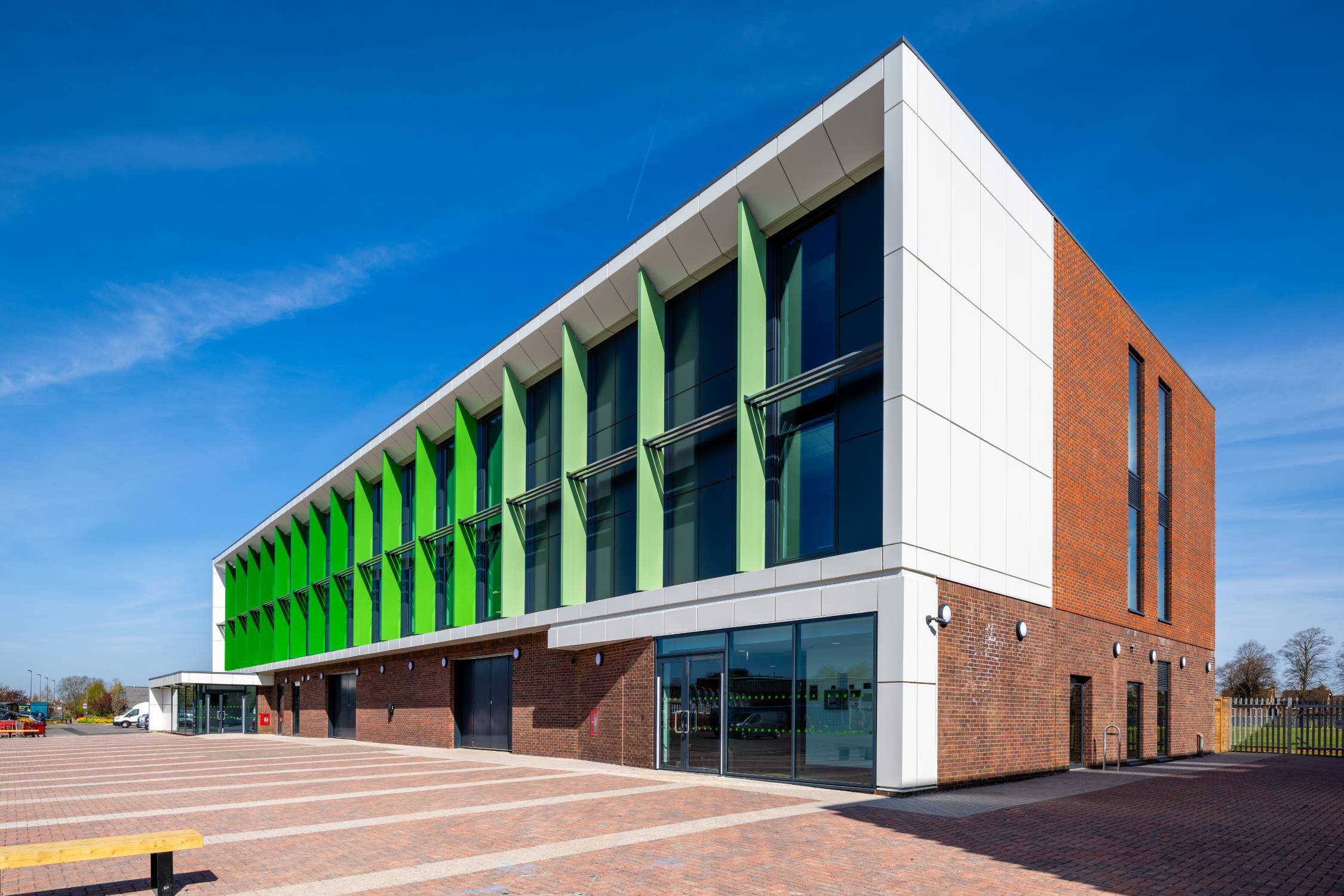

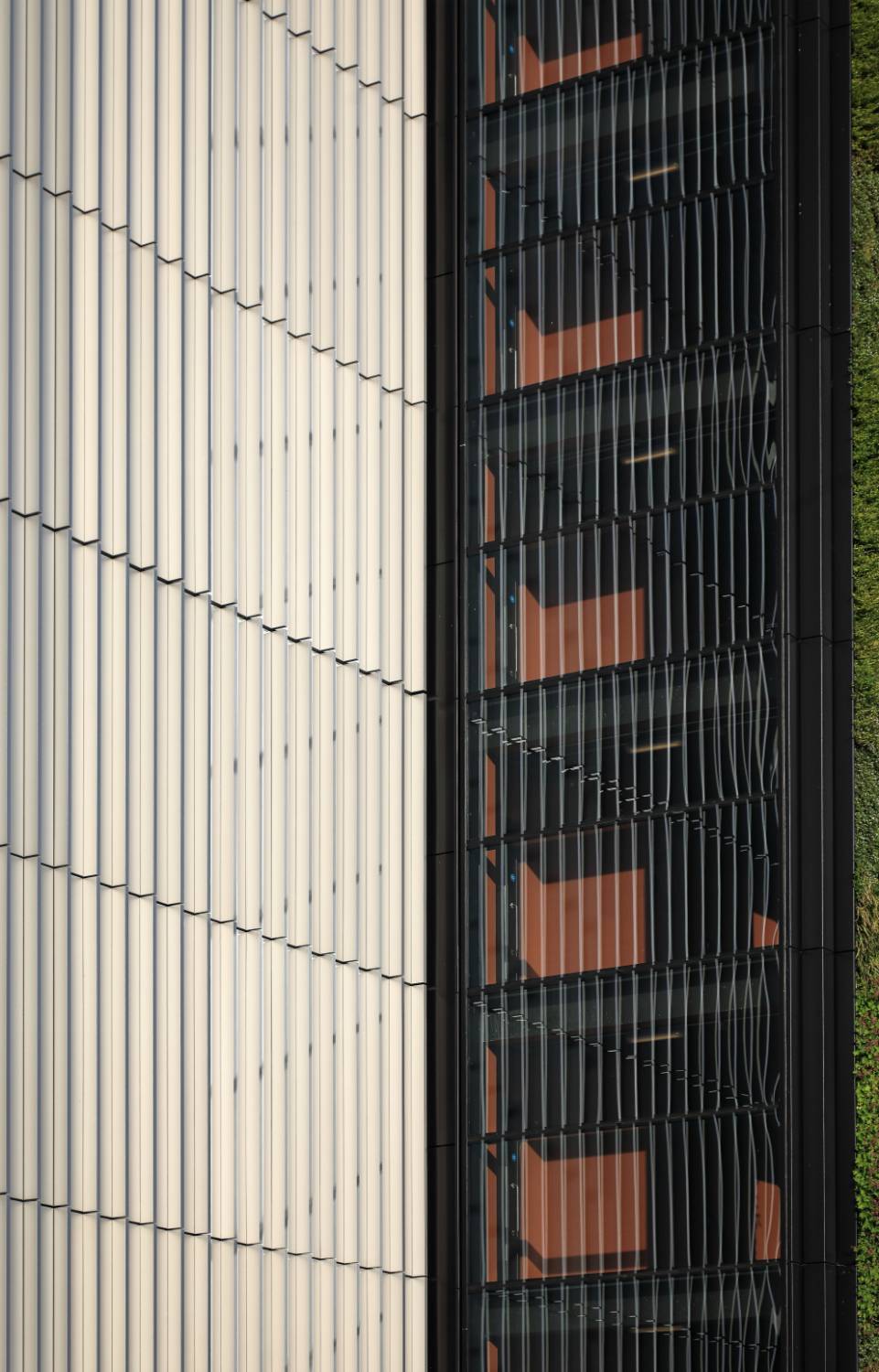

Aspect® Rainscreen Façade System - Rainscreen Cladding
Verified by manufacturer 1 day ago
Rainscreen cladding suitable for steel frame systems (SFS), concrete stair cores and flat areas, accommodating landscape and portrait panels. Tested and certified to BS 8414-2:2020.
Application
Aspect is suitable for use as an external rainscreen cladding system on steel frame systems (SFS), concrete frames, pre-cast concrete stair cores and other flat, structurally suitable substrates.
The system can be installed in both horizontal and vertical panel orientations and accommodates landscape, portrait and square cassette formats. It is particularly suited to projects where tolerance within the fixing zone needs to be accommodated and where clean, continuous joint lines are required.
Suitable for new-build and refurbishment applications across commercial, residential, education and healthcare sectors.
Description
Firstly, as a rainscreen system, it must protect the exterior of buildings from the weather. It must also improve thermal performance (reducing heat loss and saving energy), meet fire and combustibility standards, and improve a building’s appearance.
Features and benefits:
- Used for vertically and horizontally oriented panels.
- Hidden-fix, hook-on panels.
- Clean continuous joint lines.
General information
Color | Beige Brown Green Grey Orange |
Finish | Anodized Powder-coated |
Material | Aluminium Cor-Ten Stainless steel |
Shape | Other Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 12 year |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
Thermal insulation | As required. |
Secondary support structure | Aluminium carrier rails. Guidance for specification option: Vertical and horizontal rails material:
|
Cladding panels | |
Material | Aspect panel. Guidance for specification option: 3 mm Aluminium (1050 H14 / J57S / 55HX). |
Panel joints | Closed joints. |
System accessories | Not required. Horizontal coping extrusion. Horizontal coping seal. Horizontal coping. |
Panel dimensions | Guidance for specification option: Bespoke to suit project. Maximum panel size 1200 x 3000 mm (width x height) validated to CWCT standards. Consult manufacturer and insert requirements. |
Bracket | Steel 304. Manufacturer guidancePrimary support bracket. |
Joint width | 20 mm. |
Air gap | 25 mm. Guidance for specification option: Minimum. |
Colour | Guidance for specification option: Available in RAL/BS standard colours, consult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium Cor-Ten Stainless steel |
Literature
Maple Facades Aspect® Rainscreen Facade System Technical Drawings 2025
