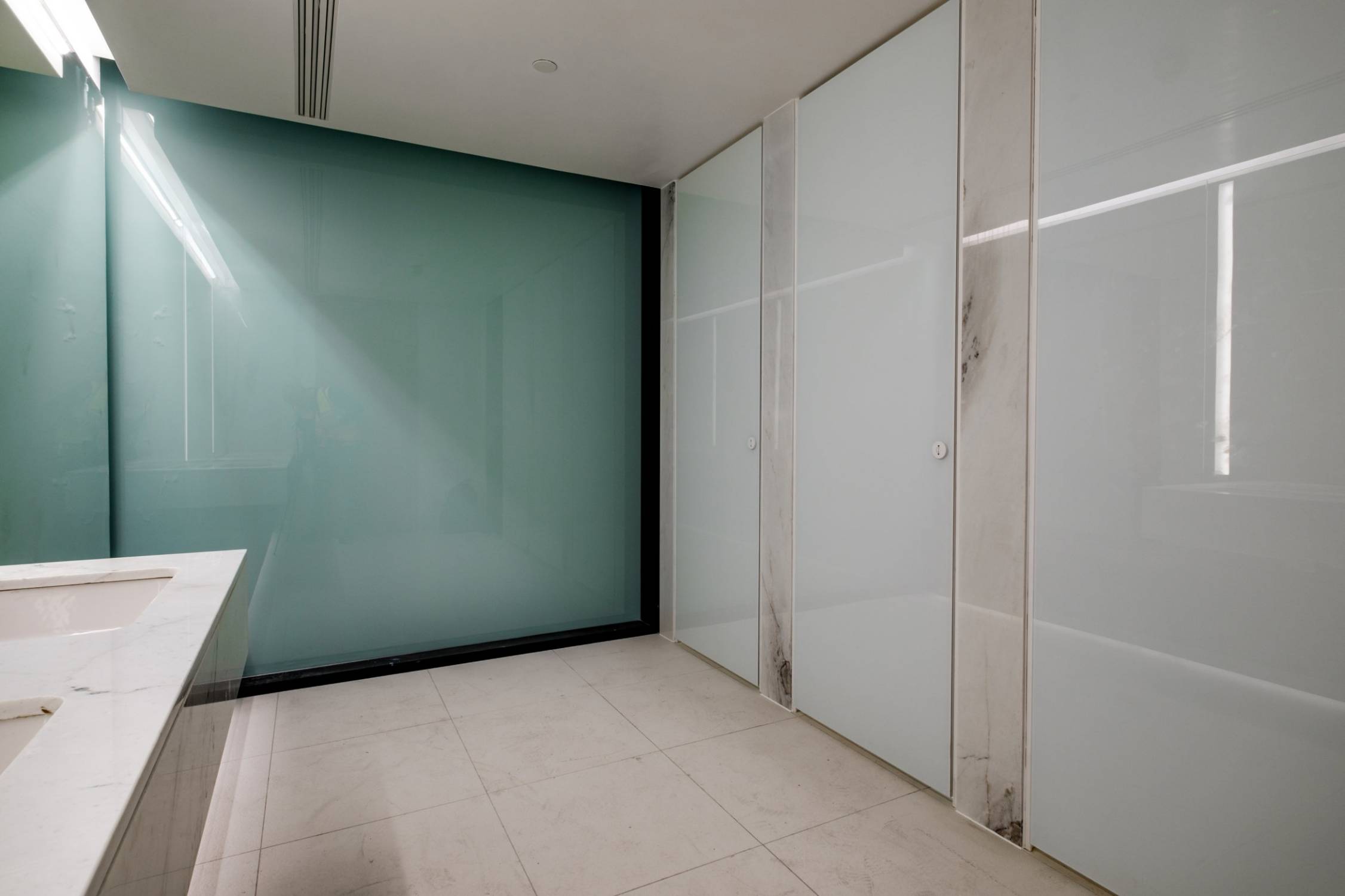

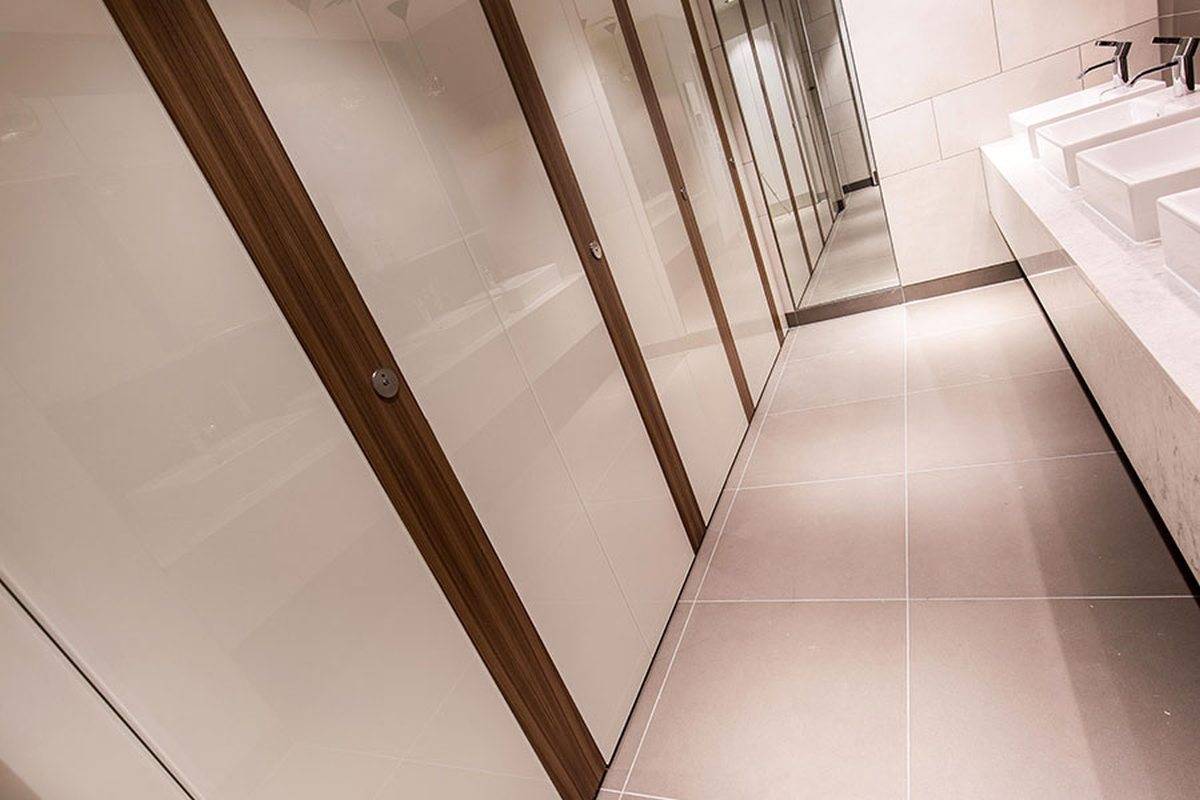

Name: Alto Kristalla Toilet Cubicles
Brand: Washroom Washroom Ltd
SKU: vSr2cEFLsBLMj9v472PkPU

Material

Glass

Size

Guidance for specification option:

(other sizes are available)

Manufacturer guidance

2400 mm overall height, including 20 mm floor and ceiling clearance to doors. Depth: 1500 mm.

Width

1500 mm

Height

2400 mm

Warranty description

One year

Guidance for specification option:

From practical completion.

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Pilasters

44 mm chipboard, edged in complementing hardwood and faced on both sides with 6 mm high pressure laminate (HPL) to both faces. 6 mm glass is then bonded to the front façade.

Doors

44 mm chipboard, edged in complementing hardwood and faced on both sides with 6 mm high pressure laminate (HPL) to both faces. 6 mm glass is then bonded to the front façade.

Lippings

Lipped first with hardwood, vertical edges rebated to enable flush fit with adjoining panel.

Lipped first with 20 mm solid surfacing, vertical edges rebated to enable flush fit with adjoining panel.

Manufacturer guidance

Lipped first with hardwood, vertical edges rebated to enable flush fit with adjoining panel.

Hardware

Hydraulic door dampener.

Stainless steel 4” rising butt hinges.

Stainless steel D-Line indicator bolt with emergency release facility.

Stainless steel buffered coat hook.

System accessories

Grab rail.

Manufacturer guidance

Alto cubicles are available in configurations to comply with Approved Document M (E&W), complete with outward opening doors. A standard stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors. Complementary grab rails are also available.

Product Reference

Alto Kristalla Toilet Cubicles

Partition type

Option 1.

Option 2.

Option 3.

Manufacturer guidance

Option 1 – floor-to-ceiling treated PAR softwood timber frame, laminated where required to create flashgaps, with two panels fitted either side to give an 84 mm-thick dividing partition.
Option 2 – 12 mm MR MDF central dividing panel, fitted floor-to-ceiling, with two panels fitted either side to give a 60 mm-thick dividing partition.
Option 3 – two 44 mm chipboard panels lipped in hardwood then faced both sides with high pressure laminate (HPL), fitted to floor and ceiling with hardwood splines.

Alto Kristalla Toilet Cubicles

Application

Description

General information

Material

Size

Manufacturer guidance

Width

Height

Warranty description

Uniclass

CAWS

Product range

Specification data - Panel cubicle systems

Pilasters

44 mm chipboard, edged in complementing hardwood and faced on both sides with 6 mm high pressure laminate (HPL) to both faces. 6 mm glass is then bonded to the front façade.

Doors

44 mm chipboard, edged in complementing hardwood and faced on both sides with 6 mm high pressure laminate (HPL) to both faces. 6 mm glass is then bonded to the front façade.

Lippings

Lipped first with hardwood, vertical edges rebated to enable flush fit with adjoining panel.

Lipped first with 20 mm solid surfacing, vertical edges rebated to enable flush fit with adjoining panel.

Manufacturer guidance

Hardware

Hydraulic door dampener.

Stainless steel 4” rising butt hinges.

Stainless steel D-Line indicator bolt with emergency release facility.

Stainless steel buffered coat hook.

System accessories

Grab rail.

Manufacturer guidance

Product Reference

Partition type

Manufacturer guidance

Sustainability data

Country of product manufacture

Literature

Case studies

Similar products from Washroom Washroom Ltd

Product Reference	Alto Kristalla Toilet Cubicles
Partition type	Option 1. Option 2. Option 3. Manufacturer guidance Option 1 – floor-to-ceiling treated PAR softwood timber frame, laminated where required to create flashgaps, with two panels fitted either side to give an 84 mm-thick dividing partition. Option 2 – 12 mm MR MDF central dividing panel, fitted floor-to-ceiling, with two panels fitted either side to give a 60 mm-thick dividing partition. Option 3 – two 44 mm chipboard panels lipped in hardwood then faced both sides with high pressure laminate (HPL), fitted to floor and ceiling with hardwood splines.
