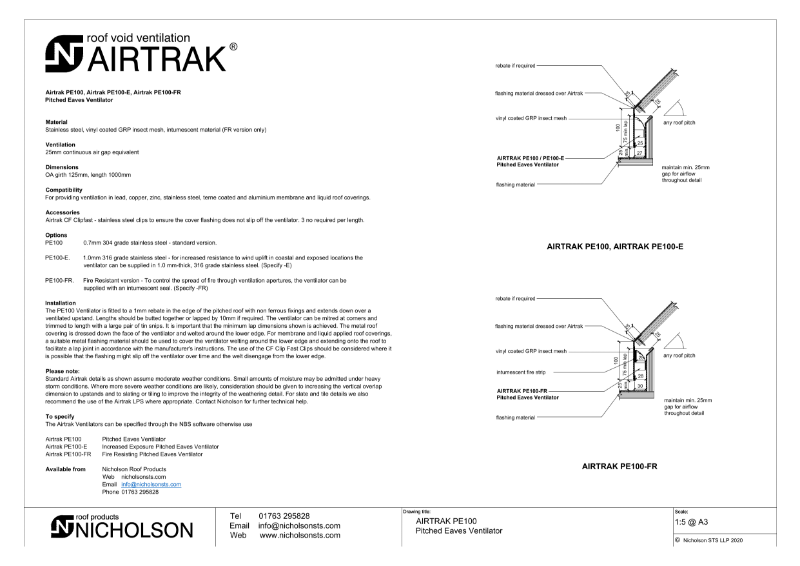

Airtrak PE100 Pitched Eaves Ventilator
ISO 9001 Quality Management
Certificate type
Provides an unobtrusive ventilation path into the roof void at the bottom of a pitched roof slope.
Note: Standard AIRTRAK® details assume moderate weather conditions. Small amounts of moisture may be admitted under heavy storm conditions. Where more severe weather conditions are likely, consideration should be given to increasing the vertical overlap dimension to upstands and to slating or tiling to improve the integrity of the weathering detail. For slate and tile details the manufacturer also recommends the use of the AIRTRAK® LPS where appropriate. Contact manufacturer for further technical help.
Provides an unobtrusive ventilation path into the roof void at the bottom of a pitched roof slope.
Features and benefits:
Color | Black Grey Silver |
Finish | Metallic |
Material | Stainless steel Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh. |
Shape | Rectangle |
Length | 1000 mm |
Width | 125 mm 145 mm 180 mm Manufacturer guidanceOverall girth. |
Warranty description | Ten year |
Uniclass | |
CAWS | H60/72 Top edge ventilated abutments H60/675 Top edge ventilated abutments J41/80 Roof ventilators J41/485 Roof ventilators |
Ventilation opening | 25 mm continuous air gap equivalent. |
Colour | Stainless steel. |
Type | Standard. |
Grade | 304. |
Dimensions | 1000 x 125 mm. Guidance for specification option: Unit length x overall girth. Downstand: 100 mm. |
Pitch | Guidance for specification option: Insert requirement. |
Airtrak CF ClipFast fixing clips | Not required. Airtrak CF ClipFast clips, stainless steel. Guidance for specification option: 70 x 60 mm, 0.6 mm thickness. Airtrak CF ClipFast clips, copper. Guidance for specification option: 70 x 60 mm, 0.5 mm thickness. Manufacturer guidanceFixing clip for securing lead flashings to the Airtrak ventilators to prevent flashing creep over time. Clips locate in the slots found in the lower edge of the ventilator; these slots are spaced at approximately 330 mm centres. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Glass Reinforced Plastic (GRP) Guidance for specification option: Insect mesh. |
Recyclability | Recyclable at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Expected Life | 30 year |
