Airtrak LV9 Lead Roof Ventilator
Airtrak LV9 Lead Roof Ventilator
ISO 9001 Quality Management
Certificate type
Range of compact point ventilators for flat or pitched lead covered roofs up to 30°.
Application
- Point ventilator or extract terminal for lead roofing up to a pitch of 30°.
- Suitable for situations where additional ventilation is required or retrofitted to roofs where no ventilation was initially installed.
Description
Range of compact point ventilators for flat or pitched lead covered roofs up to 30°.
Features and benefits:
- Suitable for introducing ventilation into roof voids which cannot easily utilise AIRTRAK® linear ventilators.
- Optional stainless steel insert provides extra strength and is recommended where the ventilator may be vulnerable to mechanical damage e.g. roof walkways, escape routes and areas accessed by maintenance contractors.
General information
Material | Stainless steel Guidance for specification option: Insect mesh / Insert. |
Shape | Circle |
Length | 180 mm Guidance for specification option: LV9. 220 mm Guidance for specification option: LV15. Manufacturer guidanceOverall (base). |
Width | 180 mm Guidance for specification option: LV9. 220 mm Guidance for specification option: LV15. Manufacturer guidanceOverall (base). |
Height | 138 mm Guidance for specification option: LV9. 157 mm Guidance for specification option: LV15. |
Warranty description | Ten year |
Uniclass | |
CAWS | H71/3 Lead sheet fully supported roof covering H71/110 Lead sheet fully supported roof covering |
Specification data - Flat roof ventilators
Material | Lead.Guidance for specification option: Ventilator. Manufacturer guidanceInsect mesh/ insert are stainless steel.. |
Colour | Grey (lead). |
Size | |
Diameter or section (minimum) | 112 mmGuidance for specification option: Internal diameter. External (hood) diameter: 155 mm. |
Upstand (minimum) | 32 mm.Guidance for specification option: To bottom of hood. |
Flange base (minimum) | 180 x 180 mm. |
Termination | Hood. |
Ventilation | 9000 mm². Guidance for specification option: 10 mm continuous air gap equivalent when used at 900 mm centres. |
Dimensions | 180 x 138 mm. Guidance for specification option: W x H. |
Type | With insect mesh. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Guidance for specification option: Insect mesh / Insert. |
Recyclability | Recyclable at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Expected Life | 30 year |
Third party certifications
ISO 9001 Quality Management
Citation
Literature
AIRTRAK Roof Void Ventilation System 2020

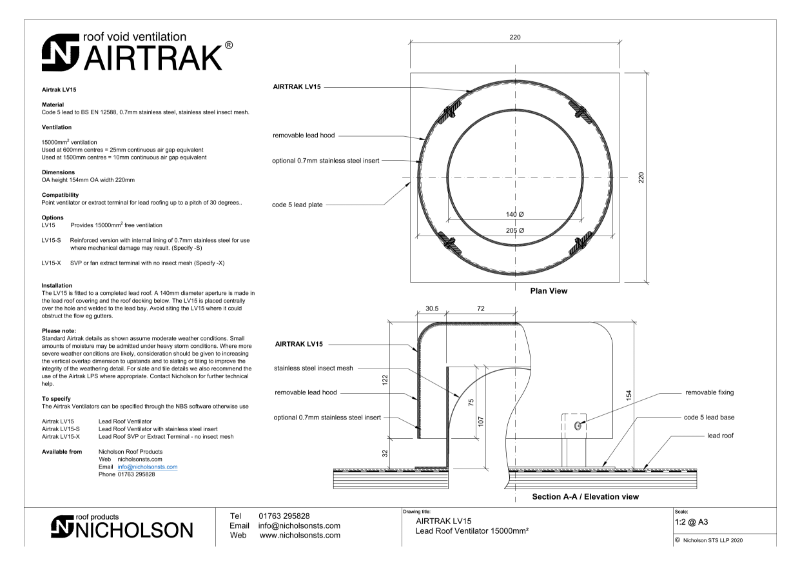

AIRTRAK LV15 Technical Data Sheet

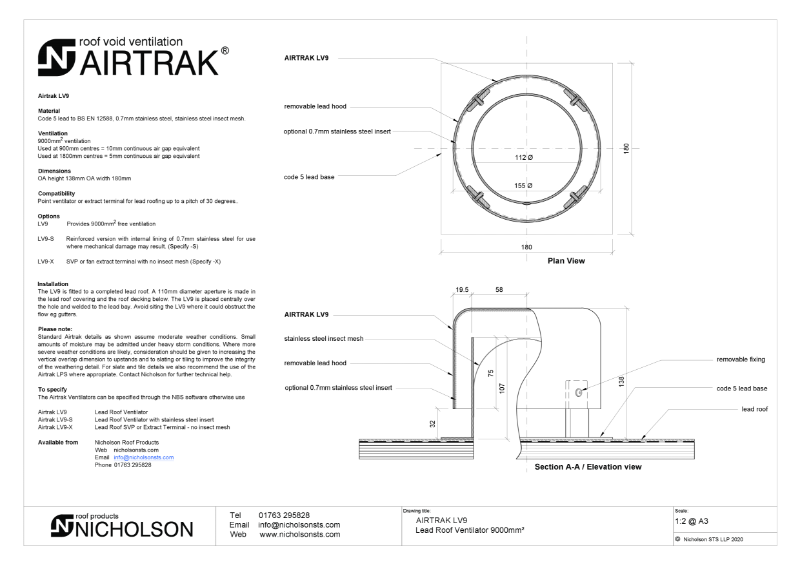

AIRTRAK LV9 Tech Data Sheet
