Airtrak F10/ F25 Fascia Ventilators
Application

  • Airtrak F10 Fascia Ventilator: Cold pitched roof construction - Suitable for use at the eaves for roof pitches of 16 to 90°.
  • Airtrak F25 Fascia Ventilator: Cold pitched roof construction - Suitable for use at the eaves for roof pitches of 10 to 15°.
  • Airtrak F25 Fascia Ventilator: Warm pitched roof construction - Suitable for use at the eaves for roof pitches of 16 to 90°.

Description

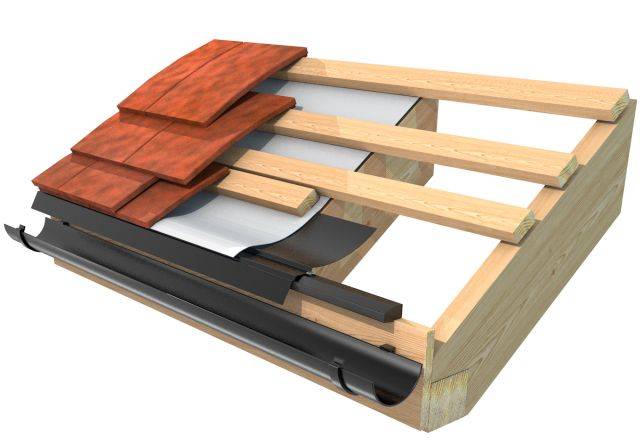

Provides ventilation to the roof void over the eaves fascia board.

Features and benefits:

  • Avoids unsightly soffit ventilation.
  • Includes an integral insect excluder.

Applications:

  • Airtrak F10 Fascia Ventilator: Cold pitched roof construction - Suitable for use at the eaves for roof pitches of 16 to 90°.
  • Airtrak F25 Fascia Ventilator: Cold pitched roof construction - Suitable for use at the eaves for roof pitches of 10 to 15°.
  • Airtrak F25 Fascia Ventilator: Warm pitched roof construction - Suitable for use at the eaves for roof pitches of 16 to 90°.

Installation:

Consult manufacturer's literature for details. Normally installed with Airtrak EC Eaves Carrier (specified separately).

General information
Material

Black polypropylene

Uniclass 2015
Pr_30_59_29_15 Combined eaves fascia grilles and ventilator traysPrimary
CAWS

H60/345 Ventilated eaves with integrated grilles/ trays

H61/345 Ventilated eaves with integrated grilles/ trays

H62/345 Ventilated eaves with integrated grilles tray

H65/345 Ventilated eaves – integrated grilles/ trays

Specification data - Combined eaves fascia grilles and ventilator trays
Product Reference

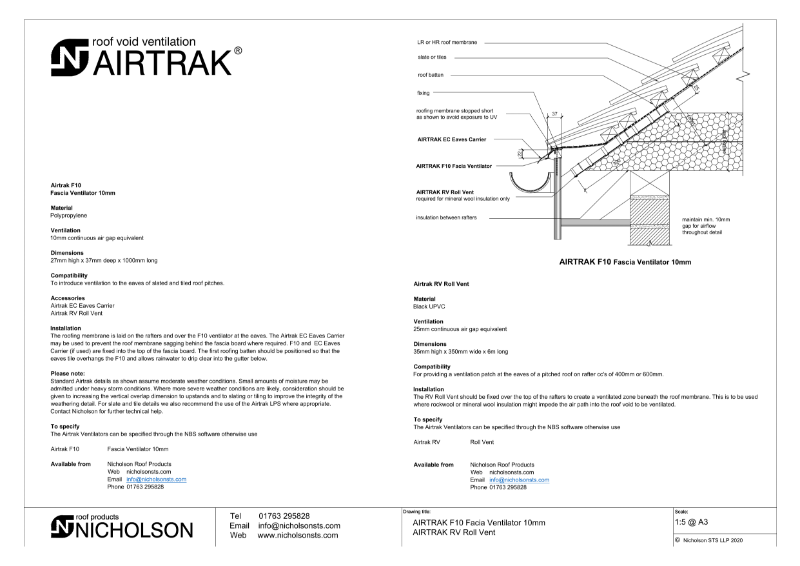

Airtrak F10 Fascia Ventilator

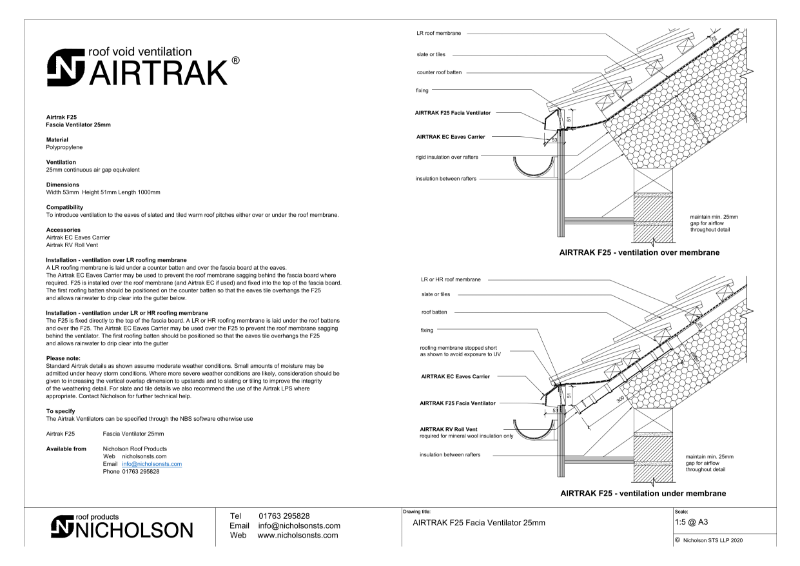

Airtrak F25 Fascia Ventilator

Standard product features

Material:

Black polypropylene.

Product Options

Size (l x w x h):

  • Airtrak F10 Fascia Ventilator: 1000 x 35 x 22 mm.
  • Airtrak F25 Fascia Ventilator: 1000 x 51 x 50 mm.

Ventilation:

  • Airtrak F10 Fascia Ventilator: 10 mm continuous air gap equivalent.
  • Airtrak F25 Fascia Ventilator: 25 mm continuous air gap equivalent.
