Acoustic SoundBoard Premium 21 - Acoustic Flooring
Verified by manufacturer 5 months ago

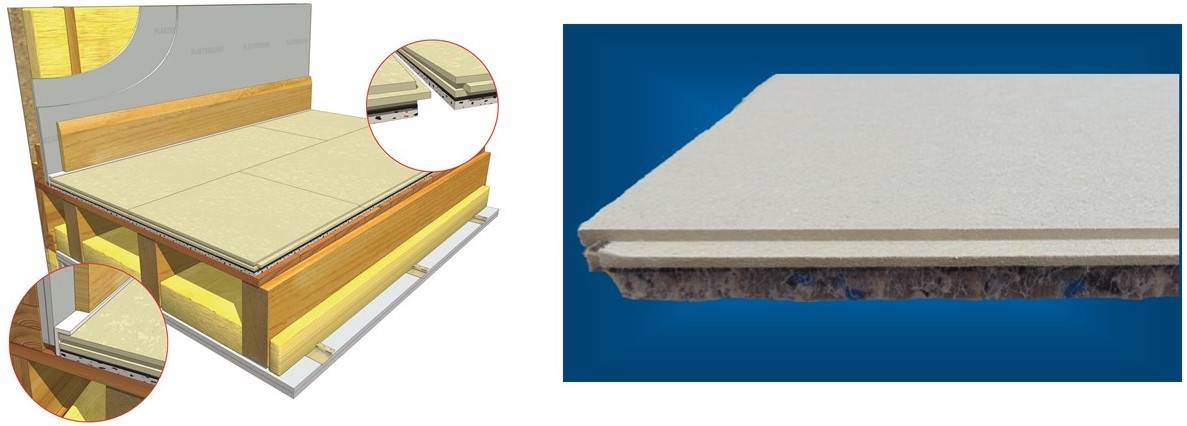

MDF based premium acoustic overlay board for timber floors.
Application
Acoustic overlay board for timber floorboards.
Description
MDF based premium acoustic overlay board that reduces sound transmission through timber floors.
Features and benefits:
- Moisture resistant 9 mm thick tongue and grooved medium density fibreboard (MDF) board with a pre-bonded 12 mm thick high-performance barrier mat and resilient layer.
- Excellent impact sound performance.
- Effectively improves airborne sound insulation.
- Complies with Part E of the Building Regulations (E&W).
- The MDF based top surface is immediately ready for final floor installation.
- Must be used in conjunction with JCW Perimeter Edging Strip to ensure Building Regulations compliance.
General information
Color | Grey |
Finish | Smooth |
Material | Rubber Foam Medium density fibreboard (MDF) |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 21 mm |
Uniclass | |
CAWS | K11/225 Particleboard floating floor K11/25 Particleboard floating floor K11/275 Acoustic separating floor system |
Product range |
Specification data - Timber-lined composite sound-insulating boards
Sound insulation rating | Airborne: Rw + Ctr - 52dB, Impact: Ln, w 51 dB. |
Thickness | 21 mm. |
Product Reference | Acoustic SoundBoard Premium 21 - 1440 |
Weight | 9.73 kg/m². |
Sound performance | Guidance for specification option: Impact sound reduction: 51 dB Ln,w. Airborne sound improvement: Rw = 61 dB, Rw + Ctr = 52 dB. |
Sheet size | 600 x 1200 mm. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Literature

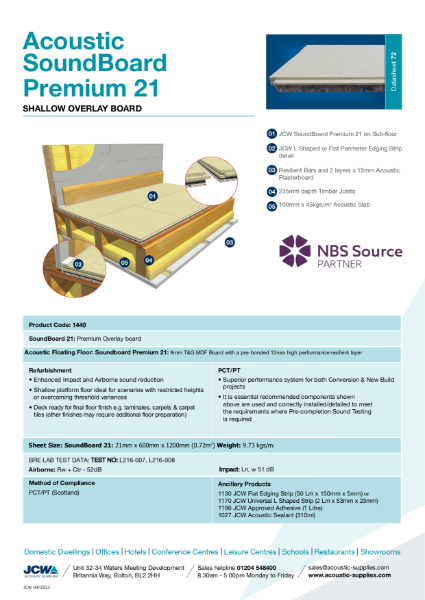

Soundboard Premium 21
