Acoustic Deck 37P - Acoustic Flooring
Verified by manufacturer 5 months ago
Plywood based acoustic deck for direct to joist fitment or onto existing subfloor.
Application
- For both general and new domestic separating floor upgrades in lofts and extensions.
- For conversions and new build projects.
Description

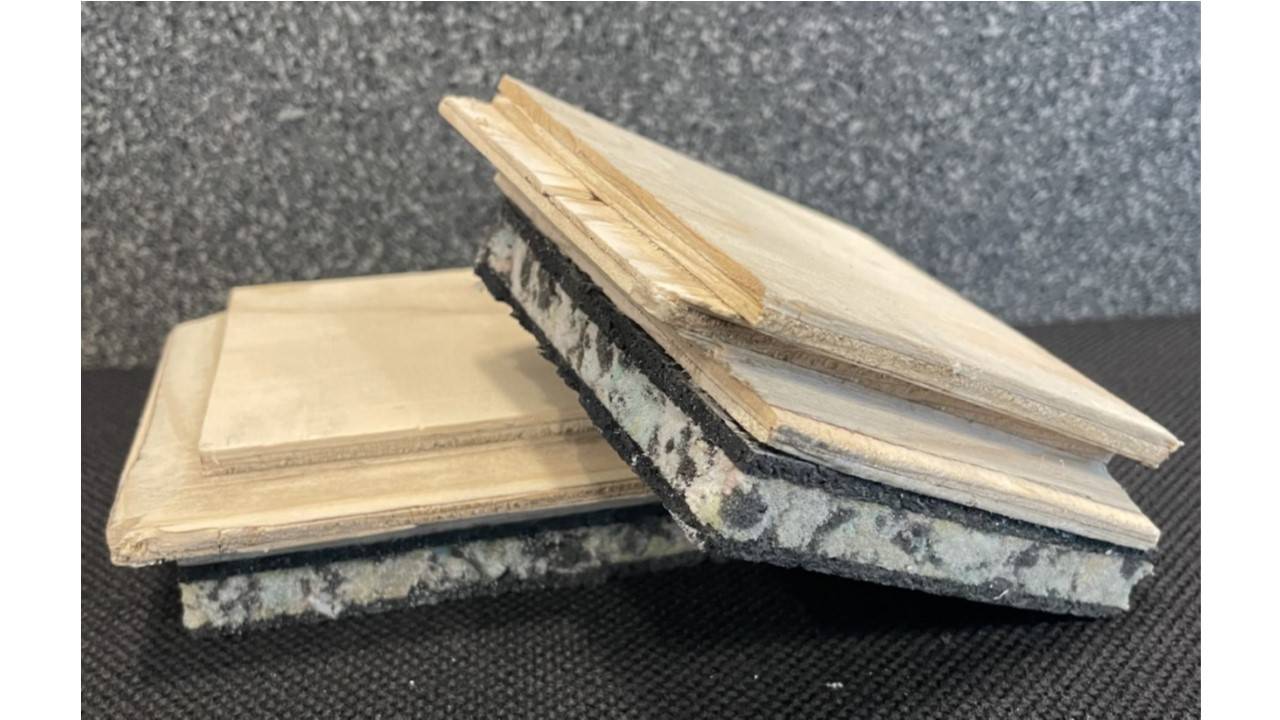

Plywood based acoustic deck for direct to joist fitment or onto existing subfloor comprising a 22 mm thick tongue and grooved plywood board with a pre-bonded 15 mm high performance resilient layer.
Features and benefits:
- Enhanced impact and airborne sound reduction via 15 mm barrier-foam-barrier pre-bonded backing.
- A suitable decking for floated wood, laminate, carpet or carpet tiles.
- Additional floor preparation will be required for tiling and vinyl overlays.
- Economical system.
- It is essential recommended components are correctly detailed and installed to meet the requirements where pre-completion sound testing is required. Consult manufacturer for details.
General information
Color | Beige |
Material | Foam Rubber Plywood |
Shape | Rectangle |
Length | 2400 mm |
Width | 600 mm |
Height | 37 mm |
Uniclass | |
CAWS | K11/225 Particleboard floating floor K11/25 Particleboard floating floor K11/275 Acoustic separating floor system |
Product range |
Specification data - Timber-lined composite sound-insulating boards
Sound insulation rating | Impact 52 dB Ln,w, Airborne: Rw + Ctr 56 dB. |
Thickness | 37 mm.Guidance for specification option: Also available in 33 mm thickness; consult manufacturer for details. |
Weight | 31 kg. |
Size (w x l) | 600 x 2400 mm. |
Sound insulation | Impact sound reduction: 52 dB Ln,w; Airborne sound improvement: 52 dB Rw + Ctr. Guidance for specification option: UKAS laboratory test data based on direct to joist construction. |
Accessories | None. 1130 JCW Flat Edging Strip (50 Lm x 150 mm x 5 mm). 1170 JCW Universal L Shaped Strip (2 Lm x 53 mm x 23 mm). |
Type | To BS EN 312, type P5. |
Grade | Standard. |
Format | Standard. |
Sustainability data
Country of product manufacture | United Kingdom |

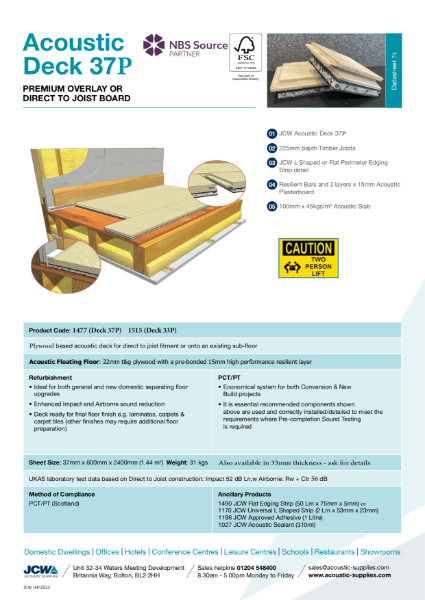

Literature
Acoustic Deck 37P
