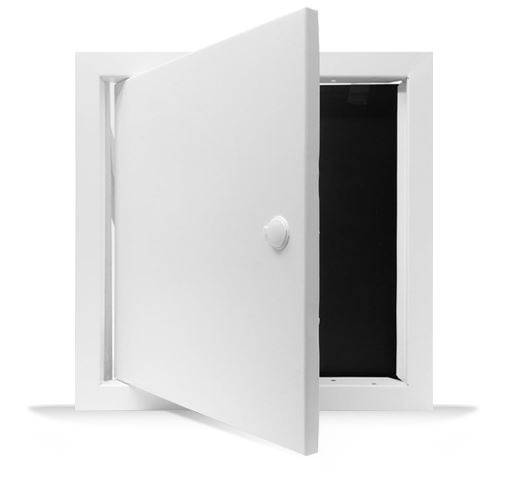

Access Panel - Non Fire Rated
Verified by manufacturer 4 months ago
Wall Mounted
Wall Mounted
Robust metal access panel range.
Application
Wall or ceiling mounted access panel.
Description
Robust metal access panel range. Available in sizes up to 2280 x 1000 mm (single door) and 2280 x 2200 mm (double door).
Features and benefits:
- Available with picture or beaded frame.
- Available with budget lock, tamper proof lock, Europrofile lock or push catch lock.
- Made of Zintec steel.
- For wall and ceiling use.
- 30 dB acoustic reduction.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Square Rectangle |
Length | 2280 mm Guidance for specification option: Maximum length single / double door. Bespoke Guidance for specification option: Made to order. |
Width | 1000 mm Guidance for specification option: Maximum width single door. 2200 mm Guidance for specification option: Maximum width double door. Bespoke Guidance for specification option: Made to order. |
Height | 53 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Position | Wall-mounted. |
Size | Guidance for specification option: Made to order. Consult manufacturer and insert requirements.
Manufacturer guidanceWhen selecting a access panel, please add 5 mm to the size when creating a structural opening. E.g. an access panel size of 1200 x 600 mm would fit a structural opening of 1205 x 605 mm. |
Frame | Bead for taping and jointing.Exposed picture frame type. |
Panel | |
Material | Steel.Guidance for specification option: Zintec steel. |
Integral finish | Powder-coated. |
Latch or lock type | Budget lock.Guidance for specification option: Standard. Tamper proof lock.Guidance for specification option: Optional. Europrofile lock.Guidance for specification option: Optional. Push catch lock.Guidance for specification option: Optional. (Max 1200 x 600 mm). |
Operation | Concealed steel hinges, outward opening. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Colour | Pure white, RAL 9010. |
Depth | 53 mm. |
Sound reduction | 30 dB. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
