AC10LP - Rytons LookRyt® AirCore®
Verified by manufacturer 3 months ago
AC10LPBS
AC10LPBS
Plastic retro-fitted combustion air vent.
Application
- For boilers, stoves and fires.
- As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.
Description
Plastic, retro-fitted combustion air vent, compliant with BS 5440-2.
Features and benefits:
- Unique draught reducing internal panel disperses air evenly into the room for improved comfort.
- Internal panel can be painted or wallpapered to match room décor for a discreet appearance.
- External water baffle prevents transfer of water across the cavity.
- Interlocking components aid correct positioning, alignment and easy installation.
- Grilles embossed with 'DO NOT BLOCK'.
- External grille UV stabilized to slow down the effects of sunlight.
- Screws provided to secure the internal panel.
- HETAS approved for use with solid fuel appliances.
- BRE verified equivalent area.

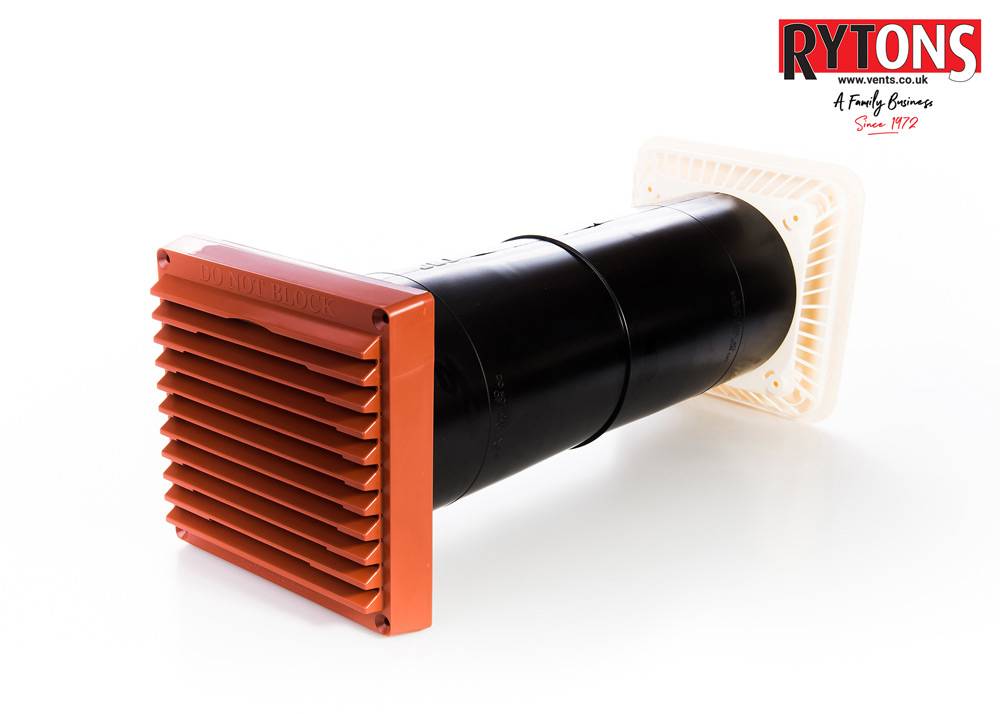

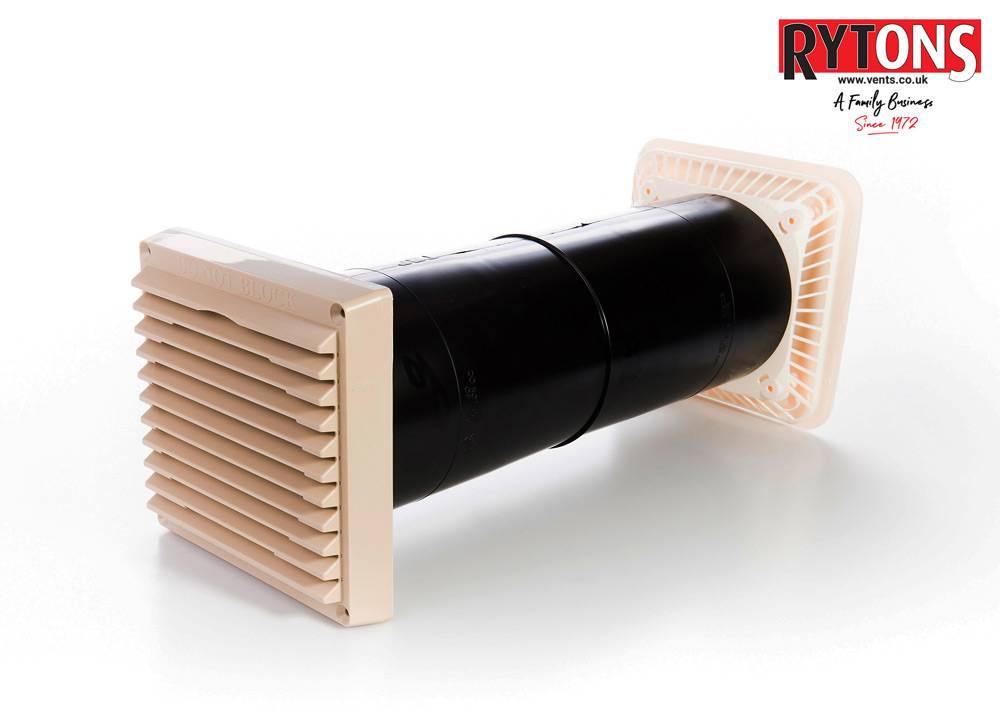

Components:
- External Grille.
- Tube.
- LookRyt® Panel.
General information
Color | Cream Orange White |
Material | Plastic Guidance for specification option: High impact polystyrene. |
Size | 166 x 160 mm Guidance for specification option: External Grille; (w x h). 358 x 127 mm Guidance for specification option: Tube; (l x dia). 172 x 172 mm Guidance for specification option: LookRyt® Panel; (l x h). |
Uniclass | |
CAWS | F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling U90/310 Ventilators for heating appliances U90/310 Ventilators for heating appliances |
Product range |
Specification data - Ventilation ducts
Material | Plastic.Guidance for specification option: High impact polystyrene. |
External Grille | Buff/ Sand. |
Equivalent area | 10 400 mm². |
