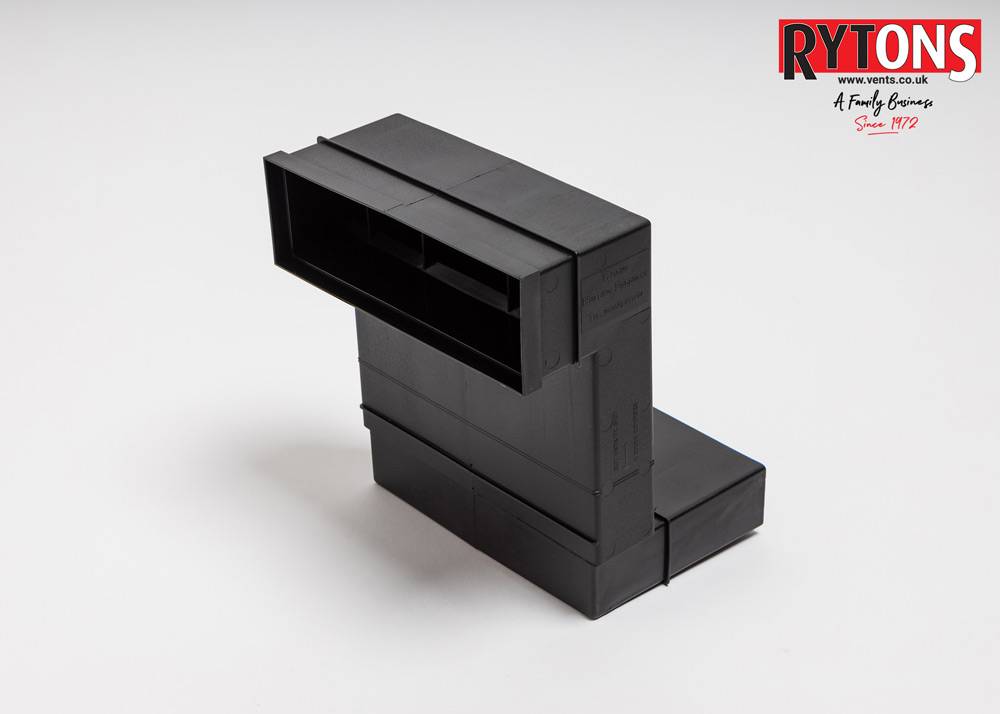

PUFV - Rytons Periscope® Underfloor Ventilator
Verified by manufacturer 3 months ago
Plastic underfloor ventilator.
Application
- Ventilation for block and beam and timber floors.
- As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials. For a compliant alternative see Rytons A1® Fire-rated Periscope® Underfloor Ventilator.
Description
Plastic underfloor ventilator, compliant with BS 5250.
Features and benefits:
- Expands up to five brick courses.
- Prevents damage by condensation.
- Alleviates the build-up of dangerous gases.
- For use with Rytons Multifix® Air Brick (MFAB).
- Made in Britain.
General information
Color | Black |
Material | Plastic Guidance for specification option: Polypropylene. |
Length | 218 mm |
Width | 250 mm |
Height | 368 mm |
Uniclass | |
CAWS | F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling |
Product range |
Specification data - Ventilation ducts
Material | Plastic.Guidance for specification option: Polypropylene. |
Free area | 7750 mm². Guidance for specification option: With Rytons Multifix® Air Brick fitted. |
Accessories | Rytons Periscope® Vertical Extension (1m L). Guidance for specification option: PUFVVEXT. Rytons Horizontal Adaptor (101mm Dia. Spigot). Guidance for specification option: HADAP100. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
