Surespan

Surespan

Bespoke Roof and Floor Hatches

+44 (0)1922 711185 Website

Sort by:

Showing 1-36 of 46

Sponsored
Access Covers - Liffey Service Tunnel Project, Dublin, Ireland.

Access Covers - Liffey Service Tunnel Project, Dublin, Ireland.

Surespan

Project:Surespan designed and manufactured several floor access covers for the £6.5m Liffey Service Tunnel Project in Dublin Ireland.The service tunnel is one of the crucial links for the rejuvenation of the docklands, it will carry water mains to the docklands and transfer wastewater to the treatment plant at Ringsend. The 260m tunnel will also carry district heating pipes, gas mains, and electrical and telecommunication cables.Products:Surespan designed and manufactured several floor access covers including SAC Flush floor access covers and HIAC Recessed floor covers.All the access covers were supplied with either a gas spring-assisted opening, hydraulic or electric with a retractable safety grid and pedestrian (FACTA Class ‘A’) Loading. A hydraulic HIAC was also supplied with a FACTA Class ‘D’ Loading which is the equivalent of an 11-tonne wheel load.
Sponsored
AOV for Smoke and Fire Safety

AOV for Smoke and Fire Safety

Surespan

Product:Surespan 140° thermally broken aluminium smoke ventilator and roof hatch designed to EN12101-2. ]The AOV also offers push-button comfort ventilation in one package! This one-stop solution for smoke vent requirements to meet building control can achieve 1m² airflow and is available in standard stocked sizes or made to any size in between 900 x 900 and 1260 x 1260. Wind deflectors to improve airflow. RE 1,000 Ventilation 10,000 Vent Offset mechanism for Roof Access Snow Load SL500 Wind Load WL1500 Temperature Class T (-15°) Fire Resistance B300
Sponsored

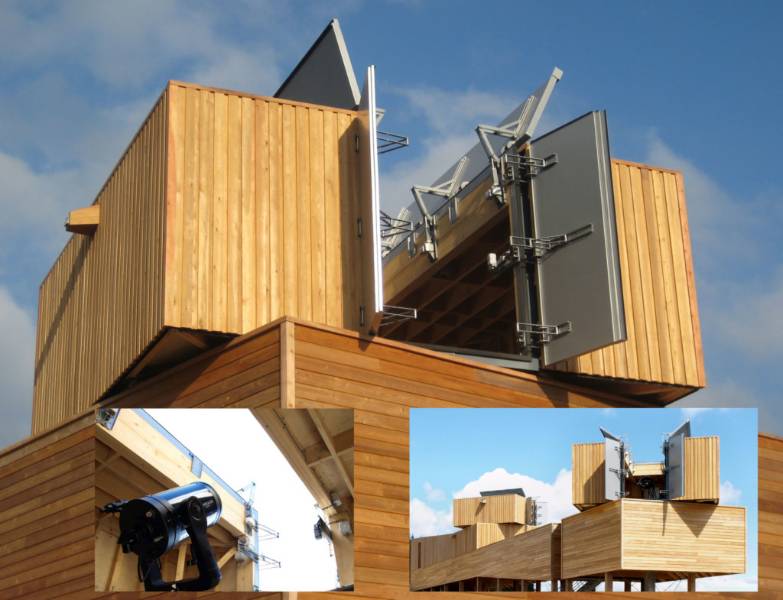

Bespoke Double Leaf Hatch - Kielder Observatory, England

Bespoke Double Leaf Hatch - Kielder Observatory, England

Surespan

IntroductionSurespan design and manufactured two sets of bespoke double leaf hatch doors for the Kielder Observatory located in England’s largest forest in Northumberland. Products suppliedWe supplied;Surespan designed and manufactured two sets of bespoke double leaf hatch doors for the roof and the front of the Observatory’s two rotating turrets – one to house a 20” Pulsar manual telescope and the other for a small Mead 14” telescope. Features:These hatches are electrically operated and have been specially designed to open in a specific sequence using remote control via 24v dc actuators.The projectAs part of the Kielder Art and Architecture program, Charles Barclay Architects designed Kielder Observatory for the Forestry Commission.The all-timber observatory was constructed from Douglas fir with larch cladding, the pier-like building has rotating turrets that house two permanent telescopes and an observation deck. The turrets can be rotated through 360 degrees.The observatory generates its energy using a wind turbine and photovoltaic panels and includes a composting toilet.The observatory has received 2009 awards from the RIBA and The Civic Trust and featured in the inaugural World Architecture Festival.
Sponsored
Bespoke Glazed Access - Stratton House, London

Bespoke Glazed Access - Stratton House, London

Surespan

Surespan is increasingly being asked to provide specialist glazed access and ventilation solutions. Project:The architects working on a project at Stratton House in London, approached Surespan to design and manufacture a“bird wing” style, double-leaf glazed ventilator with concealed operating gear from below. Surespan was chosen for its expertise in producing bespoke products.Product:The operation of each leaf ensured maximum airflow into the building below and smoke release in the event of a fire. Measuring 2500 x 2000mm and polyester powder coated white to match existing building roof furniture.
Sponsored
Bespoke Glazed Roof Access - The McLaren Technology Centre

Bespoke Glazed Roof Access - The McLaren Technology Centre

Surespan

The McLaren Technology Centre hosts a variety of diverse environments including; manufacturing facilities, a futuristic wind tunnel, restaurant, pool, gymnasium, museum, visitor centre, and exhibition and conference areas. Surespan was chosen to design and engineer the making of a 70m diameter glazed roof structure that would act as the roof for the visitor's centre. The structure has two fire escape hatches which would be used in the case of an emergency. The team at Surespan were proud to have been selected for such a project because of their superior engineering expertise and unique skills.
Sponsored

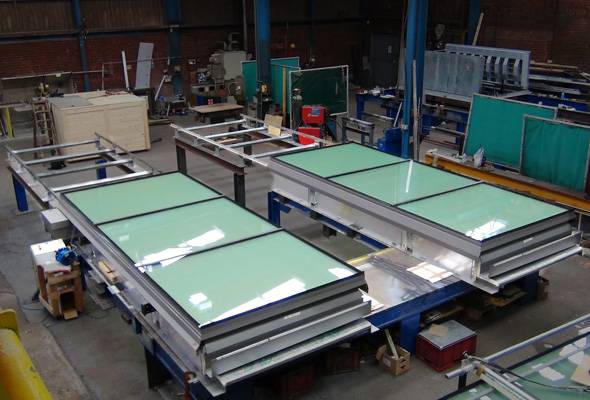

Bespoke Glazed Sliding Roof Hatch - Great Portland Street, London

Bespoke Glazed Sliding Roof Hatch - Great Portland Street, London

Surespan

ProjectSurespan designed and manufactured these huge electrically operated sliding glazed roof hatches also provide free airflow of 7m² for smoke ventilation!These bespoke designs were part of a redevelopment on Great Portland Street in London. The covers were 4610 x 1955mm and featured an electrically driven opening motor.Product: The covers provide 7m² free airflows (As it is sliding there are no obstructions to the ventilation) according to approved document B (fire safety) paragraph 5b diagrams C.7.The glazing features laminated and heat-strengthened low iron glass to L40.A further fixed rooflight was also supplied to the size of 4935mm x 1955mm, the thermally broken multi-pane rooflight provides natural daylight
Sponsored

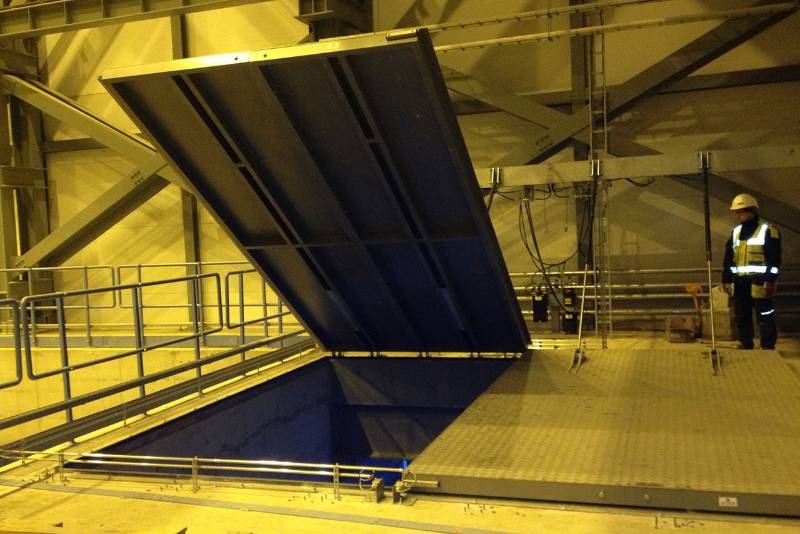

Biomass Access Cover - Lithuania

Biomass Access Cover - Lithuania

Surespan

Surespan recently travelled to Lithuania to manufacture and supply a floor hatch to enable Finnish energy company Fortum to access their biomass pit at their new energy plant.The 5000 x 5000 mm hydraulically operated, the double-leaf hatch was designed to be easily operated by an electrically driven pump power pack. Fortum wanted the simplest operation for a grab crane to gain easy access to the biomass plant so Surespan worked with engineering consultants AF Consult to come up with an effective solution.
Sponsored
Biomass Access Cover - National Justice Centre

Biomass Access Cover - National Justice Centre

Surespan

Project: Surespan custom-designed a hatch to provide access to a Biomass storage plant at the new Criminal Justice Centre, Northampton.Product: The double leaf hatch – measuring 2750mm x 2900mm – is electrically operated by a key switch and has synchronised leaf operation with a safety grid. Rated to FACTA Class A pedestrian loading, it was designed with a chequer plate lid to match the surround and incorporates a rain skirt apron and Sureguard handrail system on both sides. A secondary 1000mm x 1000mm gas spring-operated floor hatch was installed with a retractable hand hold and ladder for safe and easy access.
Sponsored
Boxed Glazed Roof Access - Circle Hospital Bath

Boxed Glazed Roof Access - Circle Hospital Bath

Surespan

Project:Architects Foster + Partners approached Surespan to design and manufacture two roof hatches for Circle Hospital Bath – the new centre of clinical excellence due to open in late 2009. Product:The huge single-leaf glazed roof hatches are electrically operated by push button switches, one hatch incorporating a side door. The high spec glazed lid is supported by heavy-duty aluminium hinges and features an integral ‘wrap over’ edge, incorporating double unbroken EPDM seals. The hatches offer a high level of thermal insulation against heat loss and condensation, together with excellent sound absorption properties.
Sponsored

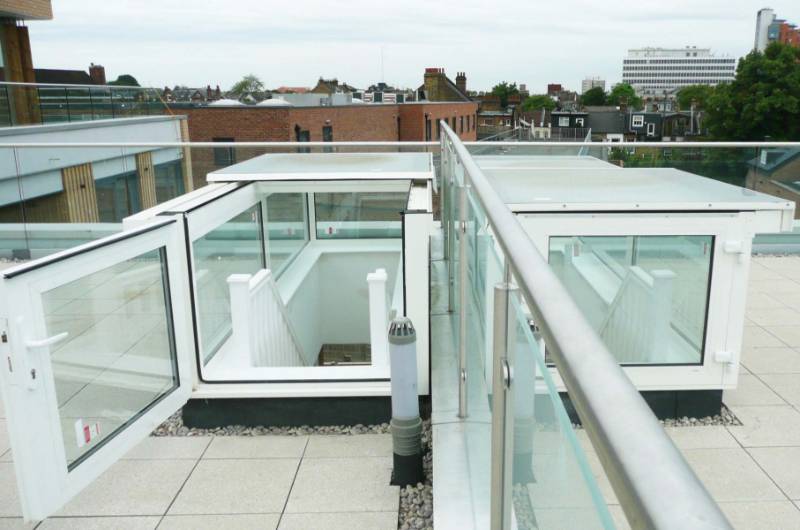

Boxed Glazed Sliding Rooflights - High-End Offices & Apartments, London

Boxed Glazed Sliding Rooflights - High-End Offices & Apartments, London

Surespan

Project:The construction of luxury offices and apartments required a bespoke access solution to the roof.ProductSurespan designed and manufactured a boxed glazed sliding rooflight with a glazed vertical upstand.The sliding lid was operated electrically via concealed 24v DC actuators and a push-button switch. The 35.5mm sealed double glazed unit comprises of Pilkington 6mm toughened K polished all-round outer pane, a 20mm Warm Edge silver spacer bar that is argon filled, and a Pilkington 9.5mm toughened & laminated inner pane. The sealed glazed unit has a U-Value of 1.5 W/m²K.Features:Operated electrically via concealed 24v DC actuators35.5mm sealed double glazedPilkington 6mm toughened K polished20mm Warm Edge silver spacer barPilkington 9.5mm toughened & laminated inner pane. U-Value of 1.5 W/m²K.
Sponsored

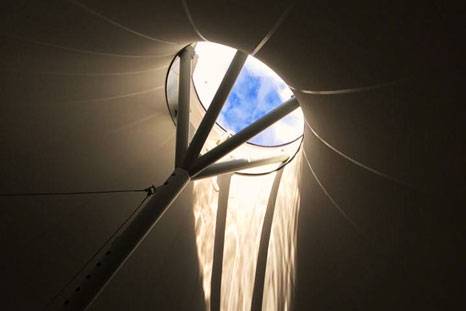

Circular Rooflights - Newcastle University

Circular Rooflights - Newcastle University

Surespan

Surespan supplied a number of circular dome rooflights with triple layers to The Key, situated in the new Science Central development at Newcastle University. These large 1500 (49”) and 2000 (79”) diameter polycarbonate domes feature triple layers providing a U-value of 1.8 W/m²K. The rooflights were supplied with electric opening actuators to allow ventilation to control the temperature of the fabric structure. Surespan Dome skylights were specified due to their high sustainability and small impact on the environment. The triple layers ensure compliance with energy-saving requirements and offer excellent air tightness.
Sponsored
Double Leaf Roof Hatch - National Oilwell Varco

Double Leaf Roof Hatch - National Oilwell Varco

Surespan

IntroductionFollowing consultations with our design team, Surespan designed and manufactured a large double roof hatch for the National Oilwell Varco Dunfermline factory in Scotland.Products suppliedWe supplied;Surespan designed and manufactured bespoke double leaf hatches, measuring 4 metres by 4.3 metres. These hatches enable an external crane to lift the manifold units through the roof.With the use of a key, these hatches are controlled by a small PLC that electrically operates the Hatches in an automated sequence.Features:The bespoke double leaf hatches were specially designed to stay open utilising strut locking to withstand the wind condition they specified with the design team.The projectThe NOV Dunfermline factory experienced difficulties building tall manifold assemblies due to the restricted height of the building. Following a consultation with our experienced design team, they were able to design a solution to solve the issue.The outcome: NOV were able to continue its operation in the existing factory without having to hire temporary premises.
Sponsored

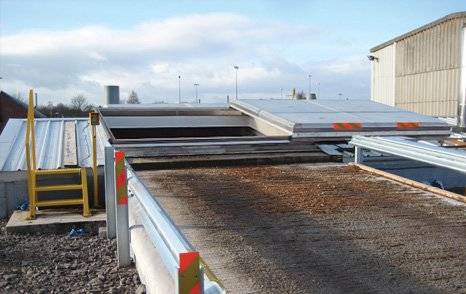

Electrically Sliding Biomass Access - Scotland

Electrically Sliding Biomass Access - Scotland

Surespan

Project:Surespan designed and manufactured a massive Biomass access hatch for a fuel plant in Coatbridge, Scotland.ProductBiomass Cover features an opening 3500 (137?) x 4000 (157?) with a sliding cover features fixed external rails and electric operation. A further two sliding covers were supplied sized 2500 x 4000 and 1500 x 4000mm
Sponsored

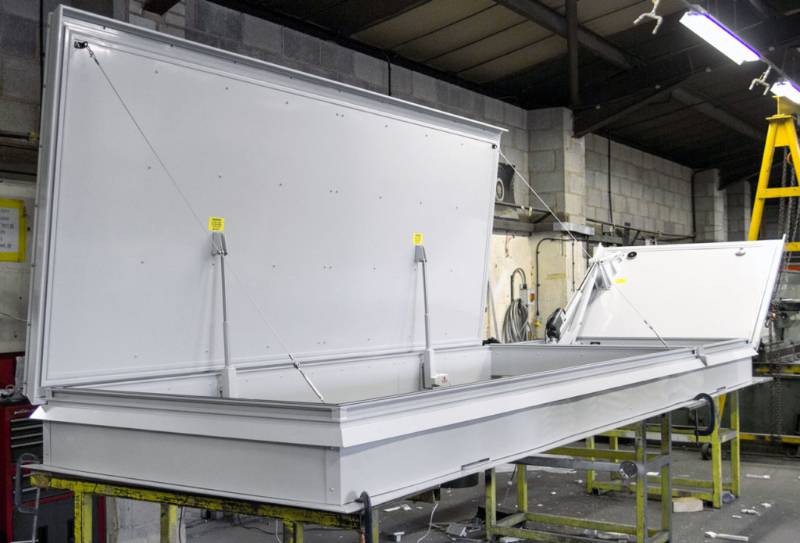

Exi-Vent - Bespoke Roof Access and AOV - London

Exi-Vent - Bespoke Roof Access and AOV - London

Surespan

Project: London Architectural Glazed approached Surespan to design and manufacture bespoke roof access and AOV Hatch. The project had a requirement for a huge 4700 x 1300 Smoke vent with access however due to EN12101-2 testing, Surespan only has CE Certification up to 1800 x 3000mm. Surespan designed a solution which involved combining a large 3628 x 1300 electric roof hatch with a separate 1300 x 1218mm SRHE/AOV unit combined into one frame.
Sponsored

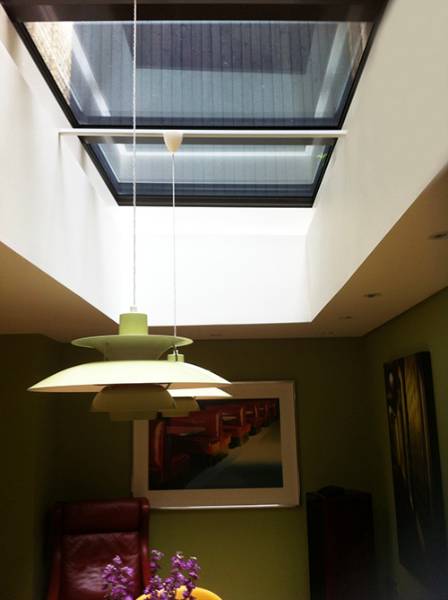

FGL Glazed Rooflight - London

FGL Glazed Rooflight - London

Surespan

Surespan manufactured a FGL non-opening Glazed Rooflight for a residential house in London to fit structural opening 1465 x 4200 which was divided into four panes. The 28.4mm sealed glazed unit will comprise Pilkington Insulight™ Therm comprising 6mm Optifloat™ Clear ‘T’ (toughened), 16mm Argon filled cavity, 6.4mm Pilkington Optilam™ ‘K’ Glass Laminated. This sealed glazed unit has a U-Value of 1.5 W/m²K. This hatch was a new design with thermally broken extruded sections.
Sponsored

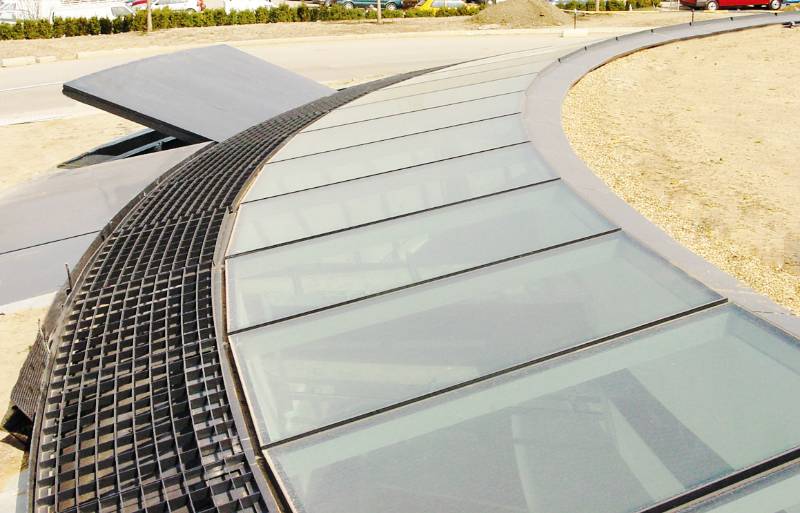

Fire Escape Hatches - Under Ground Metro, Portugal

Fire Escape Hatches - Under Ground Metro, Portugal

Surespan

Project:Surespan manufactured and supplied a series of fire escape hatches at Portugal’s €950 million underground Metro in Porto. The huge double-leaf hatches automatically open if the fire alarm system is activated to allow passengers safe exit to ground level. In addition, they can be manually opened with the touch of a button. This project was undertaken after Surespan successfully carried out similar work at Athens Metro.
Sponsored
Fire Rated Floor Access Covers - Hong Kong International Airport.

Fire Rated Floor Access Covers - Hong Kong International Airport.

Surespan

Project:Surespan were approached to develop and supply a series of 4 hour fire rated flush floor access covers for the Midfield Concourse expansion project at Hong Kong International Airport. The HK$10 Billion dollar project was completed in 2015 following extensive design and planning processes utilising BIM modelling. Product:Our SAC covers were specified for their fire rating and ease of customisation. The covers were specially adapted with a 200mm upstand and enhanced fire-rated materials to achieve the 4-hour rating. Sizes Supplied 1050 (41”) x 1050 (41”) 1050 (41”) x 850 (33”) 750 (29”) x 600 (23”)
Sponsored
Fire Rated Roof Hatch - Killeen, Texas

Fire Rated Roof Hatch - Killeen, Texas

Surespan

Surespan designed and manufactured several fire-rated roof hatches for the Killeen ISD East/West Ward Elementary School, in Killeen Texas.  The Project:Huckabee is the architect behind the East/West Ward Elementary School, tasked with replacing two 60-year-old campuses, by combining them into one new holistic learning environment. The planning behind the architecture focuses on efficiency, function and ease of wayfinding. From simple to navigate corridors, modernised classrooms and glazing to illuminate the interior with natural light. East/West Ward Elementary School blends district design standards with innovative thinking to achieve spacial efficiency and maintain equitability.Product:Surespan designed and manufactured five 35.5-inch x 35.5-inch Fire Rated Roof Hatch with an integral guard hand railing attached. These hatches are thermally broken and have been designed and tested with 4-hour fire resistance for integrity to EN 1634-1:2014.  Features:These hatches are using environmentally friendly materials such as non-combustible minerals and fireboard cladding to achieve a top-performing thermal efficiency. All the hatches were finished in a light grey polyester powder-coated finish for an aesthetically pleasing solution. The coating is set to last many years, just like the durable masonry veneer that is featured in the building, helping to maintain the space for years to come.
Sponsored

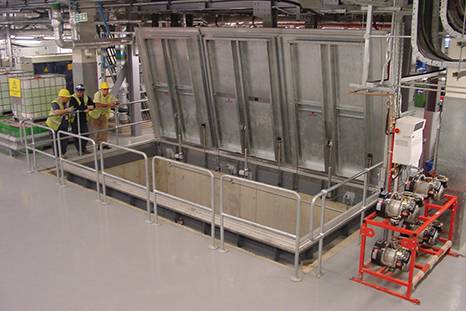

Floor Access Hatch - Heathrow Airport Terminal 5

Floor Access Hatch - Heathrow Airport Terminal 5

Surespan

Surespan has manufactured and supplied a large access hatch in the engine house of Heathrow Airport’s new terminal five. The three-leaf hatch – which measures 6 x 3 metres – can take up to 5kN/m² loading. It has an electric actuator opening which can be activated remotely and is fire rated for up to two hours. Bill Burke, Contracts Manager at Heathrow Airport said: “We were very impressed with Surespan’s proactive approach throughout the whole project. The hatch has been well received by the authorities at Heathrow”
Sponsored
Floor and Roof Hatch Covers-  Presidential Palace, Abu Dhabi

Floor and Roof Hatch Covers- Presidential Palace, Abu Dhabi

Surespan

Surespan manufactured and supplied over 86 different access hatches including;Hydraulic HIAC coversStainless Steel Internal HIAC coversStainless Steel Roof HatchesThe HIAC hatches were primarily 1800 x 1800mm and were rated FACTA Class ‘B’ vehicle loading. They were hand pump operated via hydraulic cylinders. A further 70+ covers were manufactured in stainless steel to fit 1220 x 1220mm with 50mm and 80mm recesses. The internal HIAC was 600 x 600mm and featured gas spring assistance, 20mm recess for marble and a polished stainless steel top trim.The Roof Hatches supplied were 800 x 900 and 600 x 600mm stainless steel and were fire-rated for up to 2 hours. They were powder-coated RAL 9010.
Sponsored

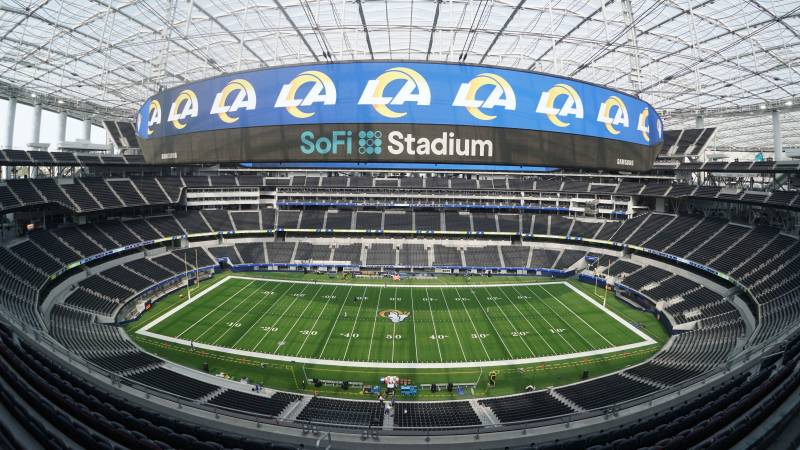

Flush Floor Access Hatch - SoFi Stadium, Inglewood, LA

Flush Floor Access Hatch - SoFi Stadium, Inglewood, LA

Surespan

Surespan designed and manufactured four access products for the SoFi Stadium in Inglewood, California The Project:HKS Architects were behind the architectural design of the stadium by creating an unrivalled sports and entertainment destination. The 5-billion-dollar stadium has created a diverse event space that offers an unparalleled experience from enjoying cocktails and food to immersive sporting events.The stadium offers a ground-breaking video experience that became the first venue to air live football on its roof. Furthermore, the centre-hung Samsung screen is the world’s first halo video board that is roughly 70,000 square-foot, dual-sided and is considered the most LEDs ever used in a sports and entertainment venue.The SoFi Stadium will be hosting several global events from the Super Bowl LVI 2022, 2026 FIFA World Cup and 2028 Summer Olympics opening and closing ceremonies.The Product:Surespan designed and manufactured four access products.  Two electrically operated, double leaf, flush floor hinged access covers to suit an overall frame size of 4267 x 1768mm.  Two electrically operated, double-leaf ceiling access panels to suit an overall frame size of 4267 x 1768mm. The lids have been designed to open downwards.
Sponsored

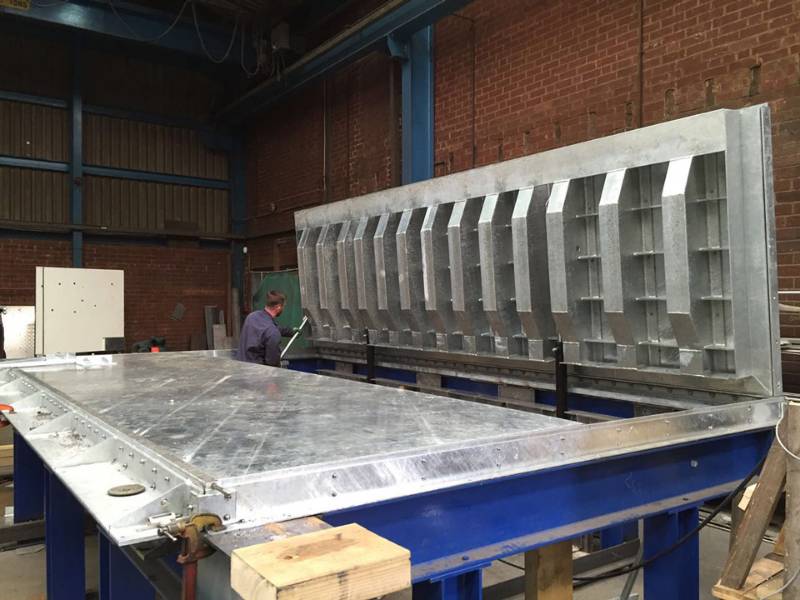

Flush Heavy Duty - Yale University

Flush Heavy Duty - Yale University

Surespan

Background Infomation:Wright Lab: Exploring the Invisible UniverseSurespan designed and manufactured a flush floor hatch for the Yale University Wright Laboratory, home to Yale’s iconic particle accelerator, the 100-foot-long atom smasher. In 1987 it was the most powerful particle accelerator in the world and led the research in astrophysics. The Atom Smasher was shut down in 2011 and disassembled in 2014.The projectAs part of a comprehensive renovation, Christopher Williams Architects LLC transformed the concrete bunker-like structure into a series of day-lit workspaces. The central building was opened to become a place where scientists, students and experts could interact. This space also hosts events and researchers from around the world. The design brings natural light into the building and emphasizes collaboration through transparency.Products:Surespan designed and manufactured a 2.7m x 4.5m (9ftx15ft) stainless steel flush floor hatch. The floor door has been reinforced to support a live slow-moving wheel load of 17 tons. (FACTA Class E)Due to the weight of the floor door, the hatch is operated via a hydraulic cylinder and an electrically driven power pack. The finished cover uses Sure-Grip anti-slip surface coating.
Sponsored

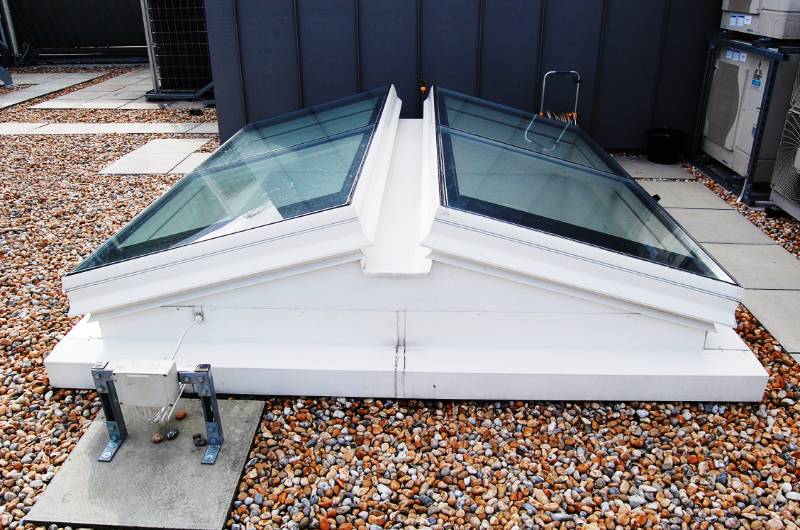

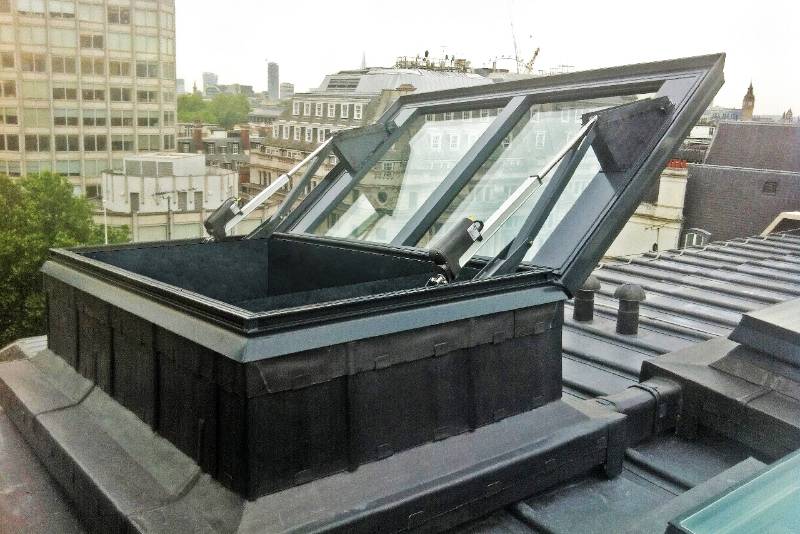

Glazed AOV Smoke Vent - London

Glazed AOV Smoke Vent - London

Surespan

Product:140° degree opening glazed smoke ventilation up to 3m x 1.2m. Here installed and commissioned in a newly upgraded prestigious London address. CE Marked and Certified to EN 12101-2. The AOV features concealed actuators along with a double-glazed top. 1.5 W/m²K Double Glazed Lid Custom made to any size up to 3m x 1.9m
Sponsored

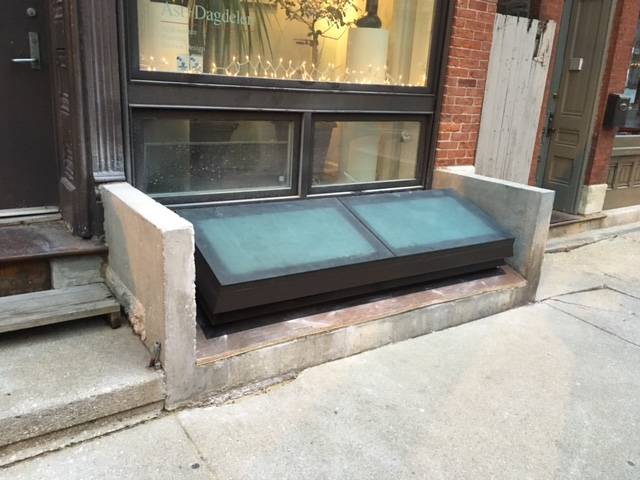

Glazed Basement Access - Architectural Studio,  Chicago

Glazed Basement Access - Architectural Studio, Chicago

Surespan

Project:Ast+Dagdelen Architects approached Surespan to manufacture a glazed walk-on basement skylight for use at ground level to bring light and a means of delivery access for materials and goods to their model workshop which is situated beneath their architectural practice. Product:The single leaf 500 (19.5?) x 2400mm (95.5?) electrically operated and thermally broken access hatch featured TripleLite 34mm double glazing with a 1.4kN concentrated pedestrian load. The hatch was finished in a polyester powder coating to match Valspar Bronze.
Sponsored
Glazed Roof Access Hatches - 97& Park, Sweden

Glazed Roof Access Hatches - 97& Park, Sweden

Surespan

Surespan designed and manufactured Glazed Roof Hatches with fixed glazed sections and a vertical end door for the 79&Park residential.The projectOscar Properties commissioned BIG (Bjarke Ingels Group) to design and construct 79& Park residential building. The building is located on the edge of Gärdet, a treasured national park. The architects made conscious decisions throughout the process to provide a sensitive, respectful building with exceptional residences with spectacular views.All Oscar Properties projects aim to add value to the city and the surrounding environment.  79&Park architecture appears like an extension of the park, a gentle hillside seamlessly blending into the nature around it. The project was named Europe’s best housing project in the Internationally recognised real estate competition The International Property Awards.ProductSurespan designed and manufactured multiple glazed roof access hatches in various sizes including 2200 x 2115, 3160 x 1553, and 4175 x 1025.  As part of the glazed roof hatches a vertical door was designed for easy access to the roof spaces. The final glazed hatches were finished off with a polyester powder-coated finish.  Features:These glazed roof hatches feature a specialist sensory control panel. A 1-minute warning sound is activated when rain is detected, and a movement sensor prevents the closing of the hatch. Other features include opening in case of a fire and a keycode pad for exiting.
Sponsored

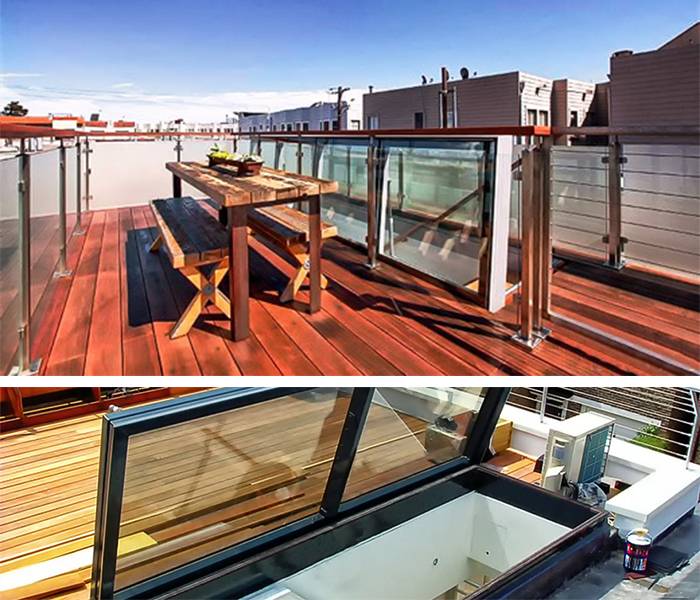

Glazed Roof Hatch - San Francisco

Glazed Roof Hatch - San Francisco

Surespan

ProjectSurespan manufactured and supplied a double-glazed access hatch for use on a private residential apartment in downtown San Francisco. ProductThe 915 (36”) x 4115 (162”) hatch was electrically operated for easy operation and allowed easy access to the roof deck for Al Fresco dining in the Californian sun. “The glass hatch is one of the best features of the house.” Glazed hatches feature a frameless design eliminating water ponding. The 28.4mm sealed glazed unit comprised of Pilkington Insulight™ Therm, 6mm Optifloat™ Clear ‘T’ (toughened), 16mm Argon filled cavity, 6.4mm Pilkington Optilam™ ‘K’ Glass Laminated glass.
Sponsored

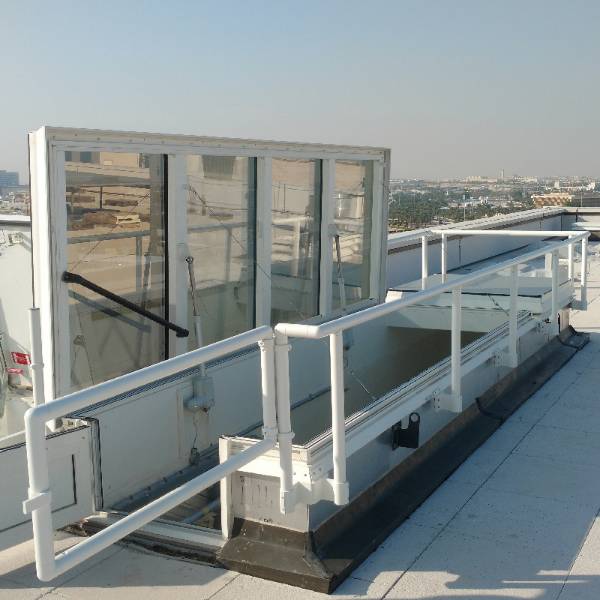

Glazed Roof Hatches -Downtown Doha

Glazed Roof Hatches -Downtown Doha

Surespan

Project:Downtown Doha is a multimillion-pound scheme to regenerate the Downtown Doha district. Surespan supplied a wide number of electrically operated glazed roof hatches along with solid top roof access hatches. Product:Sizes included a 3310 x 1120, 4320 x 1110, 3245 x 760, 1098 x 4330mm and the biggest size came in at 4462 x 6654mm. All the hatches were provided powder coated using the Interpon D series for enhanced durability. In addition, a variety of other products including wall & ceiling access panels were manufactured from Stainless steel. The largest panel was 2700 x 1600mm manufactured as a double door.
Sponsored
Glazed Rooflights -  The Glasshouse Putney, London

Glazed Rooflights - The Glasshouse Putney, London

Surespan

The Brief Our client, architect Scott Brownrigg, wanted glazed roof lights for properties within The Glasshouse, an exclusive new housing development in Putney, London to provide natural daylight and allow residents safe and easy access onto their roof terraces. The solution Surespan worked closely with Scott Brownrigg to design the roof lights to ensure they were in keeping with the style of the contemporary building. They were set to automatically open with the touch of a button so residents could easily and safely step out onto their roof terrace.
Sponsored

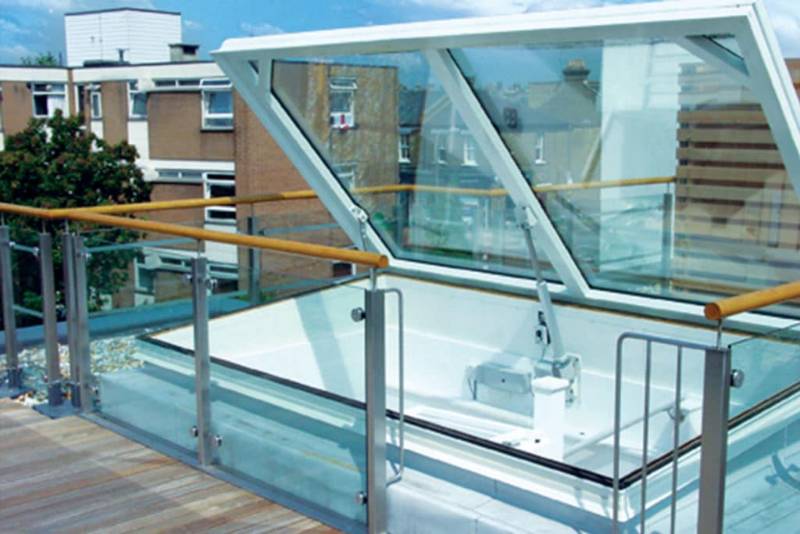

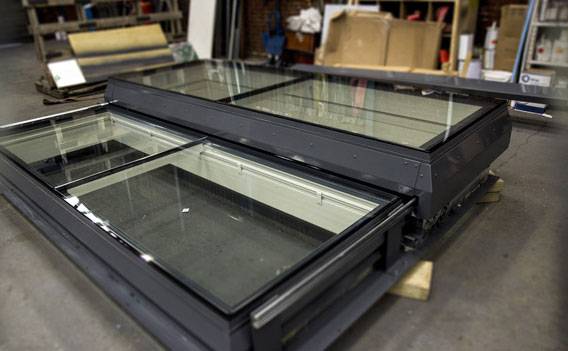

Glazed Sliding Roof Hatch - London

Glazed Sliding Roof Hatch - London

Surespan

Surespan manufactured a double-glazed sliding access hatch for use in a private residential apartment in London. Product2640 (103?) x 2020mm (79?) hatch was electrically operated via a key switch for easy operation and allowed access to the roof providing views across the London skyline. The sliding cover was finished in grey external polyester powder coating with a white internal finish. The 35.5mm sealed double glazed unit comprised of Pilkington 6mm toughened K polished all-round outer pane, 20mm Warm Edge silver spacer Bar argon filled, Pilkington 9.5mm toughened & laminated inner pane, divided into two panes.
Sponsored

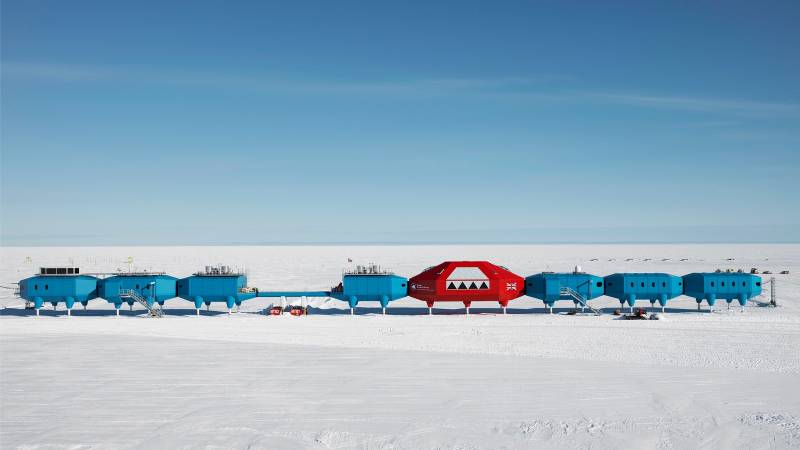

Halley VI - Accessing the Antarctica

Halley VI - Accessing the Antarctica

Surespan

Surespan designed and manufactured multiple recessed floor access hatches, for the construction of the Halley VI British Antarctic Research Station.Products suppliedSurespan design and manufactured a total of 27 HIAC Recessed Floor Hatches. These hatches provide the access an escape requirement for the structure and are located throughout the research station.We supplied;12no HIAC DL/FR30 1180 x 10707no HIAC DL /FR30 1180 x 10703no HIAC 800 Diameter FR304no HIAC 750 x 750 Lift Out FR601no. HIAC 1000 x 1000 FR30 The Features:The hatches supplied feature a fire rating of between 30-60 minutes and radius corners instead of the standard square corners. The projectThe £22 million unique and innovative research station was designed by Faber Maunsell and Hugh Broughton Architects, and built by Matlock-based Morrison Construction.Objectives;Minimize the environmental footprint of the station.Provide a safe, comfortable, and stimulating environment to live in.To be able to be fully relocatable inland.To allow the station to climb above the annually rising snow levels. The research station comprises seven interlinked modules on hydraulic legs fitted with skis, enabling the units to be towed into new positions. The blue modules contain bedrooms, laboratories, and office areas. The red module features a brightly lit, double-height space that is used for social activities.Halley Vi is the world’s first re-locatable and award-winning research facility providing scientists with state-of-the-art laboratories and living accommodation.
Sponsored
Heavy Duty Access Covers

Heavy Duty Access Covers

Surespan

The UK’s leading access hatch manufacturer Surespan has launched a new range of heavy-duty access covers which are designed to support loading up to 16 tonnes. The aluminium alloy hatches can take loadings ranging from 5 to 19 tonnes (FACTA class B to E) and are available in standard single and double leaf sizes. They are gas spring operated, making them easy to open, and come with a range of locking options, including Surespan’s unique locking box.
Sponsored
HIACE Single Leaf Hatch - Residential Home Floor Access

HIACE Single Leaf Hatch - Residential Home Floor Access

Surespan

ProjectSurespan designed and manufactured a single leaf hatch that was installed in a residential home in Solihull, for access to an underground level gym.ProductThe HIACE external single leaf access hatch to fit a structural opening 1200 x 3400. The pan-type door was recessed for 40mm paving slabs infill with an EPDM unbroken seal to help prevent the ingress of dirt and moisture. The floor hatch was fitted with a retractable safety grid operated by a 24v actuator. FeaturesRated at pedestrian loading, operated by two 24v DC Actuators. 40mm paving slabs infill. Retractable safety grid Supplied with a Zen-controlled 240vAC/24vDC electrical supply, and transformer.
Sponsored

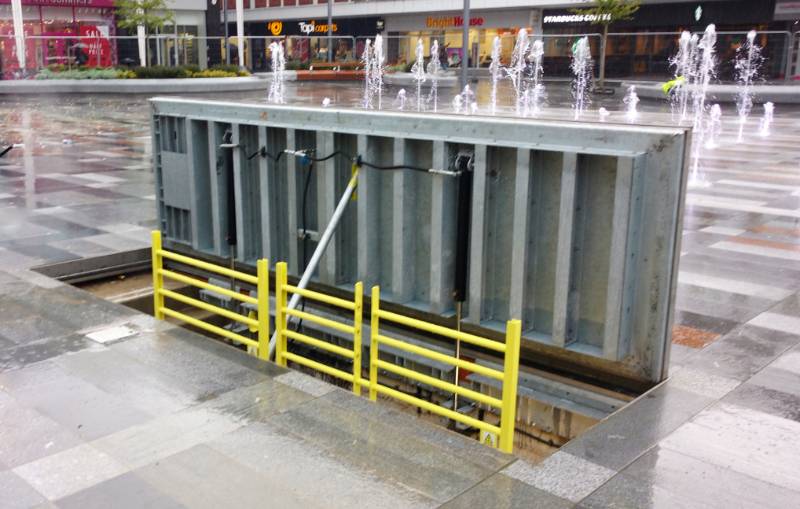

HLAC Access Hatch - Queens Square, Crawley

HLAC Access Hatch - Queens Square, Crawley

Surespan

Project:Surespan manufactured a single leaf HLAC recessed access hatch to Queens Square in Crawley, part of a £3.2 million project. ProductSurespan manufactured an 80mm access hatch to fit a structural opening of 1000 x 3500 is operated by hydraulic cylinders and a hand pump. The operation will be by an electrically driven single power pack, including a push-button or key switch. Oil supply to the cylinders will be from a hydraulic mini-pack that can be remotely or locally sited. A retractable safety grid was also installed on three open sides, manually operated.
Sponsored

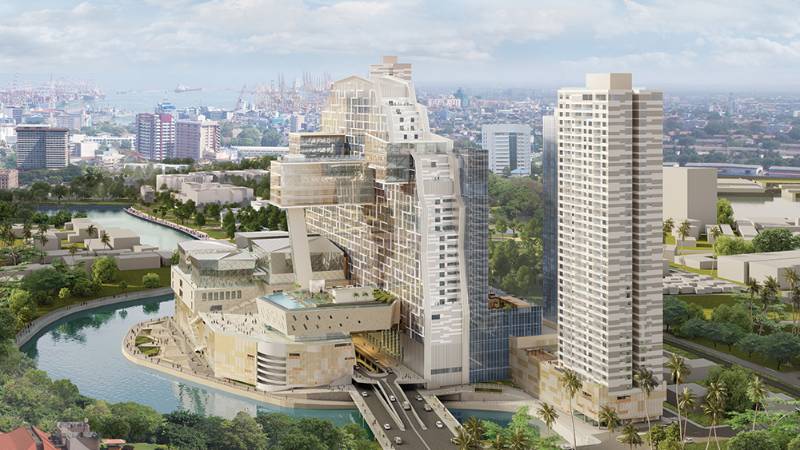

Recessed Floor Door - Waterfront Integrated Resort Project, Colombo, Sri Lanka

Recessed Floor Door - Waterfront Integrated Resort Project, Colombo, Sri Lanka

Surespan

Surespan have recently completed the design and manufacturing of a large stainless steel hydraulic opening recessed floor door for a project in Sri-Lanka.The ProjectThe $850 million Waterfront integrated Resort (Cinnamon Life) is Sri Lanka’s largest and most iconic mixed development, located in the capital city of Colombo. Balmond Studio has designed and constructed the resort as a ‘city within a city’ offering two 5-star luxury hotels, offices, residences and premium retail and entertainment. They hope the resort will become one of the iconic and identifiable landmarks in Asia.The no-limits project is symbolic of Sri Lanka’s ambition, drive, and growth. The ProductSurespan were approached to manufacture the hatch to suit an opening of 6.5m by 4.1m and capable of withstanding a slow-moving wheel load of 10kN/m2. The pan-type door will be re-cessed for receiving 30mm of Natural Stone Slab infill with an approximate infill weight of 2 tonnes.Features The largest recessed floor hatch has been manufactured to provide a theoretical sound reduction of 45dB. To assist with installation, lifting points were designed to the frame exterior.
Sponsored

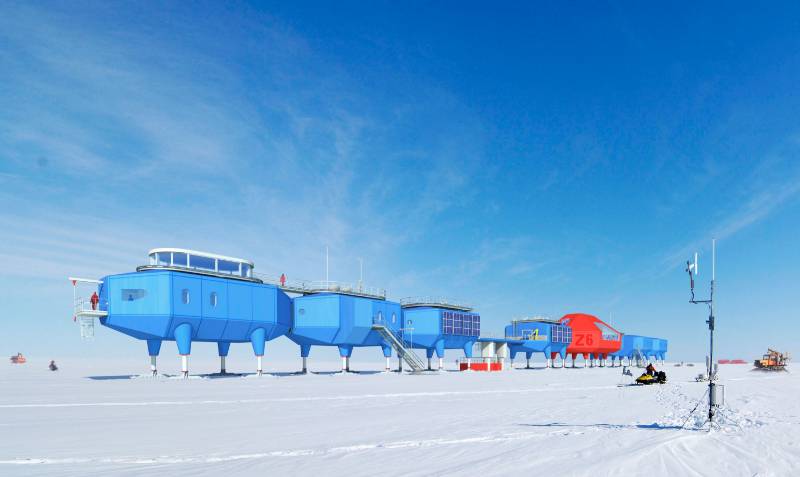

Recessed Floor Hatches - Halley VI, Antarctica

Recessed Floor Hatches - Halley VI, Antarctica

Surespan

IntroductionSurespan designed and manufactured multiple recessed floor access hatches, for the construction of the Halley VI British Antarctic Research Station.Products suppliedSurespan designed and manufactured a total of 27 HIAC Recessed Floor Hatches. These hatches provide access and escape requirements for the structure and are located throughout the research station.We supplied;12no HIAC DL/FR30 1180 x 10707no HIAC DL /FR30 1180 x 10703no HIAC 800 Diameter FR304no HIAC 750 x 750 Lift Out FR601no. HIAC 1000 x 1000 FR30 The Features:The hatches supplied feature a fire rating of between 30-60 minutes and radius corners instead of the standard square corners. The projectThe £22 million unique and innovative research station was designed by Faber Maunsell and Hugh Broughton Architects, and built by Matlock-based Morrison Construction.Objectives;Minimize the environmental footprint of the station.Provide a safe, comfortable, and stimulating environment to live in.To be able to be fully relocatable inland.To allow the station to climb above the annually rising snow levels. The research station comprises seven interlinked modules on hydraulic legs fitted with skis, enabling the units to be towed into new positions. The blue modules contain bedrooms, laboratories, and office areas. The red module features a brightly lit, double-height space that is used for social activities.Halley Vi is the world’s first re-locatable and award-winning research facility providing scientists with state-of-the-art laboratories and living accommodation.
Sponsored
Roof Access Hatches - Abu Dhabi Airport

Roof Access Hatches - Abu Dhabi Airport

Surespan

Abu Dhabi Airport Company signed a contract for the construction of infrastructure integral to the Abu Dhabi International Airport expansion. The project was set to be delivered across multiple work fronts including airside and landside airport operational areas. Surespan was asked to supply a number of 2-hour fire-rated, FACTA Class AA, SAC floor hatches with a free-standing guard rail to three sides and a hinged gate. In addition to this, a number of Grade 304 Stainless Steel roof hatches with a unique ‘sandblasted’ finish and built-on non-penetrative SureGuard hand railing were also supplied.
