Summary
Acoustic control chiller stack and pergolas to reduce upward sound propagation.
Acoustic control chiller stack and pergolas to reduce upward sound propagation.
Application
Suitable for use externally over up-blast chiller fans.
Suitable for use externally over up-blast chiller fans.
Description
NOISEBLOCK™ chiller stacks and pergolas control upward sound propagation from up-blast chiller fans, delivering an estimated 12–15 dBA reduction at ultra-low pressure drop allowing equipment to operate unaffected.
Features and benefits:
- Controls upwards sound propagation.
- 12–15 dBA reduction.
- Stack self-supported, separate from chiller.
- Bolted construction, no welding required.
- Stack is constructed of NOISEBLOCK 4-inch thick panels, 16 gauge solid and 22 gauge perforated, galvanized sheet steel.
- NOISEBLOCK pergola panels are 22 gauge solid and 22 gauge perforated, galvanized sheet steel.
- Insulating media suitable for wet/ dry, freeze/ thaw cycling.
- Factory powder-coated per selection of Kinetics standard colours.
NOISEBLOCK™ chiller stacks and pergolas control upward sound propagation from up-blast chiller fans, delivering an estimated 12–15 dBA reduction at ultra-low pressure drop allowing equipment to operate unaffected.
Features and benefits:
- Controls upwards sound propagation.
- 12–15 dBA reduction.
- Stack self-supported, separate from chiller.
- Bolted construction, no welding required.
- Stack is constructed of NOISEBLOCK 4-inch thick panels, 16 gauge solid and 22 gauge perforated, galvanized sheet steel.
- NOISEBLOCK pergola panels are 22 gauge solid and 22 gauge perforated, galvanized sheet steel.
- Insulating media suitable for wet/ dry, freeze/ thaw cycling.
- Factory powder-coated per selection of Kinetics standard colours.
Color
Silver, Other
Silver, Other
Finish
Powder-coated, Galvanized
Powder-coated, Galvanized
Material
Steel
Steel
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
Specification
Classification data
System manufacturer
CMS Danskin Acoustics.
CMS Danskin Acoustics.
System reference
Kinetics® NOISEBLOCK™.
Kinetics® NOISEBLOCK™.
System performance
Acoustic performance.
Acoustic performance.
System components
-
-
Support structure
Bolt together self supporting leg frame structure.
Bolt together self supporting leg frame structure.
Vertical cladding or screening
-
-
Vertical framing
Galvanized sheet steel.
Galvanized sheet steel.
Cladding or screening

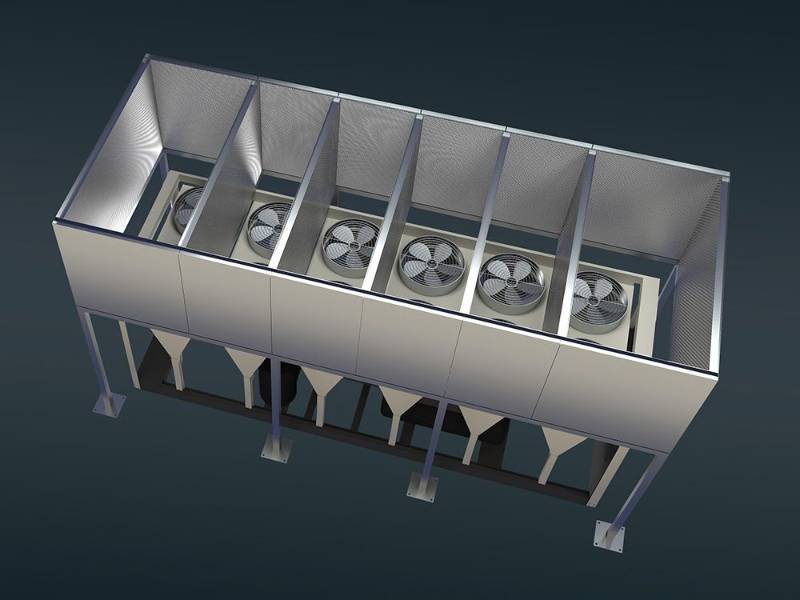

NOISEBLOCK Stack 101.6 mm (4 inch) thick panels, 16 gauge solid and 22 gauge perforated, galvanized sheet steel.
-
Openings
Opened sided, full surround chiller stack.
-
Roof or canopy
-
-
Roof framing
Galvanized sheet steel.
Galvanized sheet steel.
Cladding or screening
-

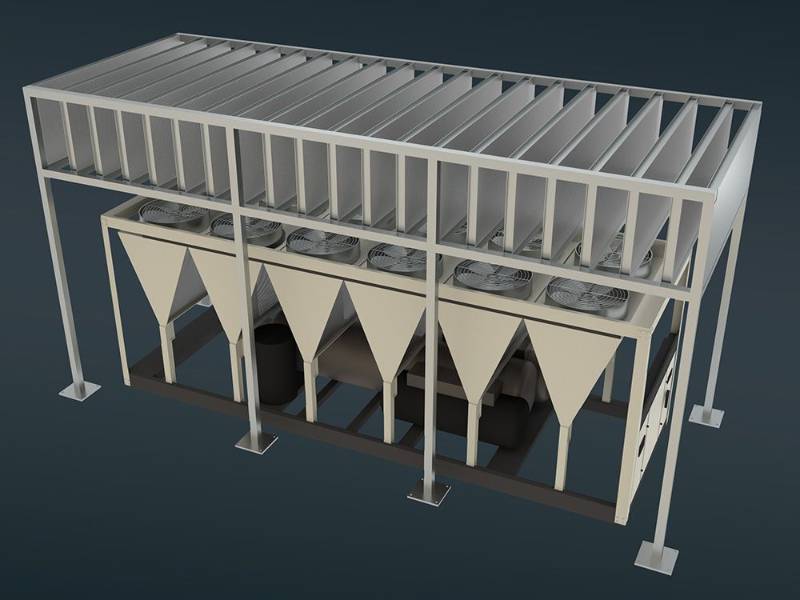

NOISEBLOCK pergola: 22 gauge solid and 22 gauge perforated, galvanized sheet steel.
Openings
-
Open sided acoustic pergola.
Additional properties
Sound reduction
12–15 dBA.
12–15 dBA.
Frame finish
Galvanized., Powder-coated.
Galvanized., Powder-coated.
Colour
Not required., Insert requirements.
Not required., Insert requirements.
Panel finish
Galvanized., Powder-coated.
Galvanized., Powder-coated.
Colour
Not required., Insert requirements.
Not required., Insert requirements.
Sustainability data
Material
Steel
Steel
