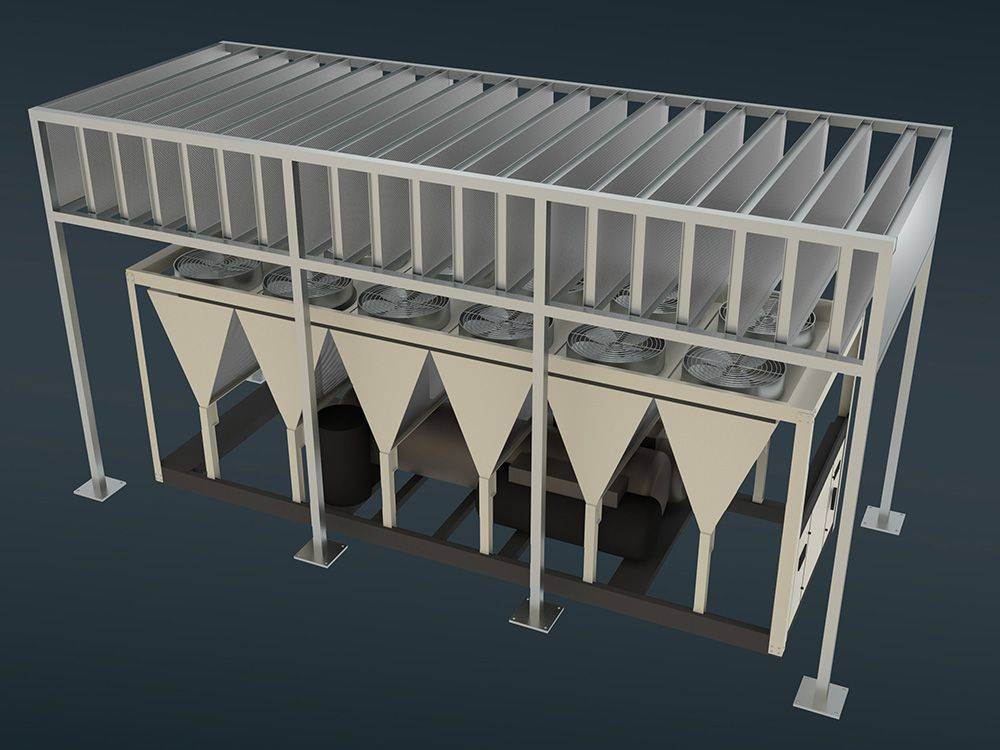

NOISEBLOCK Pergolas
NOISEBLOCK Pergolas
Acoustic control chiller stack and pergolas to reduce upward sound propagation.
Application
Suitable for use externally over up-blast chiller fans.
Description
NOISEBLOCK™ chiller stacks and pergolas control upward sound propagation from up-blast chiller fans, delivering an estimated 12–15 dBA reduction at ultra-low pressure drop allowing equipment to operate unaffected.
Features and benefits:
- Controls upwards sound propagation.
- 12–15 dBA reduction.
- Stack self-supported, separate from chiller.
- Bolted construction, no welding required.
- Stack is constructed of NOISEBLOCK 4-inch thick panels, 16 gauge solid and 22 gauge perforated, galvanized sheet steel.
- NOISEBLOCK pergola panels are 22 gauge solid and 22 gauge perforated, galvanized sheet steel.
- Insulating media suitable for wet/ dry, freeze/ thaw cycling.
- Factory powder-coated per selection of Kinetics standard colours.
General information
Color | Silver Other |
Finish | Powder-coated Galvanized |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | B91/370 Pergola/ arbour B91/330 Canopy |
Specification data - Plant enclosure and platform systems
Classification data | |
System manufacturer | CMS Danskin Acoustics. |
System reference | Kinetics® NOISEBLOCK™. |
System performance | Acoustic performance. |
System components | |
Support structure | Bolt together self supporting leg frame structure. |
Vertical cladding or screening | |
Vertical framing | Galvanized sheet steel. |
Cladding or screening | NOISEBLOCK pergola: 22 gauge solid and 22 gauge perforated, galvanized sheet steel. |
Openings | Open sided acoustic pergola. |
Roof or canopy | |
Roof framing | Galvanized sheet steel. |
Ancillary components | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Sound reduction | 12–15 dBA. Guidance for specification option: At 1524 mm (5 foot). |
Frame finish | Galvanized. Powder-coated. |
Colour | Not required. Guidance for specification option: (Galvanized). Insert requirements. Guidance for specification option: Available in selection of Kinetics standard colours, consult manufacturer and insert requirements. Manufacturer guidanceFrame colour. |
Panel finish | Galvanized. Powder-coated. |
Colour | Not required. Guidance for specification option: (Galvanized). Insert requirements. Guidance for specification option: Available in selection of Kinetics standard colours, consult manufacturer and insert requirements. Manufacturer guidancePanel colour. |
Sustainability data
Material | Steel |
