Kinetics® NOISEBLOCK™ - Chiller Stacks and Pergolas
Verified by manufacturer 15 days ago

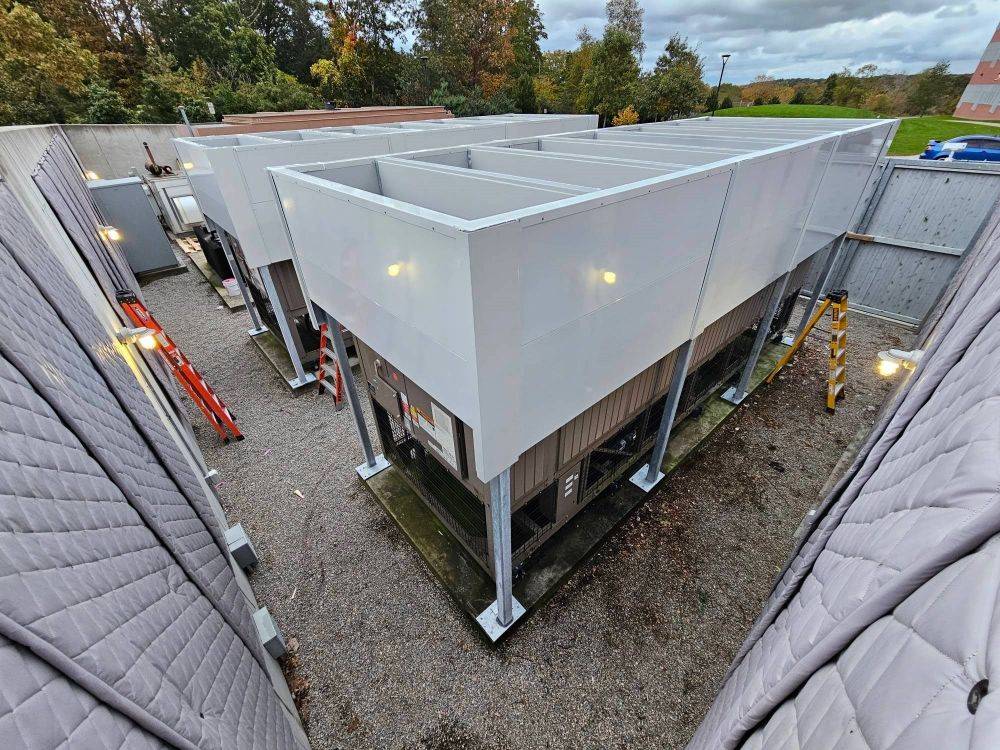

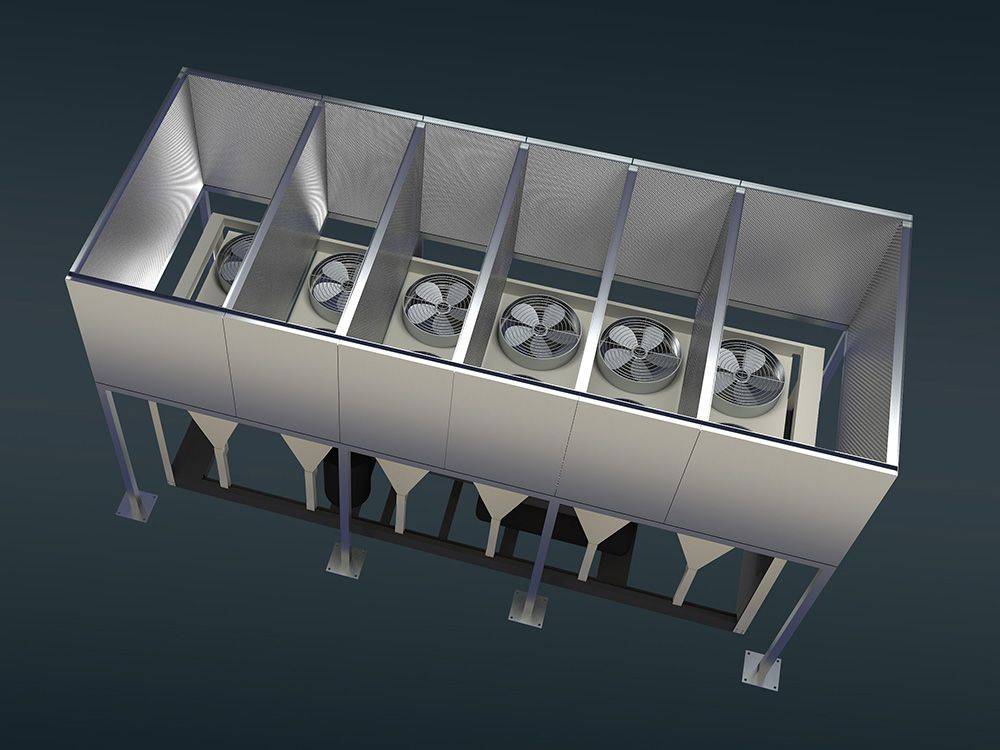

NOISEBLOCK Chiller Stacks
NOISEBLOCK Chiller Stacks
Acoustic control chiller stack and pergolas to reduce upward sound propagation.
Application
Suitable for use externally over up-blast chiller fans.
Description
NOISEBLOCK™ chiller stacks and pergolas control upward sound propagation from up-blast chiller fans, delivering an estimated 12–15 dBA reduction at ultra-low pressure drop allowing equipment to operate unaffected.
Features and benefits:
- Controls upwards sound propagation.
- 12–15 dBA reduction.
- Stack self-supported, separate from chiller.
- Bolted construction, no welding required.
- Stack is constructed of NOISEBLOCK 4-inch thick panels, 16 gauge solid and 22 gauge perforated, galvanized sheet steel.
- NOISEBLOCK pergola panels are 22 gauge solid and 22 gauge perforated, galvanized sheet steel.
- Insulating media suitable for wet/ dry, freeze/ thaw cycling.
- Factory powder-coated per selection of Kinetics standard colours.
General information
Color | Silver Other |
Finish | Powder-coated Galvanized |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | B91/370 Pergola/ arbour B91/330 Canopy |
Specification data - Plant enclosure and platform systems
Classification data | |
System manufacturer | CMS Danskin Acoustics. |
System reference | Kinetics® NOISEBLOCK™. |
System performance | Acoustic performance. |
System components | |
Support structure | Bolt together self supporting leg frame structure. |
Vertical cladding or screening | |
Vertical framing | Galvanized sheet steel. |
Cladding or screening | NOISEBLOCK Stack 101.6 mm (4 inch) thick panels, 16 gauge solid and 22 gauge perforated, galvanized sheet steel. |
Openings | Opened sided, full surround chiller stack. |
Roof or canopy | |
Roof framing | Galvanized sheet steel. |
Ancillary components | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Sound reduction | 12–15 dBA. Guidance for specification option: At 1524 mm (5 foot). |
Frame finish | Galvanized. Powder-coated. |
Colour | Not required. Guidance for specification option: (Galvanized). Insert requirements. Guidance for specification option: Available in selection of Kinetics standard colours, consult manufacturer and insert requirements. Manufacturer guidanceFrame colour. |
Panel finish | Galvanized. Powder-coated. |
Colour | Not required. Guidance for specification option: (Galvanized). Insert requirements. Guidance for specification option: Available in selection of Kinetics standard colours, consult manufacturer and insert requirements. Manufacturer guidancePanel colour. |
Sustainability data
Material | Steel |
