Gypsum board wall lining systems
Find and specify gypsum board wall lining systems from top manufacturers with NBS Source. Browse 153 products that are ready to use on your projects. Classification Ss_25_25_45_35.
Can't find what you're looking for?
Recently verified
Showing 73-108 of 153

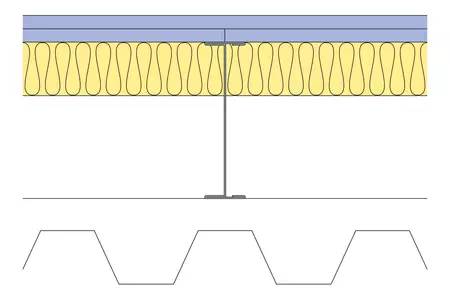

GypLyner Independent - B216004 (E) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 92 I 90 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.

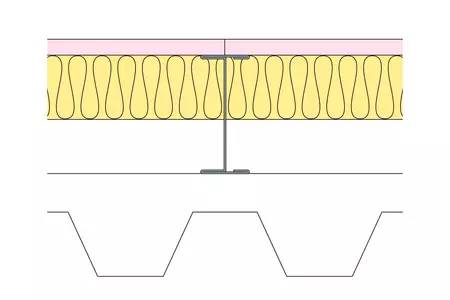

GypLyner Independent - B216025 (E) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc FireLine 12.5mm to one side of Gypframe 92 I 90 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Dab - RF-PIR (D) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine PIR 78mm on Gyproc Sealant (3mm nominal cavity) on existing plastered walls, level brick, block or fair faced concrete.
DriLyner Dab - TL-PLUS (A) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine Plus 27mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background

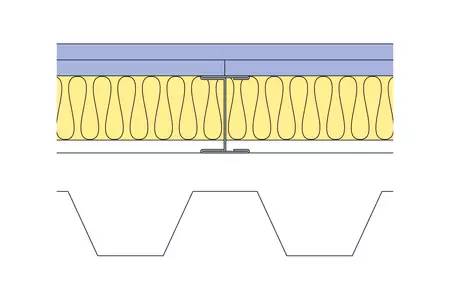

GypLyner Independent - B216003 (F) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc WallBoard 12.5mm to one side of Gypframe 146 I 80 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Dab - TL-PLUS (B) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine Plus 35mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Single - B226007 (EN)
Verified 7 months ago
British Gypsum
100mm solid block wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to one side to give 85mm cavity with 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity clad with one layer of Gyproc SoundBloc 12.5mm.
GypLyner Independent - B216004 (D) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 70 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Dab - TL-PIR (D) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine PIR 78mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Independent - B216004 (C) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3900mm.
GypLyner Independent - B216025 (F) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc FireLine 12.5mm to one side of Gypframe 146 I 80 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Independent - B216003 (E) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc WallBoard 12.5mm to one side of Gypframe 92 I 90 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Single - B226005 (EN)
Verified 7 months ago
British Gypsum
100mm solid block wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to one side to give 85mm cavity with 50mm Isover Acoustic Partition Roll (APR 1200) in the cavity clad with two layers of Gyproc SoundBloc 12.5mm.
GypLyner Independent - B216004 (F) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 146 I 80 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Independent - B216026 (C) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc FireLine 15mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3300mm.
DriLyner Fix - MF (B) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc WallBoard 12.5mm fixed to Gypframe MF10 Channel on Gyproc DriWall Adhesive dabs (20mm nominal cavity) on solid masonry background
GypLyner Independent - GIWL 146 I 80 PIR (B) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine PIR 38mm to one side of Gypframe 146 I 80 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 6900mm.
GypLyner Independent - GIWL 146 I 80 PIR (A) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine PIR 38mm to one side of Gypframe 146 I 80 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 4200mm.
DriLyner Dab - BASIC (C) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc WallBoard 15mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Independent - B216006 (B) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3300mm.
DriLyner Fix - MF (C) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc WallBoard 15mm fixed to Gypframe MF10 Channel on Gyproc DriWall Adhesive dabs (20mm nominal cavity) on solid masonry background
GypLyner Independent - B216003 (D) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc WallBoard 12.5mm to one side of Gypframe 70 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Independent - B216027 (A) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc FireLine 12.5mm to one side of Gypframe 48 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 2700mm.
GypLyner Independent - B216025 (A) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc FireLine 12.5mm to one side of Gypframe 48 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 2400mm.
GypLyner Independent - GIWL 60 I 50 PIR (C) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine PIR 63mm to one side of Gypframe 60 I 50 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 2400mm.
GypLyner Single - TL-Universal (C) (EN)
Verified 7 months ago
British Gypsum
Solid masonry background with Gypframe GL1 Lining Channel framework fixed to one side with a cavity between 25mm to 125mm clad with one layer of Gyproc ThermaLine PIR 63mm
DriLyner Dab - RF-PIR (C) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine PIR 63mm on Gyproc Sealant (3mm nominal cavity) on existing plastered walls, level brick, block or fair faced concrete.
GypLyner Single - TL-Universal (D) (EN)
Verified 7 months ago
British Gypsum
Solid masonry background with Gypframe GL1 Lining Channel framework fixed to one side with a cavity between 25mm to 125mm clad with one layer of Gyproc ThermaLine PIR 78mm
DriLyner Dab - TL-PLUS (C) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine Plus 40mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Independent - B216004 (B) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3300mm.
GypLyner Independent - B216004 (A) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 48 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 2800mm.
GypLyner Independent - B216028 (C) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc FireLine 15mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3900mm.
GypLyner Independent - B216028 (D) (EN)
Verified 7 months ago
British Gypsum
Two layers of Gyproc FireLine 15mm to one side of Gypframe 70 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Dab - RF-PIR (A) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine PIR 38mm on Gyproc Sealant (3mm nominal cavity) on existing plastered walls, level brick, block or fair faced concrete.
DriLyner Dab - TL-PIR (A) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine PIR 38mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Independent - GIWL 60 I 50 PIR (B) (EN)
Verified 7 months ago
British Gypsum
One layer of Gyproc ThermaLine PIR 53mm to one side of Gypframe 60 I 50 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 2400mm.
Showing 73-108 of 153
