Verified by manufacturer 5 days ago
SR 100 kVA: Po 252 W, Pk 1800 W, Io 1%

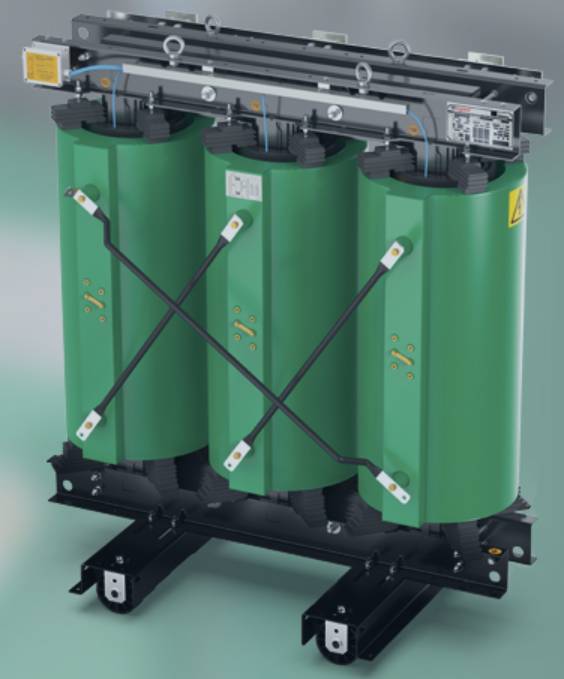

High efficiency transformers.
Suitable for high-voltage dry-type transformer applications.
A range of high efficiency transformers.
The Legrand Green T.HE transformers fully comply with the new eco-compatible design rules and guarantee a significant reduction in energy consumption, thus promoting significant economic savings and the reduction of CO2 emissions into the atmosphere.
Partial discharges are microscopic phenomena occurring inside insulating resin cavities and are a factor in the speeding up of the ageing process of a transformer. Therefore, it is important that the values of such currents are limited. According to the product standard regarding the design of resin transformers (IEC 60076-11), all windings with a voltage of ≥ 3.6 kV are subject to the measure of partial discharges and the value measured should not exceed 10 pC (picocoulomb). When the Green T.HE transformers were subjected to the measurement of partial discharges, the values detected were always below 5 pC, significantly better than required by the standard.
A low value of partial discharges represents the index of some positive factors, such as:
It is clearly evident that a lower level of partial discharge leads to a higher resistance to work stresses and consequently to a higher life expectancy of the transformer under examination.
Features and benefits:
Color | Green |
Material | Epoxy resin |
Shape | Circle |
Length | 1150 mm 1200 mm 1300 mm 1350 mm 1450 mm |
Width | 750 mm 780 mm 850 mm 1000 mm 1500 mm |
Height | 1290 mm 1310 mm 1370 mm 1430 mm 1490 mm |
Warranty description | Two year |
Uniclass |
SKU Code | z |
Classification data | |
Standard | To BS EN 50708-2-1, IEC 60076-11. |
Rated apparent power | 100 kVA. |
Core material | Vacuum-cast resin. |
Cooling medium | Air (A). |
Temperature class | High-voltage (HV) and low-voltage (LV) windings, to Class F. |
Climatic class | Class C2. |
Environmental classification | Class E3. Guidance for specification option: E4 is available on request, consult the manufacturer for details. |
Fire behaviour class | To BS EN IEC 60076-11, Class F1. |
Highest voltage for equipment windings (Um) | 24 kV. |
Rated frequency | 50 Hz. |
Number of phases | Three. |
Rated primary voltage (Uprim) | 11000 V. |
Rated secondary voltage (Usec) | 417 V at no-load. Guidance for specification option: Also available in 400, 415, 420 and 433 V, consult manufacturer for details. |
Vector group | To BS EN 60076-1, Dyn11. |
Sound pressure level (maximum) | 51 dB (A). |
Indicators and alarms | |
Thermal protection | Low-voltage (LV) winding temperature sensors (one per each winding). |
Enclosure | |
Ingress protection (minimum) | IP23. IP31. Manufacturer guidanceAchieved with the use of an appropriate enclosure (specified separately). |
Colour | Green. |
High-voltage connection arrangement | Top cable entry. |
Low-voltage connection arrangement | Top cable entry. Guidance for specification option: The LV connection terminals are made of aluminium. Appropriate CUPAL bimetal plates are also available for copper connections, consult manufacturer for details. |
Accessories | Cupal plates. Guidance for specification option: Cupal is a bimetal sheet made up of one copper sheet and one aluminium sheet welded together through a special mechanical procedure Cat. Nos. refer to a single CUPAL sheet Example : for a transformer with a power of 1250 kVA, the correct CUPAL plate is Cat. No. 030012 1 CUPAL has 2 plates (1 aluminimium and 1 copper) therefore for quantity calculation - 2 plates x 4 LV terminals = 8 CUPAL plates. Enclosure. Guidance for specification option:
Rubber supports (anti-vibration). Guidance for specification option: Four anti-vibration pads for mounting under transformer casters. Surge arrester kit Guidance for specification option: Supplied mounted on the transformer. Temperature control device. Guidance for specification option: Control units are supplied unassembled. Temperature measurement sensor. Guidance for specification option: Temperature measurement sensors are supplied mounted on to the transformer and wired to aluminium IP 65 junction box. Ventilation fan. Guidance for specification option: According to IEC 60076-1, a transformer is called AN even if it is equipped with discontinuous ventilation If a transformer with AF continuous duty power is required, please consult the manufacturer. Ventilation fans allow a temporary increase of the rated power (under normal service conditions). Manufacturer guidanceAn extensive range of accessories are available, consult technical literature for details and insert requirements. |
Series | Ao--10%Ak. |
Material | Epoxy resin |
