Zeta Lock Block Paving
Verified by manufacturer 4 months ago
80 mm closure pack
80 mm closure pack
EPD
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Brett Zeta Lock is a 16-sided block paver, providing the greatest interlock between blocks to give the maximum pavement integrity. Typical applications are heavily trafficked and loaded areas.
Application
For use in the most heavily trafficked and loaded areas such as ports, container yards and airports.
Description
Zeta Lock Block Paving has been designed with 16-side interlock to provide maximum pavement rigidity making it ideal for use in the most heavily trafficked areas such as ports, container yards and airports. In these environments its 80 mm thickness and capacity to be machine laid makes Zeta Lock the ideal block pavior for meeting the installation demands of larger commercial sites.
The design of Zeta Lock paving blocks includes a number of complimentary products including half blocks and closure blocks for quick, accurate edge detailing.
Standards:
Brett Landscaping operate a number of independently audited management systems:
- BS EN ISO 9001: 2008 Quality Management System.
- BS EN ISO 14001: 2004 Environmental Management System.
- OHSAS 18001: 2007 Health and Safety Management System.
- BES 6001 Responsible Sourcing of Construction Products.
General information
Color | Grey |
Finish | Smooth |
Material | Concrete Guidance for specification option: Precast (semi-dry-pressed and vibrated). |
Length | 205 mm |
Width | 102.5 mm |
Height | 80 mm |
Uniclass | |
CAWS | Q24/10 Conventional concrete block paving Q24/110 Conventional concrete block paving Q24/112 Conventional concrete block paving with bound base Q24/113 Conventional concrete block paving overlay |
Specification data - Concrete paving blocks
Standard | To BS EN 1338: 2003. |
Physical properties | |
Colour | Natural.Charcoal. |
Finish | Smooth. |
Profile | |
Paver type | Special shapes. |
Arrises | Chamfered. |
Interlocking features | Nibs, 16-sided interlock. |
Dimensions and associated tolerances | |
Nominal sizes | 205 x 102.5 x 80 mm/ 102.5 x 102.5 x 80 mm.Guidance for specification option: Large (x76)/ small (x232) per pack. Manufacturer guidanceTolerances: Thickness: ±3 mm; Plan size: ±2 mm. |
Arrises | Chamfered. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3. |
Slip resistance | Unpolished Slip Resistance Value (USRV): ≥55; Potential for slip: Low. |
Type | Hand lay. Machine lay. |
TensileStrength | ≥3.6 MPa. Guidance for specification option: Failing load ≥ 250 N/mm. Manufacturer guidanceCharacteristic tensile splitting strength. |
Third-party certification | CE marked. |
Thermal Conductivity: | 1.2 W/m·K. |
Unit weight | 3.5 kg. |
Sustainability data
Third party certifications
Third party certifications
Literature
Specialist Kerbs & Permeable Paving

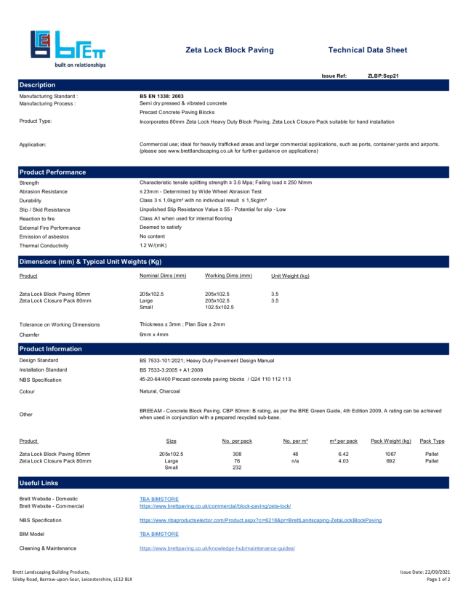

Zeta Lock CBP TDS Sept 21
Brett Landscaping Trade Guide 2024
Safe Handling Advice For kerbs And Flag Paving
Case studies

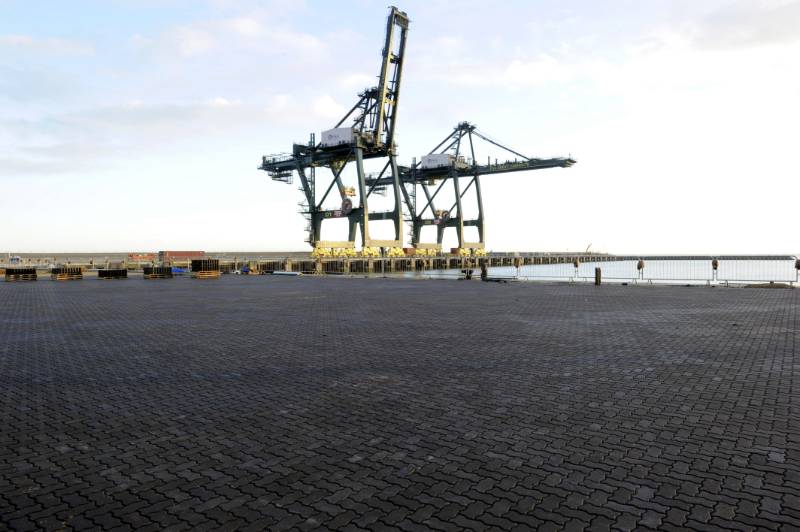

Heavy Duty Pavement Solution at Great Yarmouth Port

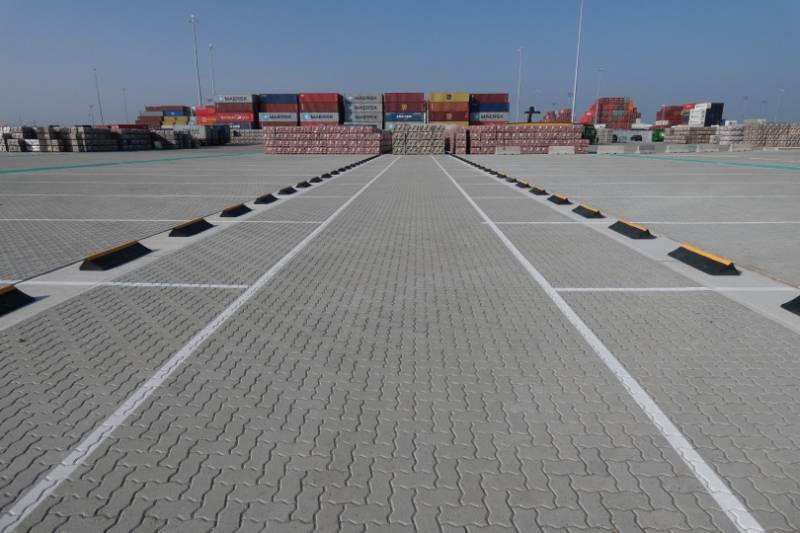

Zeta Lock Block Paving used in Heavy Duty Pavement at DP World's London Gateway
