Robust fence system.

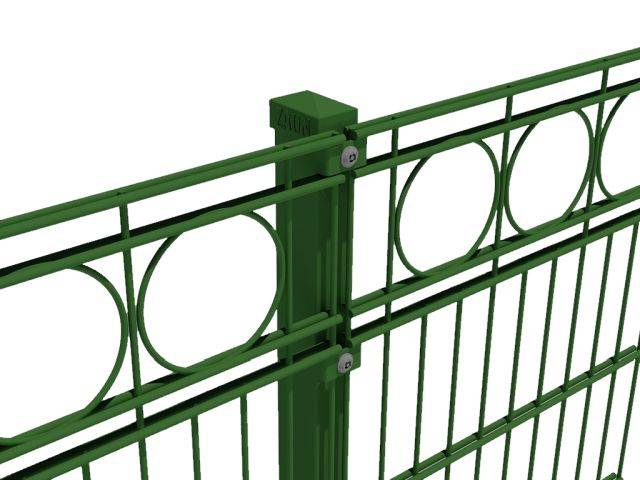

The Zariba 6 is designed using an ornate ring top design and optional finials. The system uses an attractive ring top and the mesh pattern has been specifically designed to generate a pleasing appearance. Twin horizontal 6 mm wires mean that the system is incredibly strong and can be used in areas where the system is likely to incur regular impact. The use of bright colours sets the fence off, making an attractive feature in any space.
It combines the robust Duo6 platform and a ring top design to provide an extremely durable segregation fence with a contemporary feel.
Each panel is fixed with either a full length clamp bar or bracket system.
Features and benefits:
Applications:
Finish | Galvanized and polyester powder coated |
Uniclass 2015 | |
CAWS | Q40/125 Open mesh steel panel general purpose fencing Q40/27 Open mesh steel panel fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Product Reference | Zariba 6 ClampZariba 6 Zaunfix |
Height | 0.6–2.4 m in 200 mm increments, insert requirements. |
Fixing | Bolt downIn groundWall |
Colour | Various available, consult manufacturer and insert requirements. |
Finials | Not requiredRequiredConsult manufacturer for options. |
Gates | - |
Pedestrian | Not requiredRequiredSingle leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. |
Vehicular | Not requiredRequiredDouble leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. |
Standard product features | Finish: Galvanized and polyester powder coated. Mesh: Duo6 mesh comprising 200 x 50 mm mesh with single 5 mm wires, vertical wires are at 50 mm centres, dual 6 mm horizontal wires at 200 mm centres. Posts: Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 2525 mm centres. Post to panel fixing: - Clamp: Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar. - Zaunfix: Panels fixed to posts with ZaunFix clip and bolt fixings at 400 mm centres. Gates: Framed in a 50 x 50 mm RHS with Zaun Duo8 mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts. |
