Zaffiro Rimless Wall Hung Pan
Verified by manufacturer 4 months ago
Rimless wall hung pan.
Application
Residential bathroom applications.
Description
Wall hung pan with rounded lines of Zaffiro incorporating a rimless design for ease of cleaning and good hygeine.
General information
Color | White Black |
Finish | Matt |
Material | Ceramic |
Shape | Other |
Length | 517 mm |
Width | 360 mm |
Height | 365 mm |
Uniclass | |
CAWS | N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Standard | To BS EN 997, Class 2. |
Form | Wall-mounted, washdown. |
Connecting dimensions | To BS EN 33. |
Pan height | 365 mm. |
Materials | |
Body | Ceramic. |
Finish and colour | Euro white.Matt black. |
Water supply, outlet and seat holes | |
Outlet | Horizontal back outlet. |
Seat holes | Standard pattern. |
Integral accessories | 2510 - Zaffiro Slow Close Seat. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

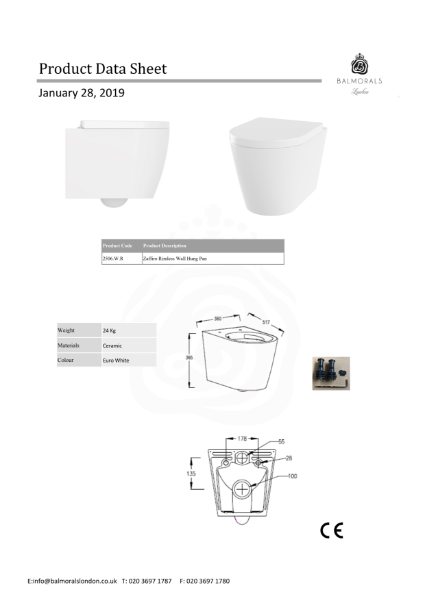

Zaffiro Rimless Wall Hung Pan
