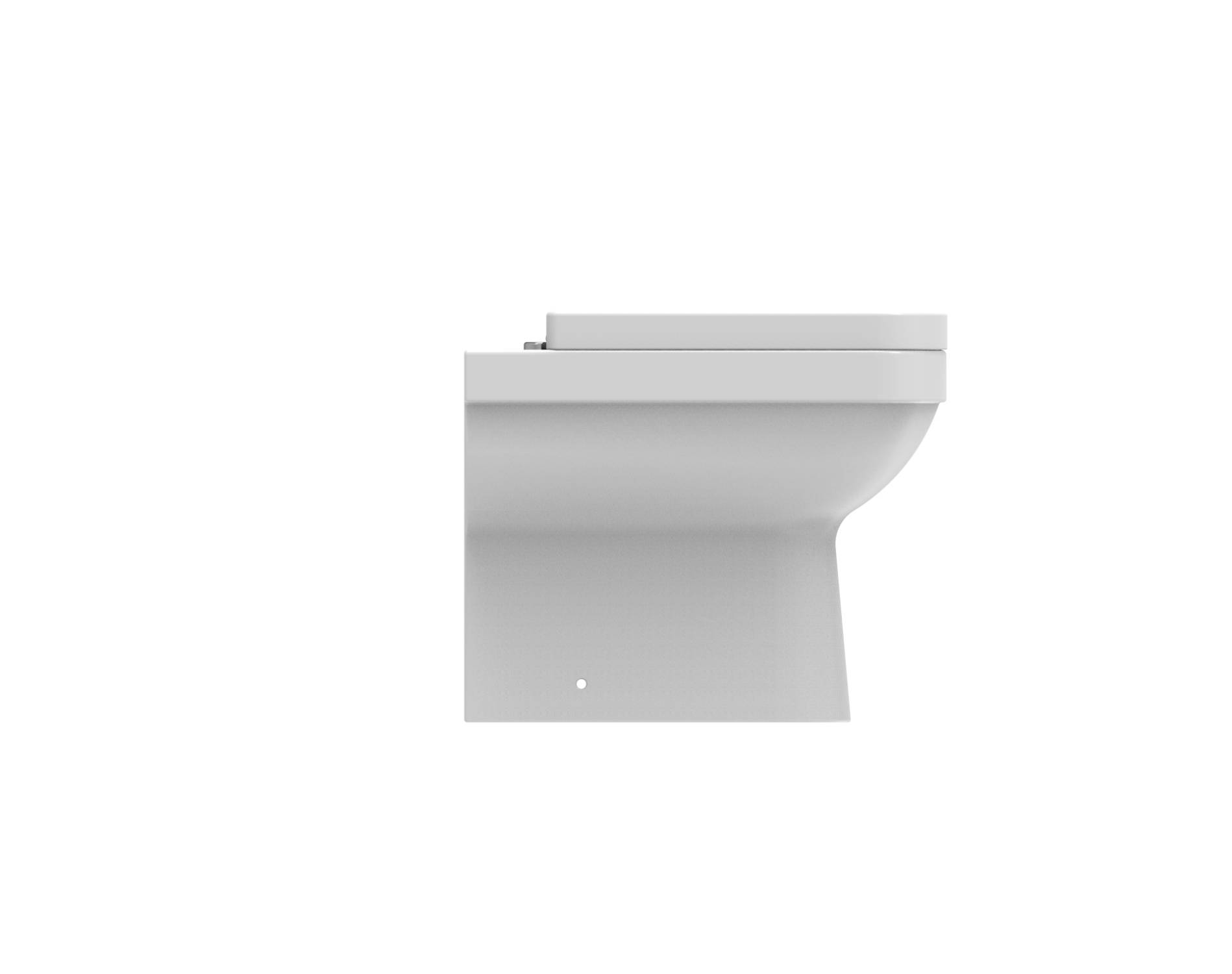

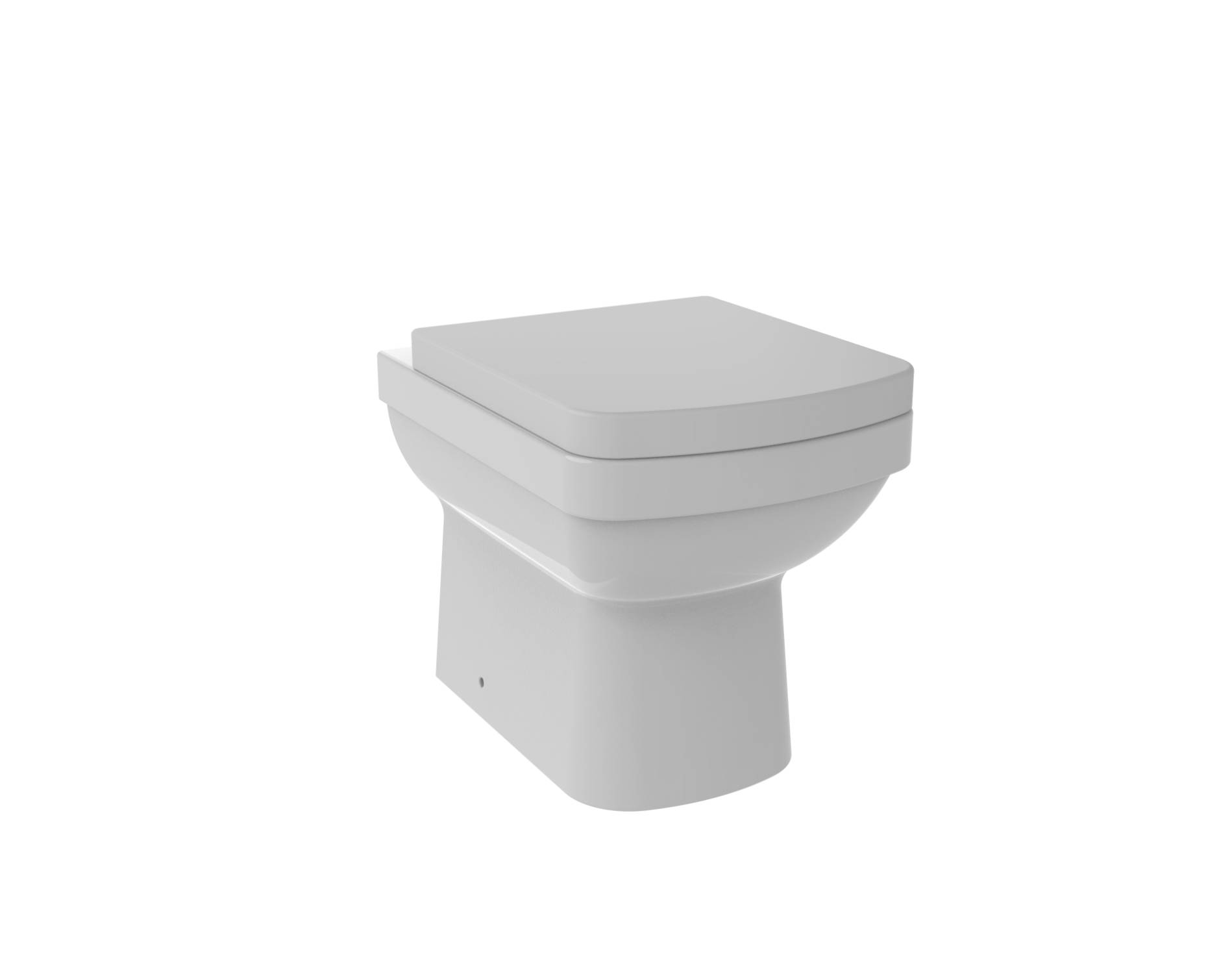

Minuto Back to Wall - WC Pan
Verified by manufacturer 4 months ago
Back to wall WC pan with soft close seat.
Application
Suitable for back to wall WC pan applications.
Description
A back to wall pan with short projection, featuring a soft close seat and high quality vitreous china.
Features and benefits:
- Minuto back to wall pan.
- Minuto slow close seat with one push button.
General information
Color | White |
Finish | Bright |
Material | Vitreous china |
Shape | Other |
Length | 505 mm |
Width | 360 mm |
Height | 420 mm |
Uniclass | |
CAWS | N13/302 WCs and flushing valves N13/10 WC pans and flushing arrangements |
Specification data - WC pans
Standard | To BS EN 997, Class 2. |
Form | Back-to-wall. |
Connecting dimensions | To BS EN 33. |
Pan height | 420 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Seat holes | Standard pattern. |
Integral accessories | Minuto slow close seat with one push button.Guidance for specification option: 1510.1.PB.BW. |
Projection | 505 mm. |
Width | 360 mm. |
Sustainability data
Country of material origin | China |
Country of product manufacture | China |
Material | Vitreous china |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

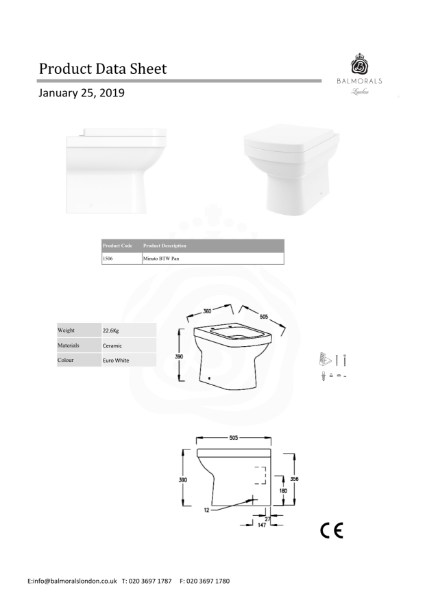

Minuto Back to Wall - Product Datasheet

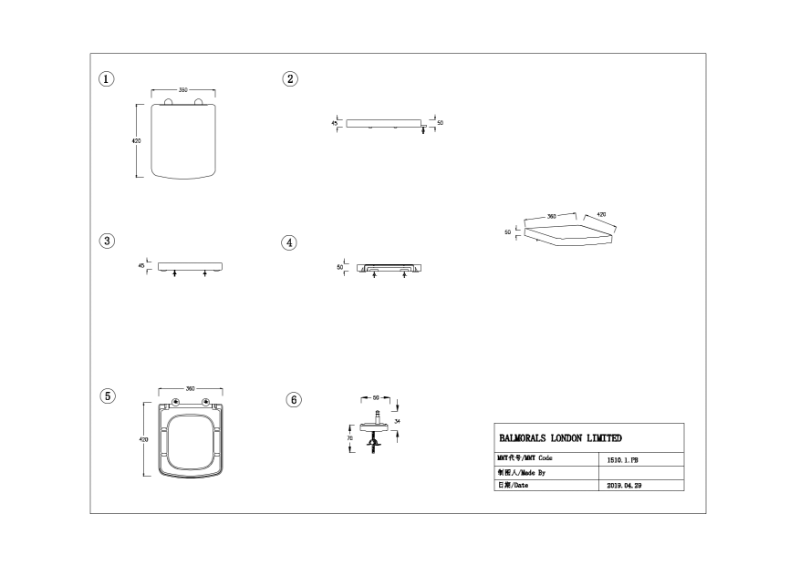

Minuto Slow Close Seat with One Push Button - Technical Drawing
