PVCu protection panels preventing damage to walls

Jump to:
BOS
+44 (0)113 279 5854 Website

Application

Schools, Hospitals, Leisure venues, Public buildings, Care Homes, Stadiums, Arenas, Student Accommodation.

Description

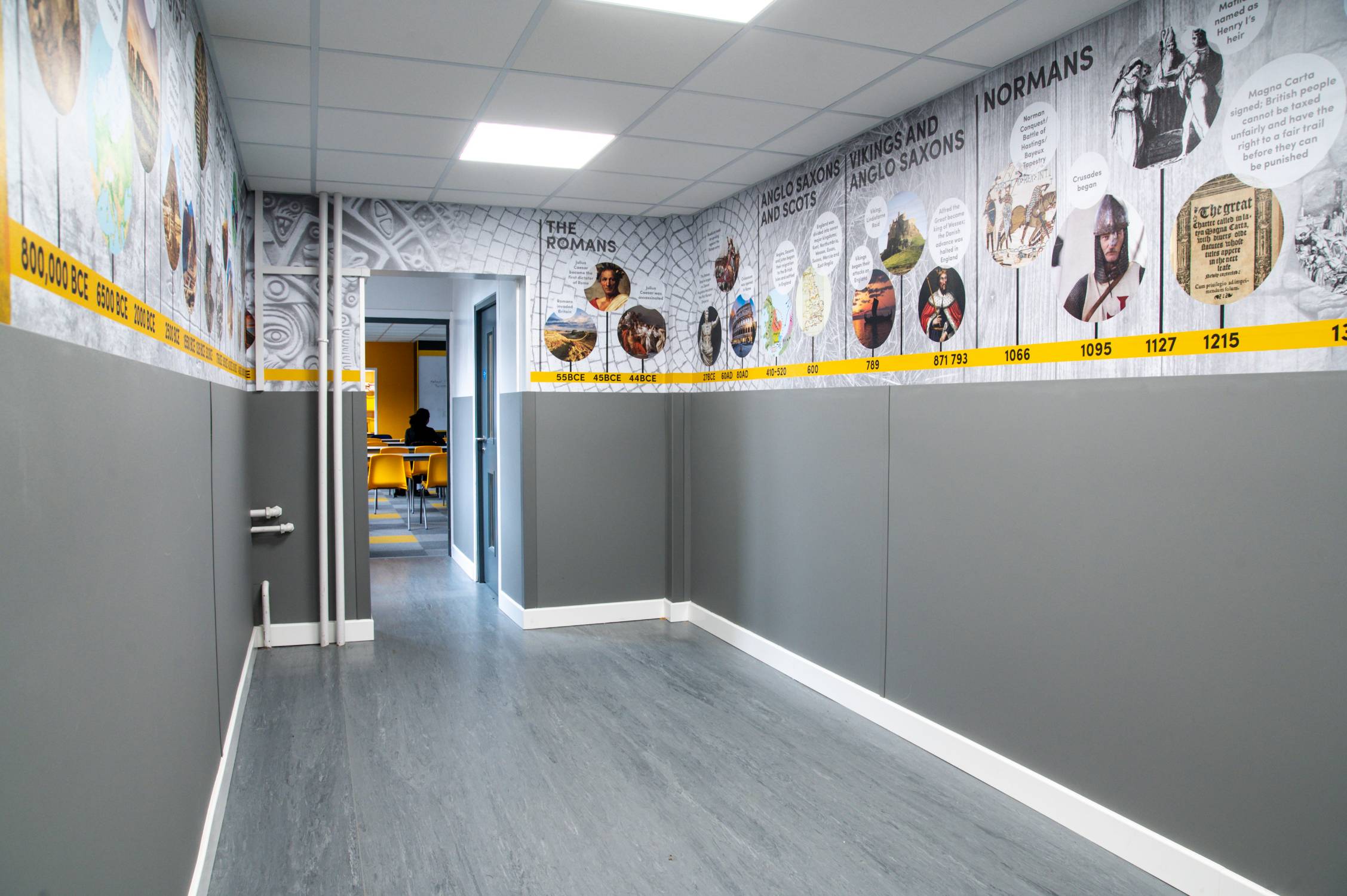

Yeoman Shield Falmouth Wall Protection Panels offer the complete solution to damage that occurs at varying heights. Panels can be specially formed to fit circular columns or installed floor to ceiling, if necessary. More commonly, panels are fitted above skirting to mid height, where there is the added opportunity to create design features.


Standard panels sizes 1250 x 2500 mm but can be cut to size before supply.


Circular column protectors can be formed to suit columns of various diameters and height, in one piece or two pieces, complete with joint cover strip/ strips.


Approvals:

Textured Extruded Sheet:

  • – B, s3, d0.
  • BS EN 13823: 2010 + A1: 2014.
  • BS EN ISO 11925 - 2: 2010.
  • BS EN 13501 - 1: 2007 + A1: 2009.
  • BS 476: Part 7: 1997 - The Surface Spread of Flame of Products - Class 1Y (Class 1 is the best classification in this test).
  • BS 476: Part 6: 1989 + A1: 2009 - Fire Propagation for Products - Class O - As defined in the latest Building Regulations, Approved Document B (Fire Safety).


VOC Emissions

Yeoman Shield PVCu Falmouth Wall & Door Protection panels have been tested for VOC to ISO 16000-10:2006 Indoor air - Part 10.



The test showed the following results:



<10 µg m‑2 h‑1 for TVOC

<5 µg m‑2 h‑1 for Formaldehyde



The interpretation of these results by BRE are if all the walls (less door and window) of the 30 m3 reference room described in BS EN 16515‑2017

(with a ventilation rate of 0.5 air changes per hour) were clad with our Yeoman Shield PVCu Falmouth Wall & Door Protection Panels, the increase in TVOC in the room would

be <20 µg m‑3 for TVOC and <10 µg m‑3 for Formaldehyde and these are deemed to be low.



BREEAM Hea02 has limits of 300 µg m‑3 for TVOC and 100 µg m‑3 for Formaldehyde, so the theoretical increases in TVOC and Formaldehyde from

using our PVCu sheet are deemed as low.

General information

Color

Black

Guidance for specification option:

BS 00 E 53 -stock colour

Blue

Guidance for specification option:

  • Powder Blue BS 20 C 33 - stock colour
  • Pastel Blue RAL 5024 - stock colour
  • Regatta BS 18 E 53 - stock colour
  • Cornflower Blue RAL 5012 - stock colour
  • Royal Blue RAL 5017 (nearest) - stock colour
  • Dark Blue RAL 5002 - stock colour
  • Trafalgar Blue RAL 5000 - stock colour
  • Steel Blue RAL 5011- stock colour
  • Sky Blue - stock
  • Pigeon Blue BS 18 C 35 - stock colour


Brown

Guidance for specification option:

BS 08 B 29 - Stock colour

Cream

Guidance for specification option:

BS 10 B 15 - Stock colour

Green

Guidance for specification option:

  • Pale green BS 14 C 31 - to order
  • Sage green BS 14 C 35 (nearest) - stock colour
  • Pastel Green RAL 6019 - stock colour
  • Green BS14 E 53 - stock colour
  • Opal Green RAL 6004 - stock colour
  • Slate Green - to order
  • Light Green RAL 6027  - stock colour
  • Aqua Blue RAL 5018 - stock colour


Show more

Manufacturer guidance

Consult Manufacturers Colour card

Finish

Textured

Material

PVC-U

Guidance for specification option:

Extruded PVC-U.

Abrasion BS 2782: Part 3: 1990

Scratch ASTM D3363 - 74

Shape

Rectangle

Length

2500 mm

Width

1250 mm

Height

2 mm

Guidance for specification option:

Panel Thickness

Manufacturer guidance

Panel Thickness

Uniclass

Pr_35_90_43_86 Wall protection panelsPrimary

CAWS

P20/170 Proprietary

P20/20 Hardwood

P20/30 Proprietary

Specification data - Wall protection panels

Material

Yeoman Shield extruded PVC-u.

Fire rating

To BS EN 13501-1, class A1; BS 476: Part 7 - Class 1Y and BS 476: Part 6 - Class O.

Finish

Falmouth.

Guidance for specification option:

Standard - a light relief pattern, usually supplied 2 mm thick.

Manufacturer guidance

All panels and cover strips are supplied with chamfered edges to ensure a smooth, safe edge is attained once fitted and to avoid any ledges.

Colour or pattern

Cornflower Blue.

Avocado.

Trafalgar Blue.

Amethyst.

Aubergine.

Heather.

Lavender.

Graphite.

Mocha.

Sage Green.

Pale Green.

Terracotta.

Pastel Green.

Aqua Blue.

Bordeaux.

Lilac.

Burgundy.

Blush.

Pink Rose.

Grapefruit.

Red.

Sky Blue.

Orange.

Yellow.

Green.

Slate Green.

Dark Blue.

Regatta Blue.

Powder Blue.

Pigeon Blue.

Brown.

Mushroom.

Dark Grey.

Light Grey.

Primrose.

Tangerine.

Raspberry Red.

Size

2500 x 1250 x 2 mm.

Guidance for specification option:

Length x width x thickness.

Fixing

Yeoman Shield mastic adhesive applied in 6 mm horizontal beads, at 150 mm centres.

Joints

Joint cover strips are 30 mm wide, c/w double-sided adhesive tape.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
