XtroLiner XO/STP Soffit Plus Insulation - Insulation

Verified by manufacturer 2 months ago

Unilin Insulation UK Limited Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

High performance polyisocyanurate (PIR) insulation for soffit application.

Jump to:
+44 (0)371 2221033 Website

Application

Structural ceiling applications in commercial and residential buildings.

Description

High performance polyisocyanurate (PIR) insulation for soffit application.


Unilin Insulation XtroLiner Soffit XO/STP provides effective thermal and fire performance solutions in structural ceiling applications in commercial and residential buildings.


The high performance modified PIR insulation board, with low emissivity textured aluminium foil facings, is bonded to impact resistant 6 mm magnesium oxide board which offers a secure finish for ease of maintenance to which a decorative finish may be applied.

General information

Color

Yellow

Finish

Foil

Material

Polyisocyanurate (PIR)

Shape

Rectangle

Length

2400 mm

Width

1200 mm

Height

Uniclass

Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary

CAWS

P10/185 Soffit insulation

P10/217 Insulation slabs fixed to backing wall

Specification data - Polyisocyanurate (PIR) foam boards

Standard

To BS EN 13165.

Third-party certification

BBA Certificate No. 23/6874.

Fire performance

Euroclass B-s1, d0.

Thermal conductivity (maximum)

0.021 W/mK.

Compressive strength at 10% deformation

>120 kPa.

Cross section

Rectangular.

Thickness (nominal)

56 mm.

66 mm.

81 mm.

106 mm.

126 mm.

Manufacturer guidance

Includes 6 mm magnesium oxide board.

Face size (length x width)

2400 x 1200 mm.

Density

32 kg/m³.

Recycled content

0%.

Facing

6 mm magnesium oxide board and textured foil facing.

Edges

Square.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Guidance for specification option:

UK and Ireland.

Country of product manufacture

United Kingdom

Guidance for specification option:

UK and Ireland.

Material

Polyisocyanurate (PIR)

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

11.2 kg CO₂ eq/m²

Recyclability

0

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

12/4956

EPD

EPD

Unilin Insulation UK Ltd Xtroliner PIR insulation products EPDIE-21-27

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate

Literature

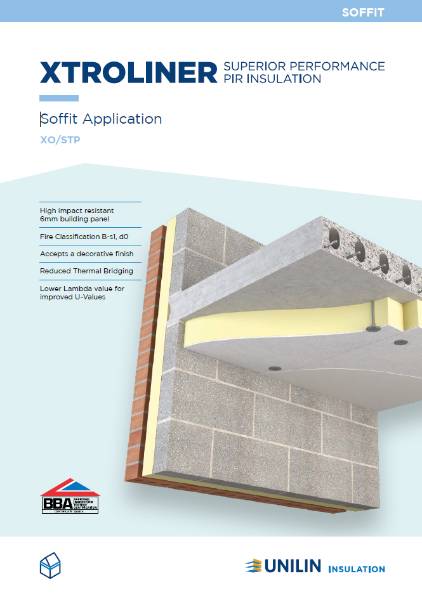

Unilin Insulation XOSTP UK V1

Unilin Insulation XOSTP UK V1
