XtroLiner XO/SK (T&G) Warm Pitched Roof Insulation - Insulation
Verified by manufacturer 3 months ago
EPD
Certificate type
Tongue and groove, foil-faced polyisocyanurate (PIR) insulation boards for warm pitched roofs.
Application
Suitable for warm sloped roofs.
Description
An engineered tongue and grooved external roof insulation system with robust facings, reducing the normal amount of junctions prone to thermal bridging to improve the thermal performance of the roof.
Features and benefits:
- Improves detailing.
- Speeds up the installation process.
- Provides a uniform plane to detail more effectively.
- Robust tongue and groove jointing.
- Reduced thermal bridging.
- Euroclass C Fire Classification.
General information
Color | Yellow |
Finish | Foil Guidance for specification option: Textured foil facing on both sides. |
Material | Polyisocyanurate (PIR) |
Shape | Rectangle |
Length | 1200 mm |
Width | 2400 mm |
Height | 50 mm 75 mm 100 mm 125 mm |
Uniclass | |
CAWS | P10/15 Insulation fitted between rafters P10/140 Insulation fitted between rafters K11/695 Rigid board insulation fixed as roof sarking K11/55 Rigid board insulation fixed as roof sarking |
Specification data - Polyisocyanurate (PIR) foam boards
Standard | To BS EN 13165. |
Third party product certification | British Board of Agrément (BBA) Certification.Guidance for specification option: BBA Certificate No 12/4956. |
Fire performance | To BS EN 13501-1, class C-s2, d0.Guidance for specification option: Euroclass. |
Thermal conductivity (maximum) | 0.021 W/m·K. |
Cross section | Uniform thickness. |
Thickness (nominal) | 50 mm.75 mm.100 mm.125 mm. |
Face size (length x width) | 2400 x 1200 mm. |
Density | 32 kg/m³. |
Compressive strength at 10% deformation | >150 kPa. |
Recycled content | 0%. |
Facing | Foil.Guidance for specification option: Textured. |
Edges | Tongue and groove. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom Guidance for specification option: UK and Ireland. |
Country of product manufacture | United Kingdom Guidance for specification option: UK and Ireland. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 11.2 kg CO₂ eq/m² |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Third party certifications
Literature

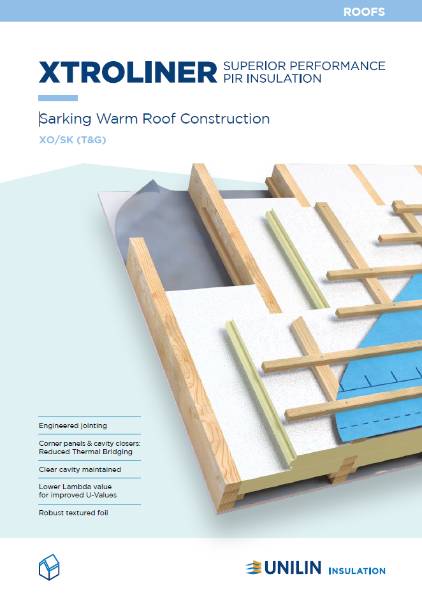

Unilin Insulation XOSK UK V1
