Woody, Woody Solar, Woody Scorpio Bench - Outdoor Benches/ Seating
Verified by manufacturer 2 days ago
WDS180 - solar bench "Woody Solar"
WDS180 - solar bench "Woody Solar"
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

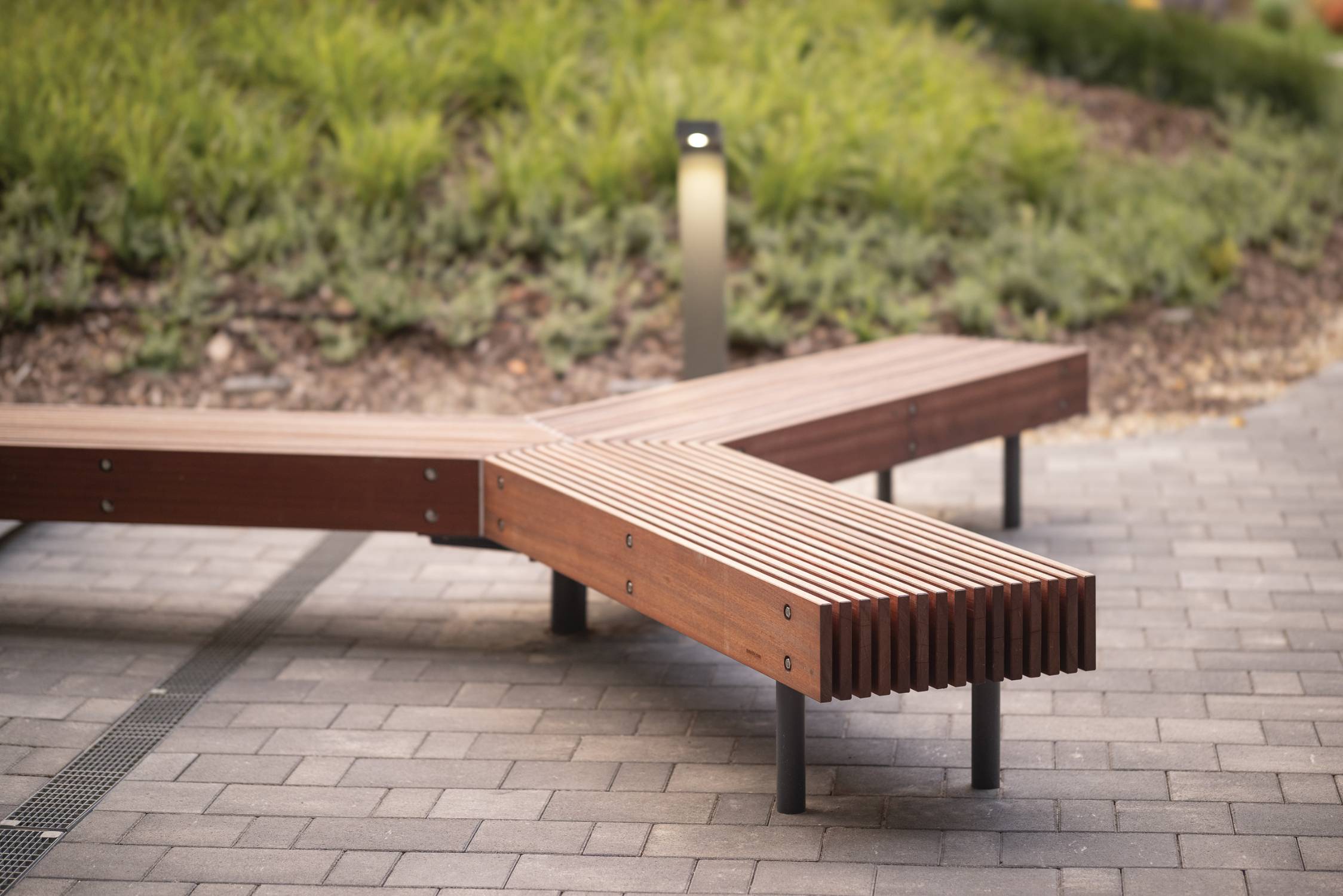

Range of outdoor benches for public spaces consisting of a massive sandwich of wooden boards firmly tightened with six stainless steel rods.
Application
Outdoor loungers (seating) for use in public spaces including parks.
Includes children's seating, integrated bicycle stands and seating to surround tress.
Description
Range of outdoor benches for public spaces.
Consists of a massive sandwich of wooden boards firmly tightened with stainless steel rods. The large block rests on optically subtle steel legs as if it was floating above the paving in all its cumbersomeness.
Features and benefits:
- Galvanized steel legs treated with powder coating.
- Seat and backrest made of wooden boards.
- Wooden boards are connected with stainless steel rods.
- Available with armrests.
- Free standing, surface mounted or anchored under the ground.
- Very low maintenance; the hardwood is left without any surface treatment and ages naturally and beautifully.
- Supplied in modules that can be arranged in a variety of linear or closed sets.
- Some variants add other functions such as bicycle racks or tree protection.
- Many models include LED lighting option (excludes children's seating and lounger).
- USB charging option on most models.
- Selected models are also available with a Stolki table attached (specified separately).
General information
Color | Silver Brown Other Beige Black |
Finish | Powder-coated Oil rubbed Natural |
Material | Wood Steel Stainless steel |
Shape | Other Rectangle Square Triangle |
Length | 700 mm 1000 mm 1400 mm 2000 mm 2075 mm Manufacturer guidanceMaximum length per model. |
Width | 385 mm 420 mm 530 mm 590 mm 820 mm Manufacturer guidanceSeating area width or overall width (for models such as those that surround trees). |
Height | 300 mm 430 mm 530 mm 540 mm 790 mm Manufacturer guidanceOverall height. |
Warranty description | Six year Ten year Two year |
Uniclass | |
CAWS | Q50/33 Benches Q50/220 Benches |
Specification data - Street and site benches
Length | 3160 mm. |
Base | Surface mounted.Guidance for specification option: Anchoring on the pavement into concrete foundation by threaded rods. |
Material | Jatoba seat; steel structure.Guidance for specification option: Tropical hardwood. |
Finish as delivered | Powder-coated steel; standard wood finish.Powder-coated steel; oiled wood finish. |
Colours | RAL 1000 green beige.RAL 1012 lemon yellow.RAL 1013 oyster white.RAL 1019 grey beige.RAL 1020 olive yellow.RAL 1021 colza yellow.RAL 2004 pure orange.RAL 2005 fluorescent orange.RAL 2008 bright red orange.RAL 3003 ruby red.RAL 3012 beige red.RAL 3015 light pink.RAL 3016 coral red.RAL 3020 traffic red.RAL 4010 telemagenta.RAL 5002 ultramarine blue.RAL 5011 steel blue.RAL 5015 sky blue.RAL 5019 capri blue.RAL 5024 pastel blue.RAL 6007 bottle green.RAL 6010 grass green.RAL 6018 yellow green.RAL 6019 pastel green.RAL 6027 light green.RAL 7002 olive grey.RAL 7006 beige grey.RAL 7016 anthracite grey.RAL 7021 black grey.RAL 7022 umbra grey.RAL 7024 graphite grey.RAL 7032 pebble grey.RAL 7035 light grey.RAL 7043 traffic grey B.RAL 8019 grey brown.RAL 8024 beige brown.RAL 9005 jet black.RAL 9006 white aluminium.RAL 9007 grey aluminium.RAL 9010 pure white.DB 703 deutsche bahn.AKZO NOBEL Interpon D1036 SW302G.AKZO NOBEL Interpon D1036 SW325i.Corten.Other.Guidance for specification option: Insert requirements (RAL). Manufacturer guidanceSteel structure only. |
Film thickness (minimum) | Manufacturer's standard. |
Accessories | None.Wi-Fi signal transmitter.Guidance for specification option: Range of 100 metres. Replaces USB sockets. |
Overall height | 2090 mm. |
Width | 820 mm. |
Integral accessories | Solar roof; LED lighting; two double USB sockets. Guidance for specification option: Solar roof: Photovoltaic panels with a total nominal power of 2 × 140 Wp are located above the seating area with a ceiling made of wooden slats. |
Snow load classification | Surface load = 1.5 kN/m² (150 kg/m²) according to ČSN EN 1991-1-3. |
Wind load classification | Guaranteed wind resistance up to speed of 25 m/s (90 km/h) according to ČSN EN 1991-1-4. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe Guidance for specification option: Note that jatoba tropical hardwood is sourced from Brazil. |
Country of product manufacture | Czechia |
Material | Wood Steel Stainless steel |
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001
ISO 9001 Quality Management
ISO 9001
