Port Seating - Outdoor Benches Chairs and Seats

Name: Port Seating - Outdoor Benches Chairs and Seats
Brand: MMCITE UK Ltd
SKU: 6WzomyS9UK9SCm3Jf4tDw9

Verified by manufacturer 6 days ago

PQX311 - 1.8 m long bench

MMCITE UK Ltd

Product certifications:

EPD
Certificate type

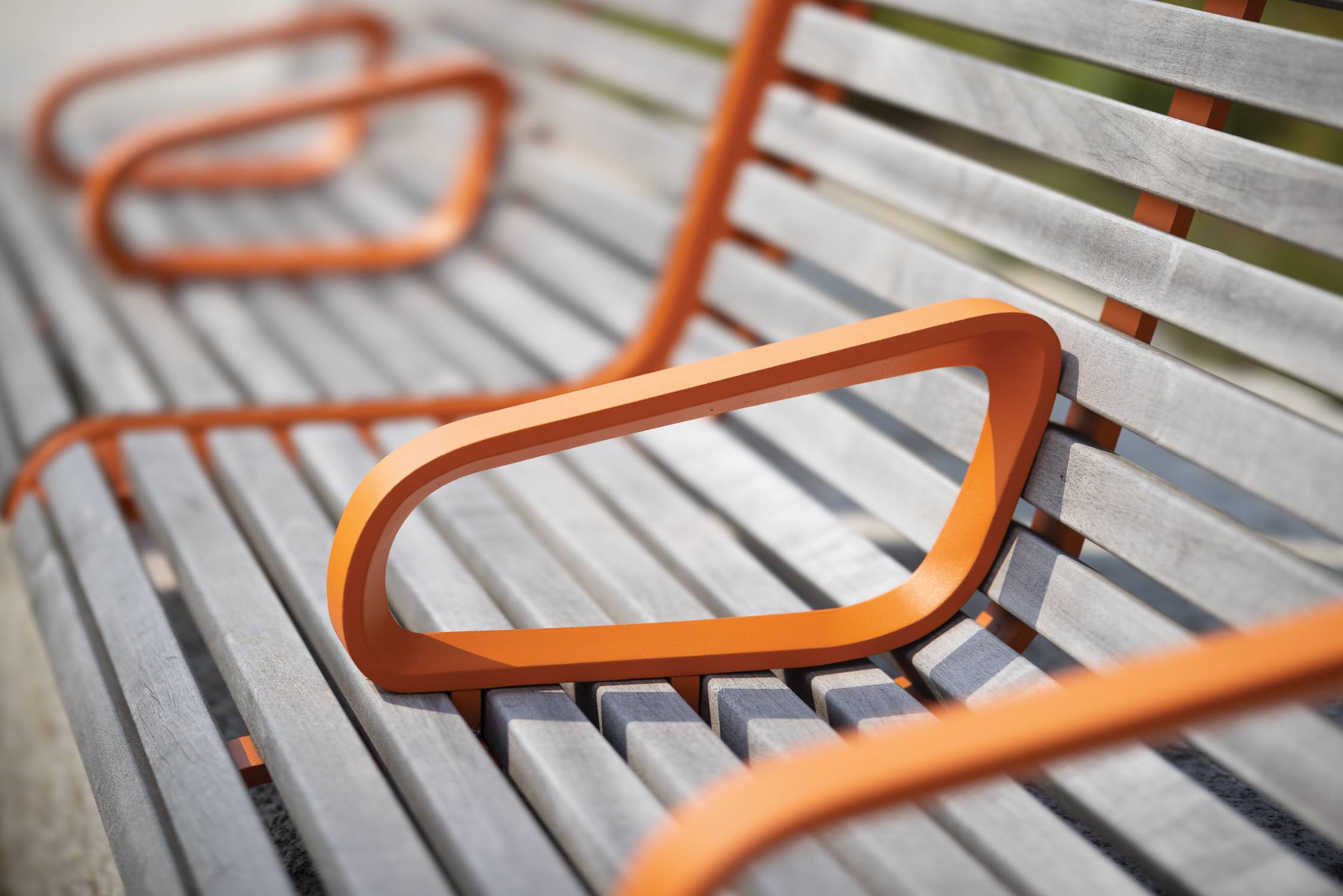

Designer range of wall-mounted or swivel outdoor seating based around cast aluminium frames and wooden slats.

Jump to:

+44 (0)7925133563 Website

Application

Outdoor seating range for wall mounting or root-fixed and with a swivel function.

Description

Designer range of wall-mounted or swivel outdoor seating based around cast aluminium frames and wooden slats.

Part of Port/ Portiqoa design set.

Features and benefits:

Sides made of recycled and fully recyclable cast aluminium.
Anchoring brackets are made of galvanized steel treated with powder coating.
Wall mounted models are designed for use with 370 mm-high walls.
Versions with backrest can be supplied with cast aluminium armrests.

General information

Color	Silver Brown Other Beige Black Blue Cream Green Grey Ivory Orange Pink Red Turquoise White Yellow Show more
Finish	Powder-coated Oil rubbed Natural
Material	Wood Steel Aluminium Guidance for specification option: Benches with lockable boxes only.
Shape	Rectangle
Length	580 mm 1220 mm 1820 mm 1800 mm Guidance for specification option: Modular components only. 1720 mm Guidance for specification option: Modular components only. Bespoke Show more Manufacturer guidance Some lengths may refer to modular components; overall length will vary.
Width	650 mm 580 mm 610 mm Manufacturer guidance Overall depth, including backrests where applicable.
Height	770 mm Guidance for specification option: Swivel units. 70 mm Guidance for specification option: Wall-mounted, no backrest (not including wall). 460 mm Guidance for specification option: Wall-mounted, with backrest (not including wall). 440 mm Guidance for specification option: Wall-mounted, without backrest (including recommended wall height of 370 mm). 830 mm Guidance for specification option: Wall-mounted, with backrest (including recommended wall height of 370 mm). Manufacturer guidance Overall height, including backrests where applicable.
Warranty description	Six year Ten year Two year

Uniclass	Pr_40_30_29_84 Street and site benchesPrimary
CAWS	Q50/33 Benches Q50/220 Benches

SKU Code	PQX311, PQX312, PQX313 / PQX314 / PQX313, PQX351, PQX352, PQX353 / PQX354 / PQX355, PQX356-02, PQX356-03, PQX357, PQX-R152, PQX-R153, PQX-R157, PQX-R158

Specification data - Street and site benches

Classification data
Length	1820 mm.
Base	Anchoring brackets.
Material	Aluminium structure; robinia seat (tropical hardwood). Aluminium structure; oiled robinia seat (tropical hardwood). Aluminium structure; jatoba seat (tropical hardwood). Aluminium structure; oiled jatoba seat (tropical hardwood). Aluminium structure; thermally-modified wood seat. Aluminium structure; oiled thermally-modified wood seat.
Finish as delivered	Manufacturer's standard. Powder-coated aluminium. Guidance for specification option: Aluminium finish will vary according to colour specified, see below. Manufacturer guidance See Material for seat finishes.
Colours	Not applicable. RAL 1000 green beige. RAL 1012 lemon yellow. RAL 1013 oyster white. RAL 1019 grey beige. RAL 1020 olive yellow. RAL 1021 colza yellow. RAL 2004 pure orange. RAL 2005 fluorescent orange. RAL 2008 bright red orange. RAL 3003 ruby red. RAL 3012 beige red. RAL 3015 light pink. RAL 3016 coral red. RAL 3020 traffic red. RAL 4010 telemagenta. RAL 5002 ultramarine blue. RAL 5011 steel blue. RAL 5015 sky blue. RAL 5019 capri blue. RAL 5024 pastel blue. RAL 6007 bottle green. RAL 6010 grass green. RAL 6018 yellow green. RAL 6019 pastel green. RAL 6027 light green. RAL 7002 olive grey. RAL 7006 beige grey. RAL 7016 anthracite grey. RAL 7021 black grey. RAL 7022 umbra grey. RAL 7024 graphite grey. RAL 7032 pebble grey. RAL 7035 light grey. RAL 7043 traffic grey B. RAL 8019 grey brown. RAL 8024 beige brown. RAL 9005 jet black. RAL 9006 white aluminium. RAL 9007 grey aluminium. RAL 9010 pure white. DB 703 deutsche bahn. AKZO NOBEL Interpon D1036 SW302G. AKZO NOBEL Interpon D1036 SW325i. Corten. Other. Guidance for specification option: Insert requirements (RAL).
Film thickness (minimum)	Manufacturer's standard where applicable. Guidance for specification option: Consult manufacturer for details if applicable.
Overall height	440 mm when installed on 370 mm wall.
Width	580 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe Guidance for specification option: Note that jatoba tropical hardwood is sourced from Brazil.
Country of product manufacture	Czechia
Material	Wood Steel Aluminium Guidance for specification option: Benches with lockable boxes only.
