Wickford - Clay Facing Brick
Verified by manufacturer 3 months ago
QA Certificate
Certificate type

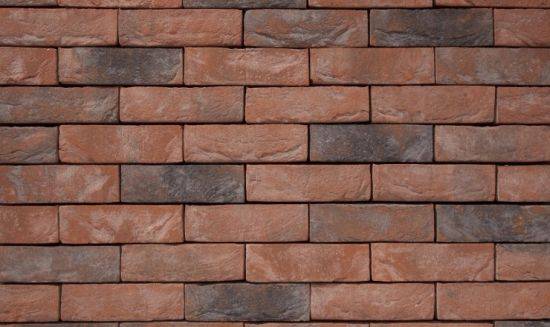

Red brown facing clay brick with dark shades with a sanded-coated and grained structure.
Application
Brickwork applications.
Description
The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This loss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
- Hand formed.
- Multi-shades.
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
General information
Color | Red Brown |
Finish | Sandfaced |
Material | Clay |
Shape | Rectangle |
Length | 214 mm |
Width | 101 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Product range |
Specification data - Clay bricks
Standard | To BS EN 771-1 |
Brick description | Facing brick. |
Appearance | Red brown with dark shades, with a sanded-coated and grained structure. |
Work size (length x width x height) | 214 x 101 x 65 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥20 N/mm².Guidance for specification option: Tested to the bed face. |
Category | Manufacturer guidanceManufacturer's standard. |
Durability designation | F2. |
Density | |
Gross dry | 1630 kg/m³. |
Net dry | 1740 kg/m³. |
Tolerance | D1. |
Water absorption | ≤14% m/md. |
Configuration | Frogged. |
Recycled content | Manufacturer guidanceManufacturer's standard. |
Thermal conductivity | ≤0.60 W/m·K.Guidance for specification option: Lambda 50/50. |
Thermal resistance | Manufacturer guidanceManufacturer's standard. |
Water vapour permeability | 5/10 µ. |
Bond strength | 0, 15 N/mm². |
Reaction to fire | Class A1. |
Active soluble salts | S2. |
Jointing | Beige. Grey. Joint free. Light grey. White. |
Sustainability data
Country of material origin | Manufacturer guidanceEurope. |
Country of product manufacture | Belgium |
Recyclability | Recyclable |
