Weyburn Stainless Steel Bench

Verified by manufacturer 2 months ago

Broxap Street Furniture

A stainless steel bench available in straight or curved versions.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for any external seating area.

Description

A robust, all welded bench in stainless steel 1.4301 (304) grade as standard.


Features and benefits:

  • Available in stainless steel 1.4401 (316) grade for locations close to the coast or a high content of saltwater erosion.
  • 240 Grit satin polish as standard.

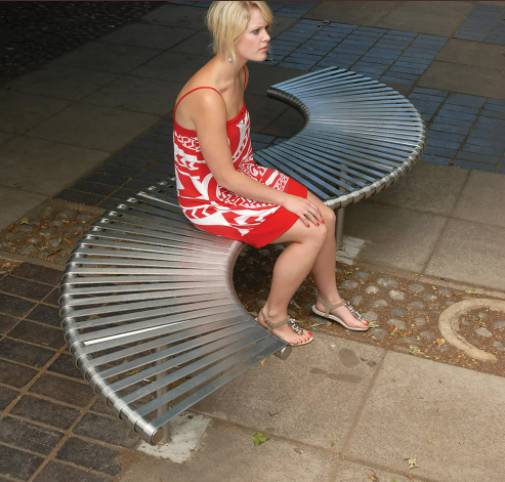

  • Available straight or curved.
  • Complements the Weyburn Seat.
  • Made to various lengths and special configurations

General information

Color

Silver

Finish

Matt

Satin

Material

Stainless steel

Shape

Rectangle

Other

Guidance for specification option:

Curved configuration.

Length

1800 mm

Width

570 mm

Height

470 mm

Warranty description

One year

Uniclass

Pr_40_30_29_85 Street and site seatsPrimary

CAWS

Q50/33 Benches

Q50/220 Benches

Specification data - Street and site seats

Length

1.8 m.

Bespoke.

Guidance for specification option:

Made to various lengths and special configurations. Insert requirements or refer to a drawing.

Base

Base plated.

Root fixed.

Material

Stainless steel 1.4301 (304) grade.

Guidance for specification option:

As standard.

Stainless steel 1.4401 (316) grade.

Guidance for specification option:

Available for locations close to the coast or a high content of saltwater erosion.

Finish as delivered

Matt satin.

Configuration

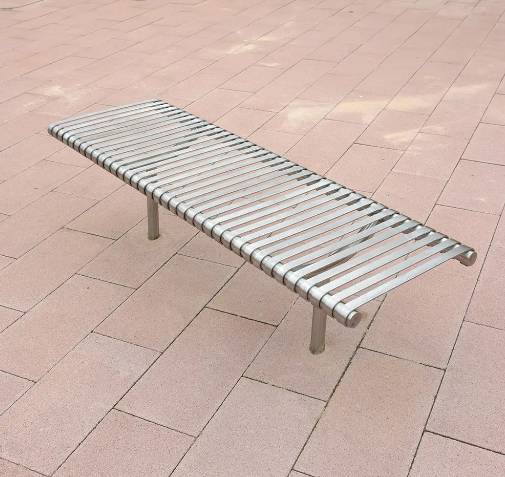

Straight.

Curved.

Sustainability data

Country of product manufacture

United Kingdom

Material

Stainless steel

Manufacturing plant location

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Weyburn Stainless Steel Bench Specification Sheet

Weyburn Stainless Steel Bench Specification Sheet

Case studies

Barry Island, Glamorgan

Barry Island, Glamorgan
