Ashbourne Seat

Verified by manufacturer 7 months ago

Broxap Street Furniture Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Rospa Safety Charity

    Rospa Safety Charity

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

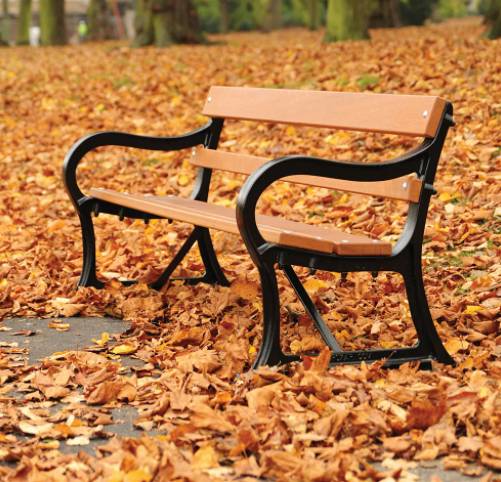

A cast iron seat with hardwood iroko slats as standard. Ideal for parks, public realm, community gardens and residential areas.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for any external seating area. The cast iron frame encompasses a simple curved armrest to make the Ashbourne Seat accessible and comfortable.

The frame can be customised to include an additional central armrest in a quality design which includes a hardwood iroko seat and backrest.


All Broxap’s cast iron benches and seats, bear the unique cast iron guarantee for a lifetime in excess of 100 years. These benches and seats are supplied free standing, secured to the ground using Leibig bolts or with extensions legs or submerged fixed, directly into concrete. Broxap’s range of heavy-duty cast iron benches and seats are combined with timber slats as standard and steel slats or robust all-steel slats, for additional options. These are used to provide a stronger vandal-resistant alternative.

The cast iron benches and seats are supplied in grade 250 cast iron as standard with additional options to be cast in ductile iron, grades 450-10. The composition of ductile iron makes the benches and seats inherently stronger, therefore Broxap advise these where the seat may be exposed to vandalism or possible vehicular impact.

All cast iron components are finished with a primer undercoat and a 2-pack acrylic topcoat in a range of

BS and RAL colours. One or more colours can be used to highlight design detail, match existing colour schemes or to include corporate colours.

At Broxap, Ardenbrites Light Gold No. 1 is used, which is bright, durable and has excellent colour retention. All of Broxap’s highlighting is hand painted onto the product. Cast iron bench and seat ends may also be customised to include logos, crests or coat of arms to create a special corporate or public identity. Brass plaques may be supplied with an inscription which is engraved and infilled. Plaques measure 40mm x 200mm and are rebated into the back slat of the seat to make a

memorial bench


Description

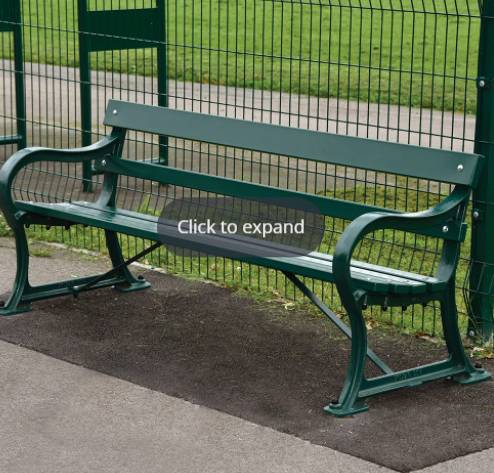

A cast iron seat with four hardwood Iroko slats as standard. Recycled plastic slats and steel slats are also available.


Features and benefits:

  • The cast iron frame is available in a range of colours.
  • Memorial plaques are available.

General information

Color

Manufacturer guidance

Coating to a non standard BS/RAL colour is also available.

Finish

Coated

Shape

Rectangle

Length

1800 mm

Width

550 mm

Height

750 mm

Warranty description

One year

Guidance for specification option:

100 year cast iron guarantee.

Uniclass

Pr_40_30_29_85 Street and site seatsPrimary

CAWS

Q50/34 Seats

Q50/225 Seats

Specification data - Street and site seats

Length

1.8 m.

Base

Base plated.

Material

Cast iron and iroko hardwood.

Cast iron and recycled plastic.

Cast iron and steel.

Finish as delivered

Standard paint specification.

High build paint specification.

Colours

Anthracite Grey RAL 7016.

Black RAL 9005.

Dark Blue RAL 5013.

Dark Grey BS 4800 18 B 25.

Duchess Blue BS 4800 20 C 40.

Goose Grey BS 4800 00 A 05.

Holly Green BS 4800 14 C 39.

Mid Blue RAL 5015.

Moss Green RAL 6005.

Traffic Red RAL 3020.

Traffic Yellow RAL 1023.

White Aluminium RAL 9006.

White RAL 9016.

Non standard BS/RAL colour.

Guidance for specification option:

Insert requirements.

Accessories

None.

Memorial plaque.

Two memorial plaques.

Three memorial plaques.
