Weyburn Seat

Verified by manufacturer 2 months ago

Broxap Street Furniture

A steel seat available in a variety of colours.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for any external seating area.

Description

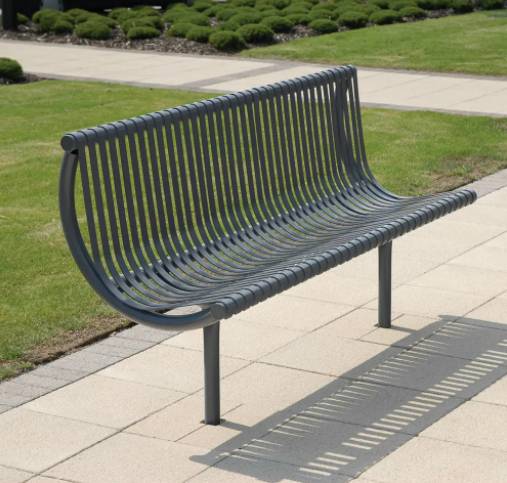

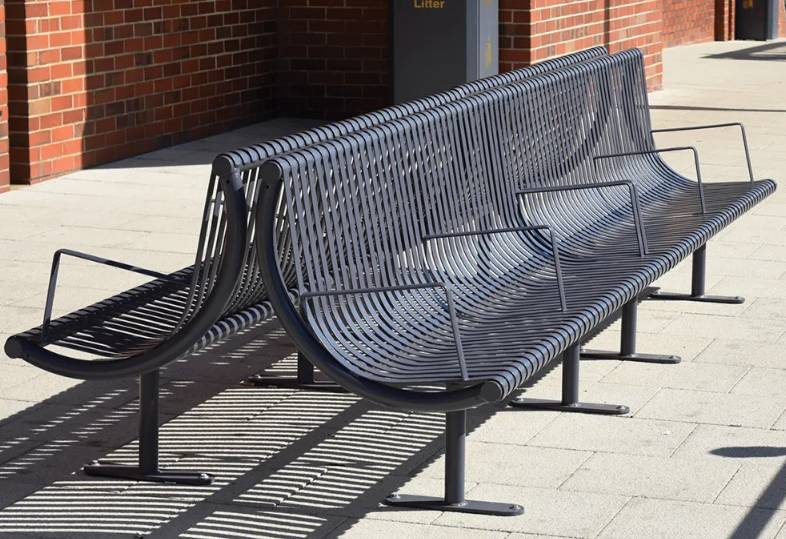

A contemporary style, all welded steel seat available in a variety of colours. The Weyburn Seat can be supplied as either a straight seat or in curved sections.


Features and benefits:

  • The steel frame is available in a range of colours.
  • Can be supplied with armrests.
  • Memorial plaques are available.

General information

Color

Manufacturer guidance

Coating to a non standard BS/RAL colour is also available.

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Other

Guidance for specification option:

Curved.

Length

1800 mm

Width

533 mm

Height

820 mm

Warranty description

One year

Uniclass

Pr_40_30_29_85 Street and site seatsPrimary

CAWS

Q50/34 Seats

Q50/225 Seats

Specification data - Street and site seats

Length

1.8 m.

Base

Base plated.

Root fixed.

Material

Steel.

Finish as delivered

Galvanized and coated.

Colours

Anthracite Grey RAL 7016.

Black RAL 9005.

Dark Blue RAL 5013.

Dark Grey BS 4800 18 B 25.

Duchess Blue BS 4800 20 C 40.

Goose Grey BS 4800 00 A 05.

Holly Green BS 4800 14 C 39.

Mid Blue RAL 5015.

Moss Green RAL 6005.

Traffic Red RAL 3020.

Traffic Yellow RAL 1023.

White Aluminium RAL 9006.

White RAL 9016.

Non standard BS/RAL colour.

Guidance for specification option:

Insert requirements.

Accessories

None.

Memorial plaque.

Two memorial plaques

Three memorial plaques.

Armrests to each end.

Curved configuration.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Weyburn Seat Specification Sheet

Weyburn Seat Specification Sheet

Case studies

Barry Island, Glamorgan

Barry Island, Glamorgan
