Weyburn Bench

Verified by manufacturer 2 months ago

Broxap Street Furniture

A steel bench available in a variety of colours.

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for any external seating area.

Description

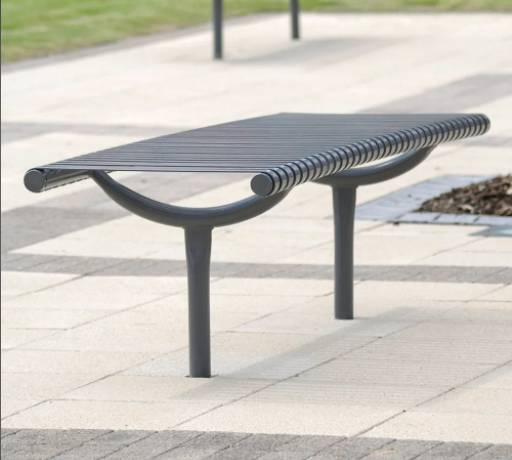

The Weyburn Bench compliments the Weyburn Seat and is available straight or curved, made to various lengths and special configurations.


Features and benefits:

  • Durable and functional.
  • Available in a range of colours.

General information

Color

Manufacturer guidance

Coating to a non standard BS/RAL colour is also available.

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Other

Guidance for specification option:

Curved.

Length

1800 mm

Width

570 mm

Height

470 mm

Warranty description

One year

Uniclass

Pr_40_30_29_85 Street and site seatsPrimary

CAWS

Q50/33 Benches

Q50/220 Benches

Specification data - Street and site seats

Length

1.8 m.

Guidance for specification option:

Width: 570 mm Height: 470 mm.

Bespoke.

Guidance for specification option:

Various lengths available on request, insert requirements.

Base

Base plated.

Root fixed.

Material

Steel.

Finish as delivered

Galvanized and coated.

Colours

Anthracite Grey RAL 7016.

Black RAL 9005.

Dark Blue RAL 5013.

Dark Grey BS 4800 18 B 25.

Duchess Blue BS 4800 20 C 40.

Goose Grey BS 4800 00 A 05.

Holly Green BS 4800 14 C 39.

Mid Blue RAL 5015.

Moss Green RAL 6005.

Traffic Red RAL 3020.

Traffic Yellow RAL 1023.

White Aluminium RAL 9006.

White RAL 9016.

Non standard BS/RAL colour.

Guidance for specification option:

Insert requirements.

Configuration

Straight.

Curved.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

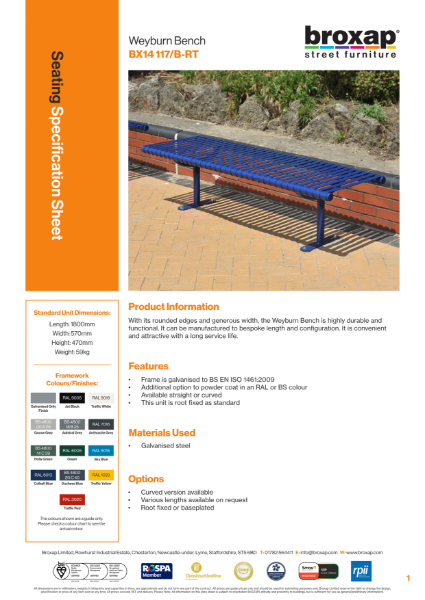

Weyburn Bench Specification Sheet

Weyburn Bench Specification Sheet

Case studies

Barry Island, Glamorgan

Barry Island, Glamorgan
