Wet Suit 1-Part - Fully Self-Adhered Cold-Spray Membrane

Verified by manufacturer 7 months ago

Ultima Coatings Limited Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • NCC Volume 1

    Certificate type

  • NCC Volume 2

    Certificate type

  • New Zealand Building Code

    Certificate type

A water-based, medium viscosity, self-leveling liquid-applied membrane that can be sprayed, brushed, or roll applied up to 2 mm wet vertically.

Jump to:
07833459000 Website

Application

WetSuit® is designed for exterior and interior vertical and horizontal waterproofing, roofing and environmental barrier applications.

  • Split slab and structural slab waterproofing: Plaza decks, balconies, roof decks.
  • Sea walls, dams and retaining walls: Green roofs, blue roofs, terraces, and planters.
  • Corrosion protection wall restoration: Below grade foundations and walls
  • Impermeable air and vapour barriers: Ponds, fountains, pools, tanks, containment.
  • Marine and industrial applications new and retrofit roofing over capsheet/APP, single-ply (TPO, PVC, EPDM), metal roofs, built-up roofs, plywood, spray foam, and many coatings.

Description

WetSuit® 1-Part is a patented VOC-free, self-levelling, water-based cold applied single component fully-adhered, auto-terminating bituminous high-grade rubber membrane suitable for a variety of waterproofing, roofing, air/ vapour barrier, and protective applications. WetSuit® 1 part can be spray, roll, or brush applied.


Features and benefits:

  • Versatile, proven in waterproofing, roofing, and air/vapour barrier applications, hydrostatic and dry, exposed and buried, interior and exterior, vertical and horizontal.
  • Durable, 2175% elongation and memory.
  • Highly resistant to puncture and impact, approved for foot traffic, excellent weathering and UV resistance performance.
  • True waterproofing performance.
  • Self-levelling, provides a monolithic waterproofing membrane over highly textured and rough surfaces, including UV-damaged spray foam, standing seam metal roofs and built-up gravel roofs.
  • Environmentally friendly, low-impact install.
  • Simple preparation work. Requires fabric reinforcement only on a gap, transitions, and joints, no torches or melting pots.

General information

Color

Black

Finish

Matt

Material

Rubber

Shape

Other

Manufacturer guidance

Can be custom designed to any shape.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

20 year

Manufacturer guidance

A 120 year warranty can be provided for underground application.

Uniclass

Pr_35_31_68_17 Cold-applied polymer-modified bitumen waterproof coatingsPrimary

CAWS

J30/110 Cold-applied tanking

J30/130 Cold-applied damp-proofing

J30/10 Cold-applied damp-proofing

Specification data - Cold-applied polymer-modified bitumen waterproof coatings

Third-party certification

Tested to BRoofT1, BRoofT2, BRoofT3, DRoofT4, Euroclass E.

Modifier

Polychloroprene (CR).

Colour

Black.

VOC content

0%.

Manufacturer guidance

Volatile Organic Compounds

Elongation

To ASTM D412, 2175%.

Sustainability data

Contains Red List materials

No

Country of material origin

-

Manufacturer guidance

Material originates from various parts of the world, depending on availability of supply. However, information can be provided. Once an order has been placed, we will be able to identify the source of the material for the specific batches.

Country of product manufacture

United States

Recyclability

-

Manufacturer guidance

The WetSuit could be recycled in the same way as you would recycle old tires. The recycled material can be used in a: "Tire Derived Aggregate"; "Rubber Modified Asphalt"; and "Tire Derived Fuel".

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

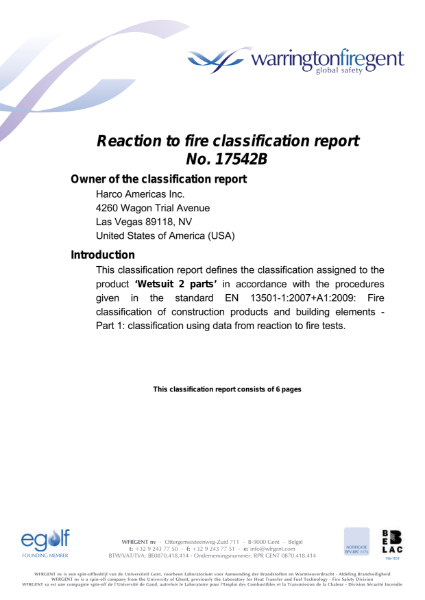

BS EN 13501-1

BS EN 13501-1

Fire Safety Certificate

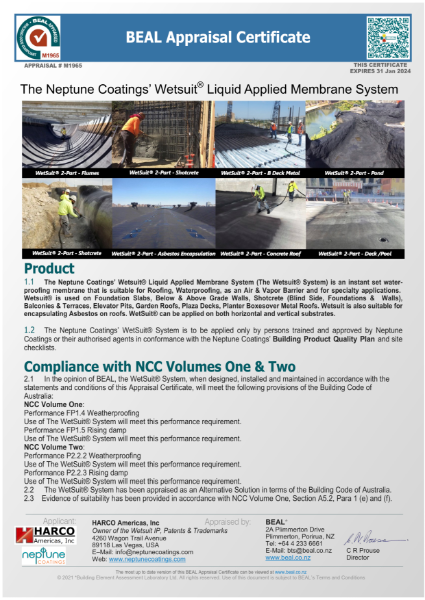

NCC Volume 1

NCC Volume 1

Compliance with NCC Volume 1

NCC Volume 2

NCC Volume 2

Compliance with NCC Volume 2

New Zealand Building Code

New Zealand Building Code

New Zealand Building Code

Literature

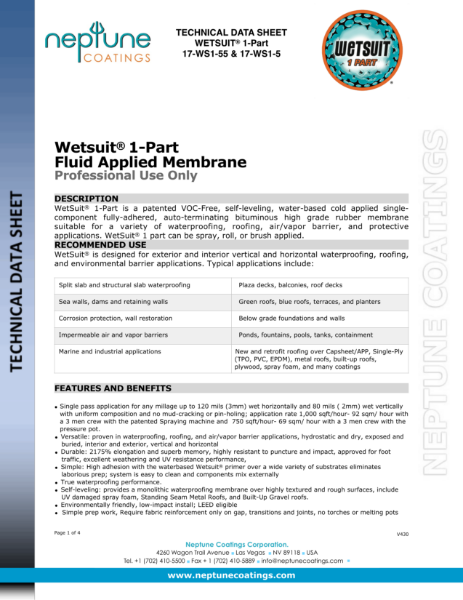

NCC-TDS -EN- Wetsuit 1-part

NCC-TDS -EN- Wetsuit 1-part

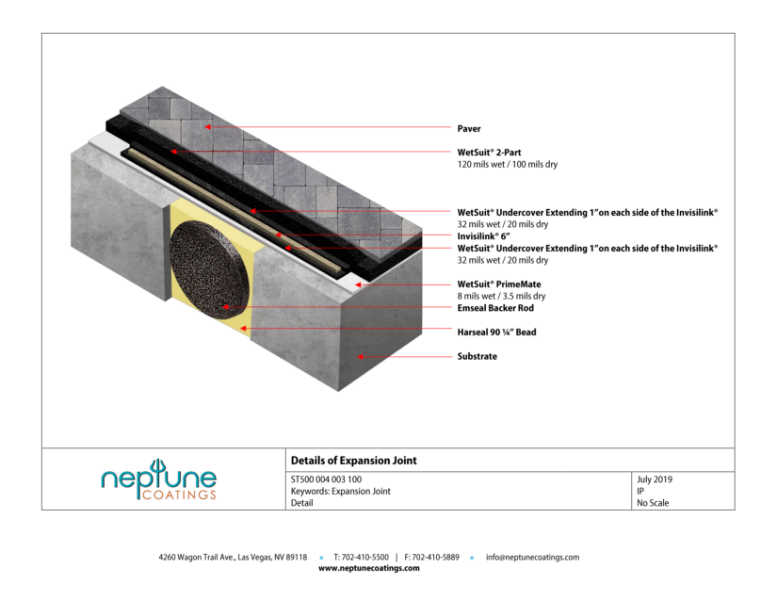

Specification Drawing of Expansion Joint for Roofing

Specification Drawing of Expansion Joint for Roofing

Standard Outside Corner Waterproofing Transition

Standard Outside Corner Waterproofing Transition

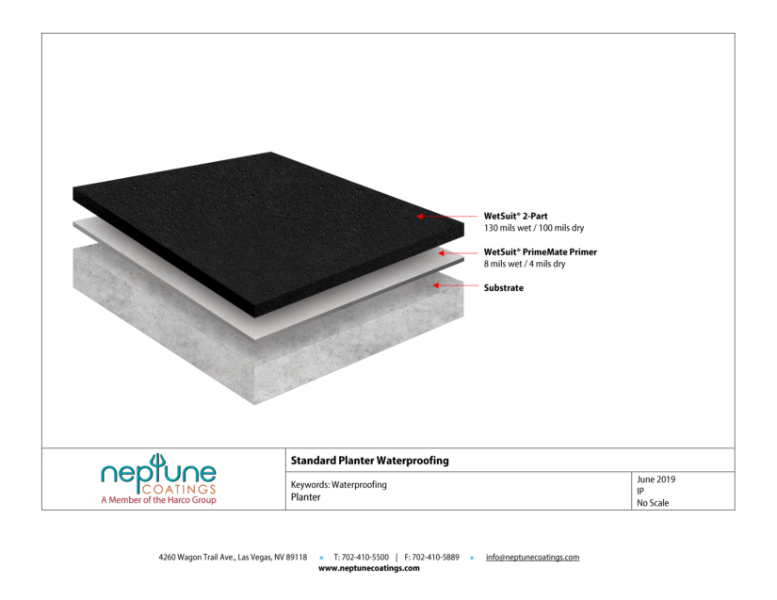

Standard Planter Waterproofing

Standard Planter Waterproofing

Standard Waterproofing System

Standard Waterproofing System

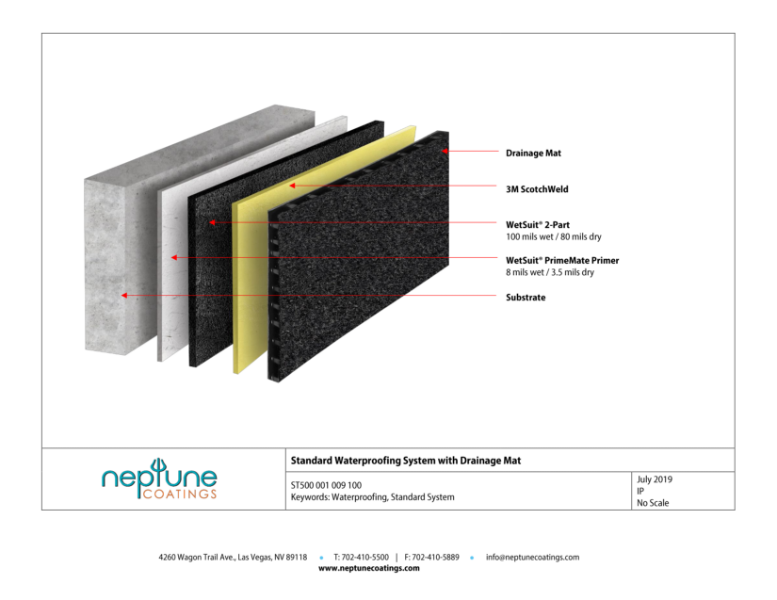

Standard Waterproofing System with Drainage Matt

Standard Waterproofing System with Drainage Matt

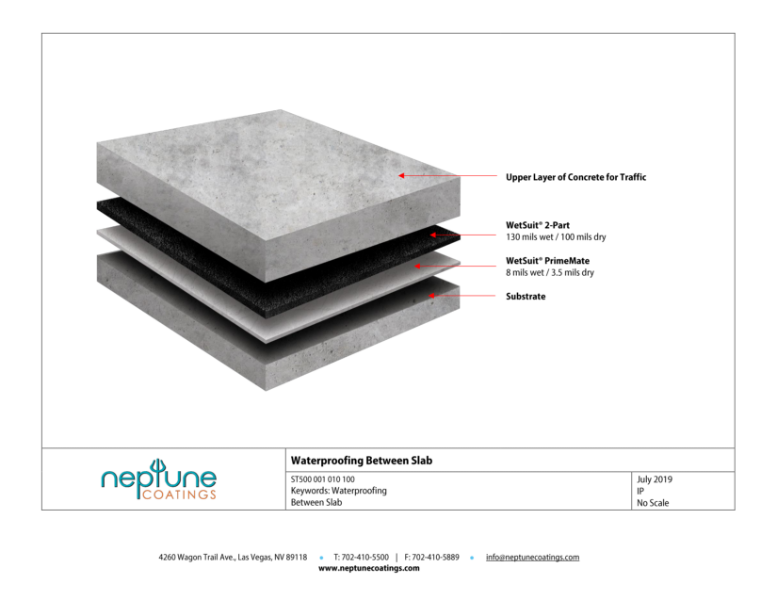

Waterproofing Between Slab

Waterproofing Between Slab

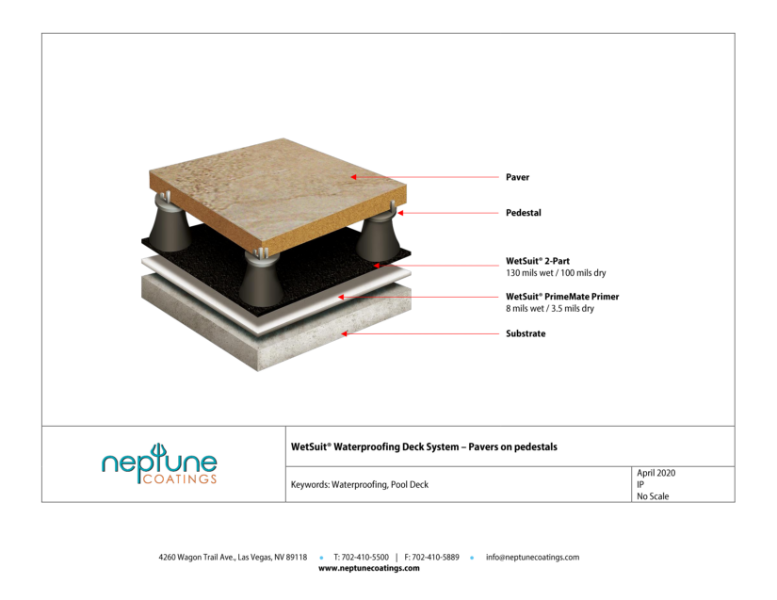

Waterproofing Deck System - Pavers on Pedestals

Waterproofing Deck System - Pavers on Pedestals

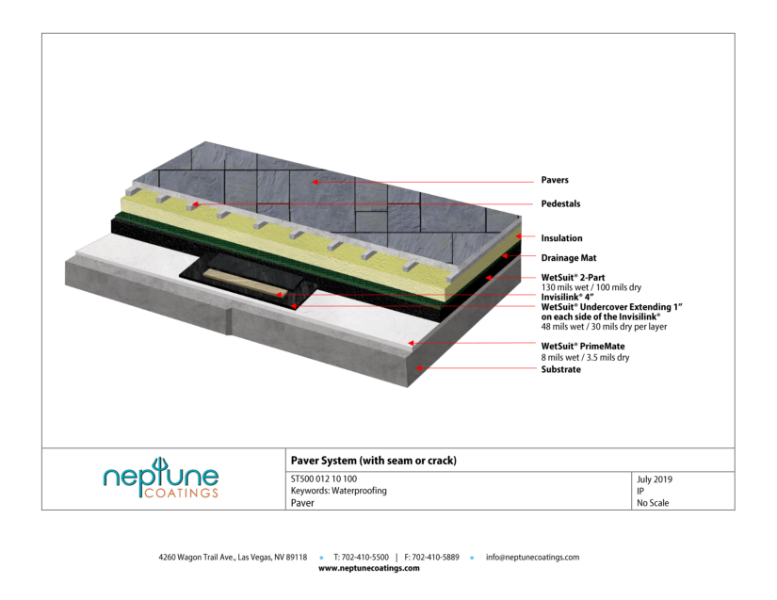

WetSuit Paver System with Seam or Crack

WetSuit Paver System with Seam or Crack

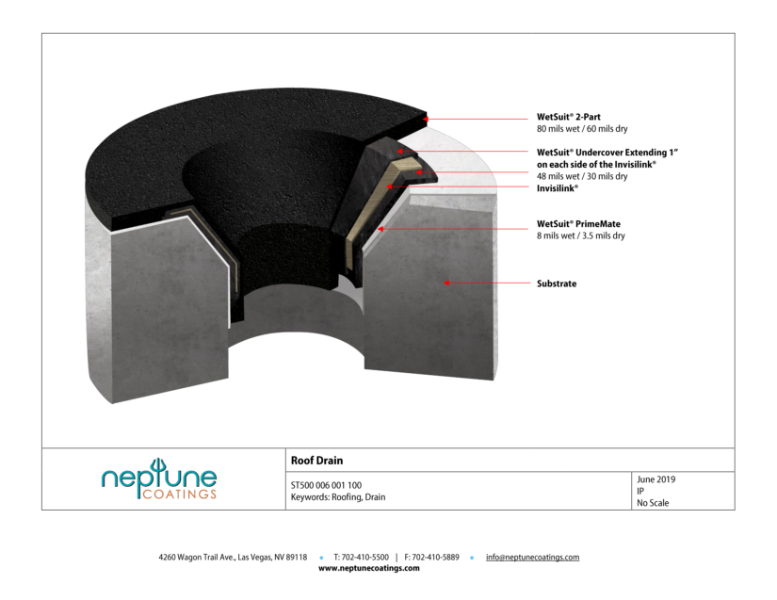

WetSuit Roof Drain

WetSuit Roof Drain

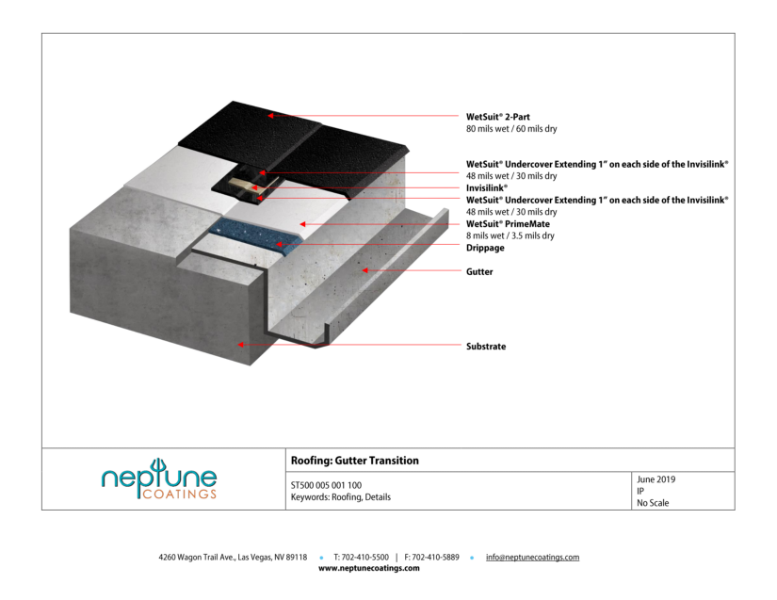

WetSuit Roofing Gutter Transition

WetSuit Roofing Gutter Transition

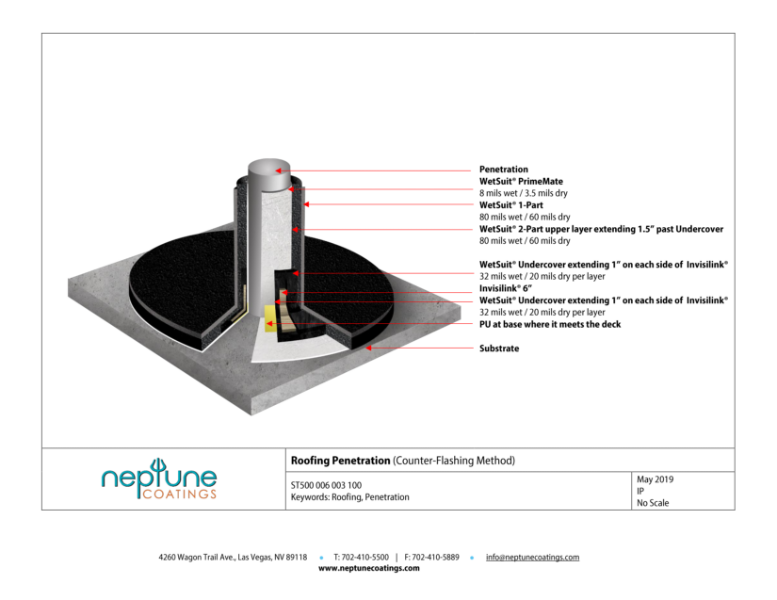

WetSuit Roofing Penetration (Counter-Flashing Method)

WetSuit Roofing Penetration (Counter-Flashing Method)

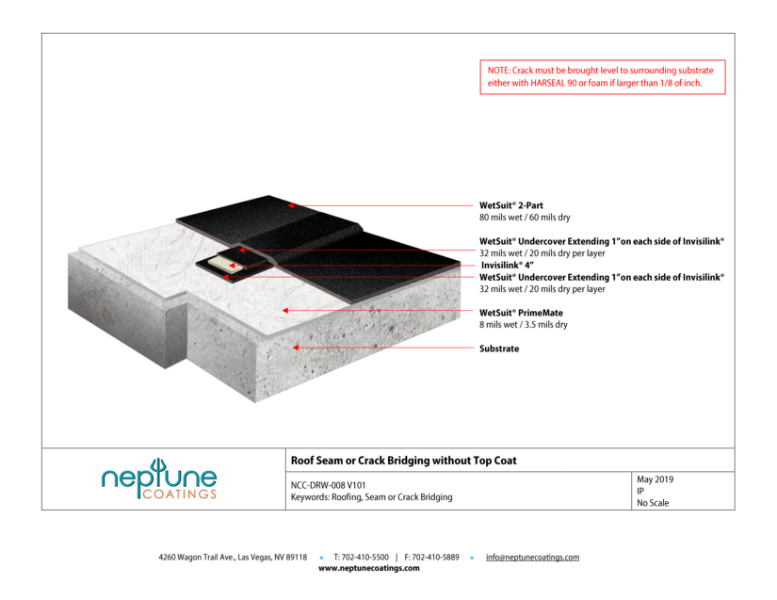

WetSuit Roof Seam or Crack Bridging (without Top Coat)

WetSuit Roof Seam or Crack Bridging (without Top Coat)

WetSuit Standard Roof System (without Top Coat)

WetSuit Standard Roof System (without Top Coat)

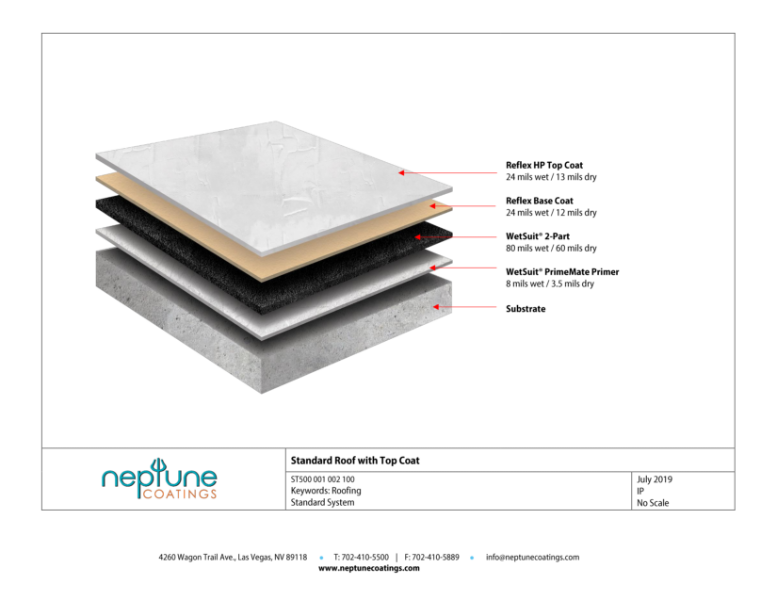

WetSuit Standard Roof System with Top Coat

WetSuit Standard Roof System with Top Coat

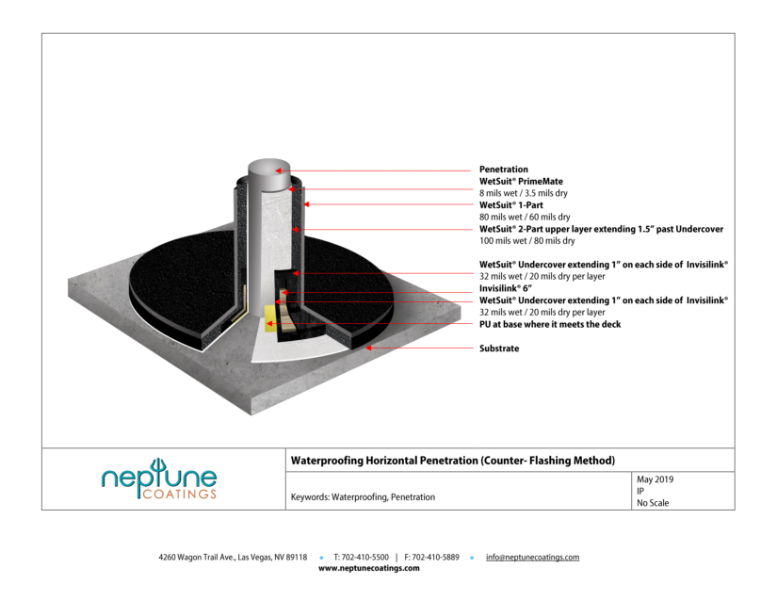

Waterproofing Horizontal Penetration (counter-flashing)

Waterproofing Horizontal Penetration (counter-flashing)

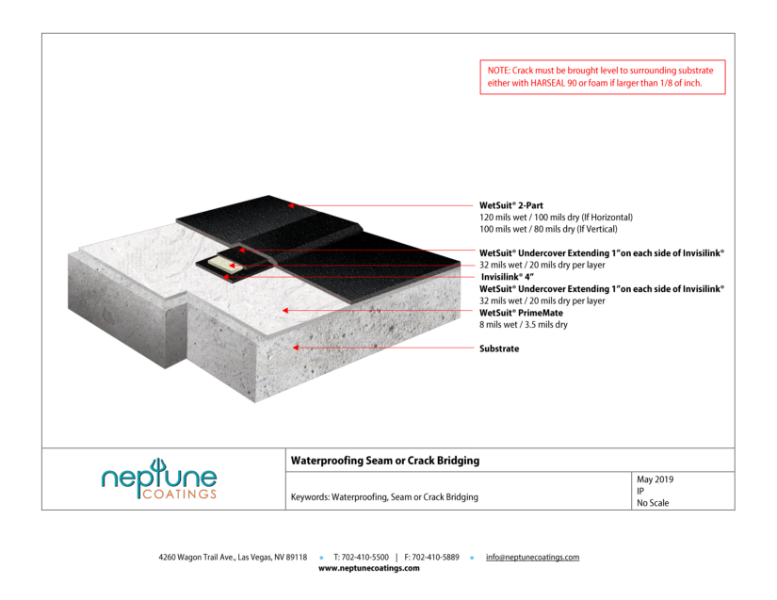

WetSuit Waterproofing Seam or Crack Bridging

WetSuit Waterproofing Seam or Crack Bridging

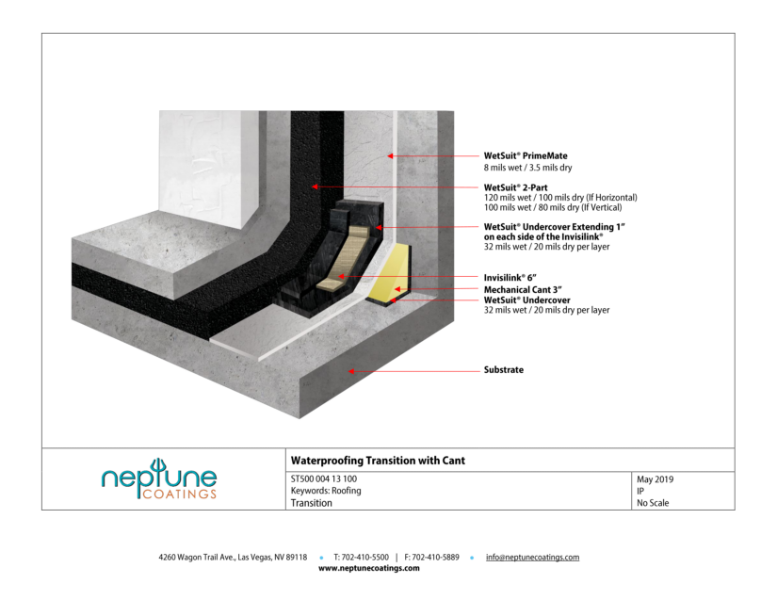

Waterproofing Transition with Cant

Waterproofing Transition with Cant

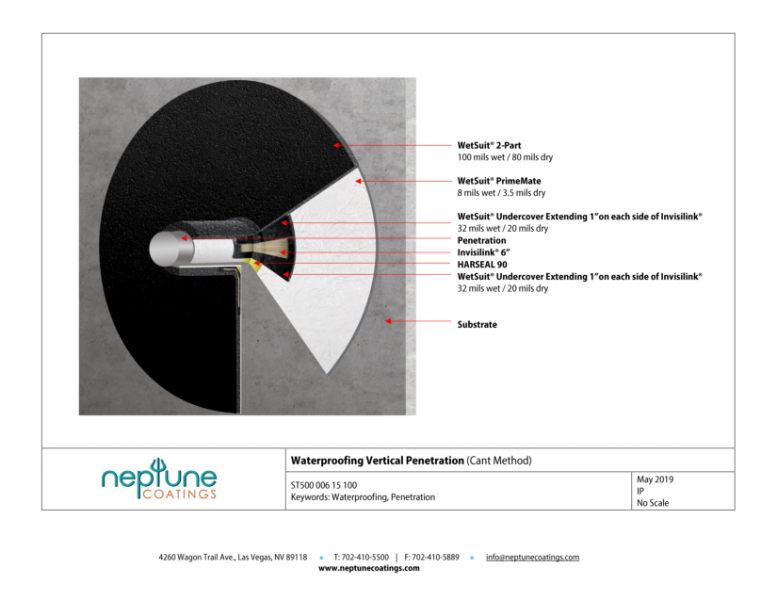

WetSuit Waterproofing Vertical Penetration (with silicone)

WetSuit Waterproofing Vertical Penetration (with silicone)

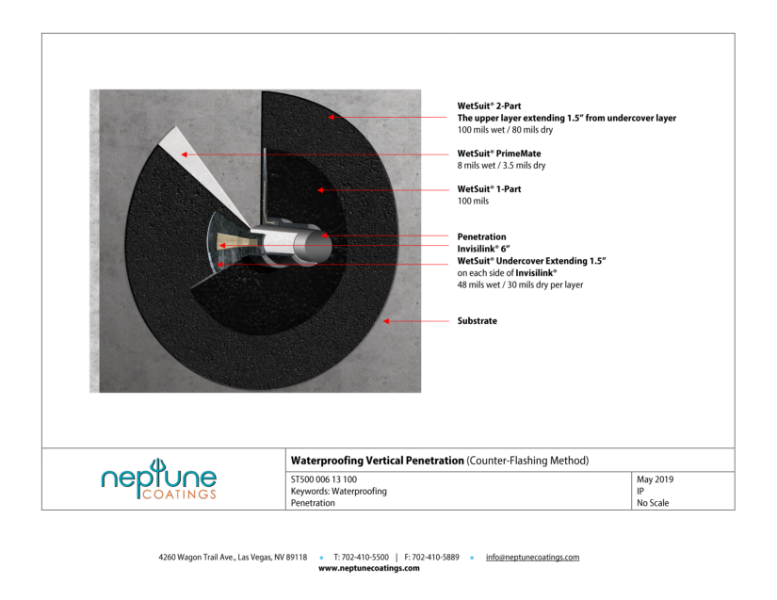

Waterproofing Vertical Penetration (counter-flashing)

Waterproofing Vertical Penetration (counter-flashing)

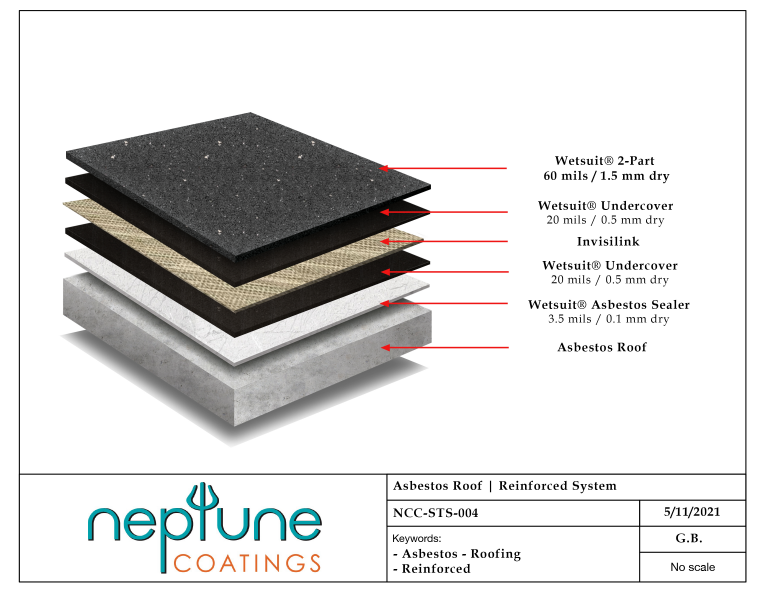

Asbestos Roof Encapsulation System (reinforced)

Asbestos Roof Encapsulation System (reinforced)

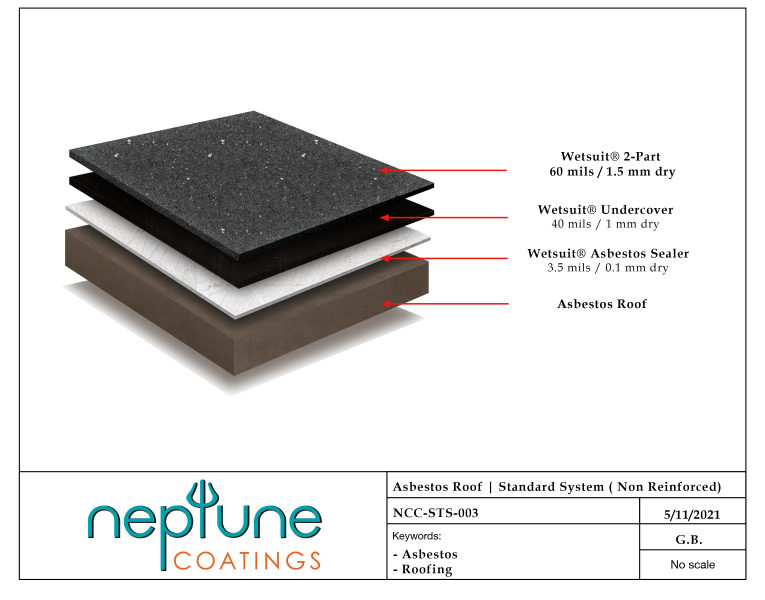

Asbestos Roof Encapsulation System

Asbestos Roof Encapsulation System

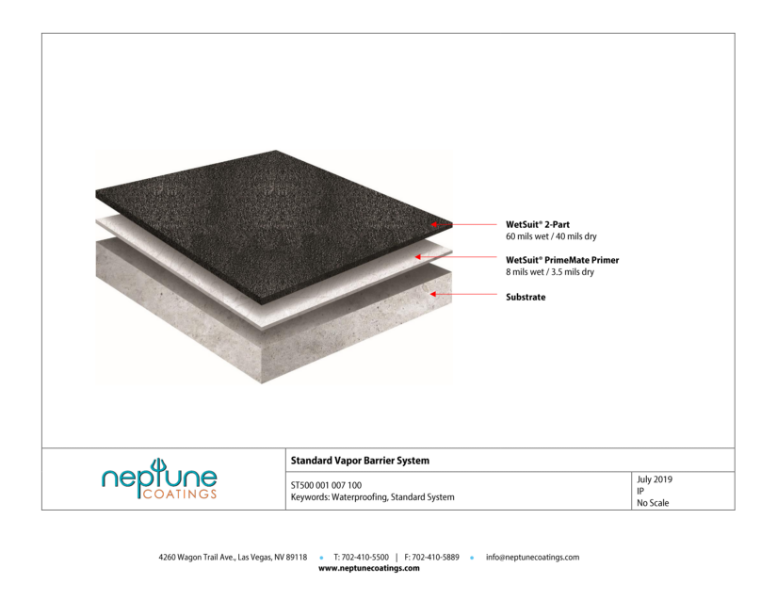

WetSuit Vapour Barrier System

WetSuit Vapour Barrier System

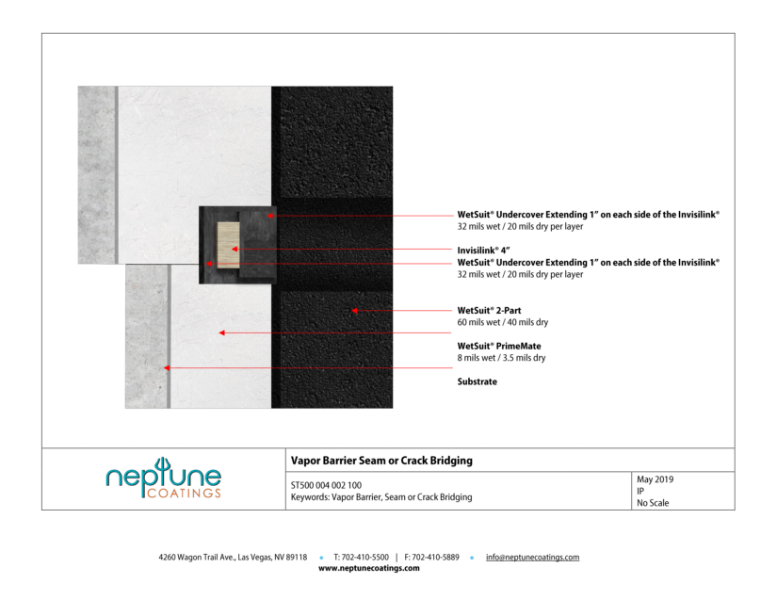

WetSuit Vapour Barrier System (Seam or Crack bridging)

WetSuit Vapour Barrier System (Seam or Crack bridging)

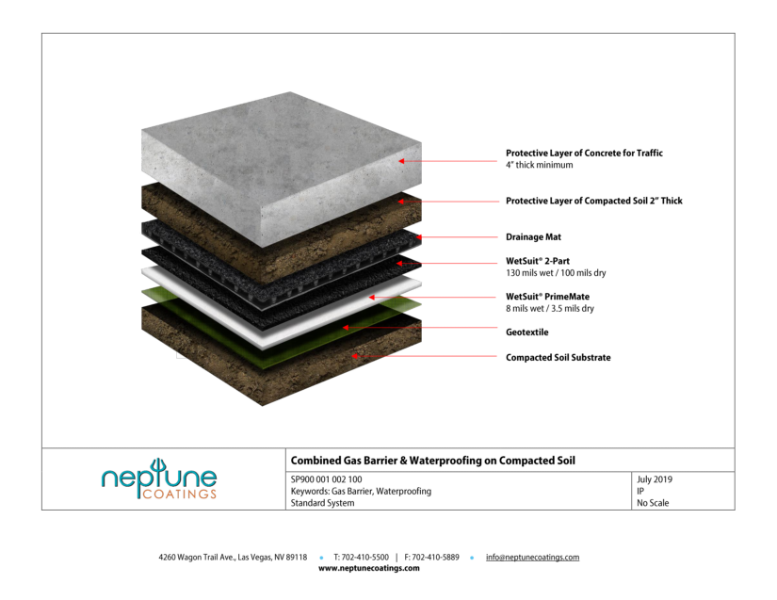

Combined Gas Barrier and Waterproofing on Compacted Soil

Combined Gas Barrier and Waterproofing on Compacted Soil

Combined Gas Barrier and Waterproofing

Combined Gas Barrier and Waterproofing

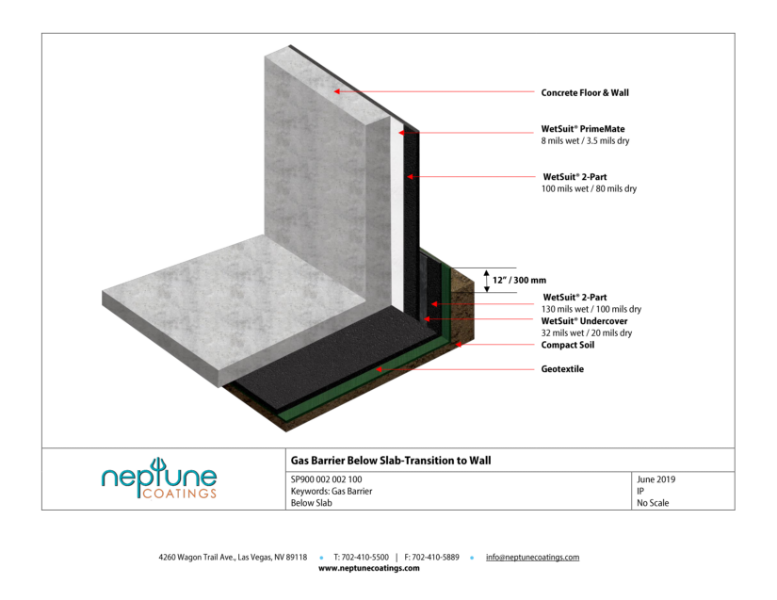

Gas Barrier below slab transition to wall

Gas Barrier below slab transition to wall

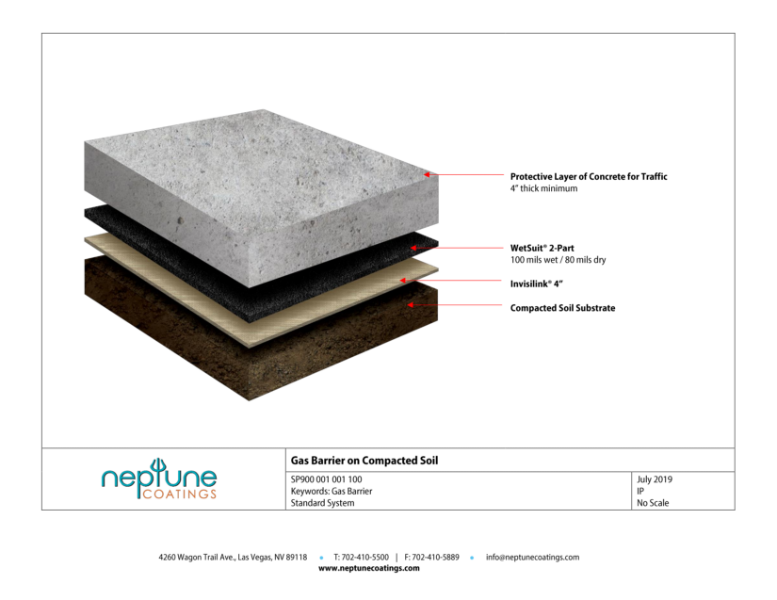

Gas Barrier on Compacted Soil

Gas Barrier on Compacted Soil

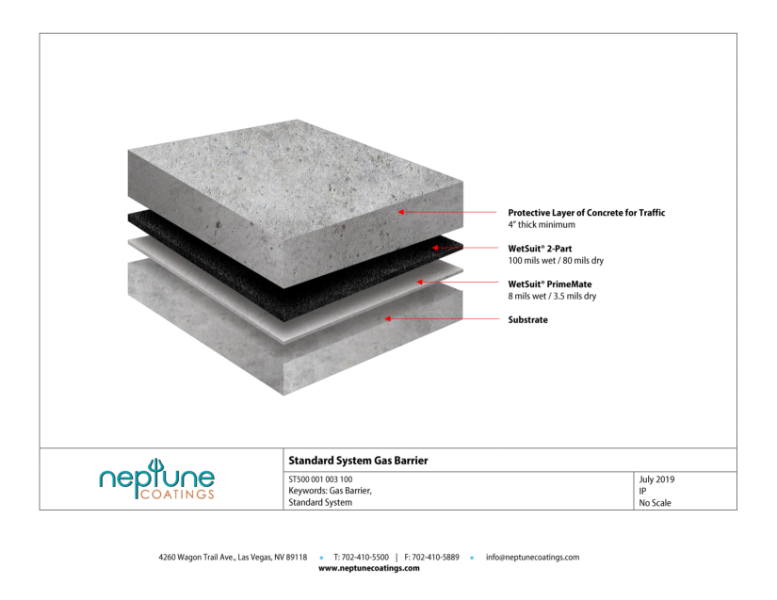

Standard System for Gas Barrier

Standard System for Gas Barrier

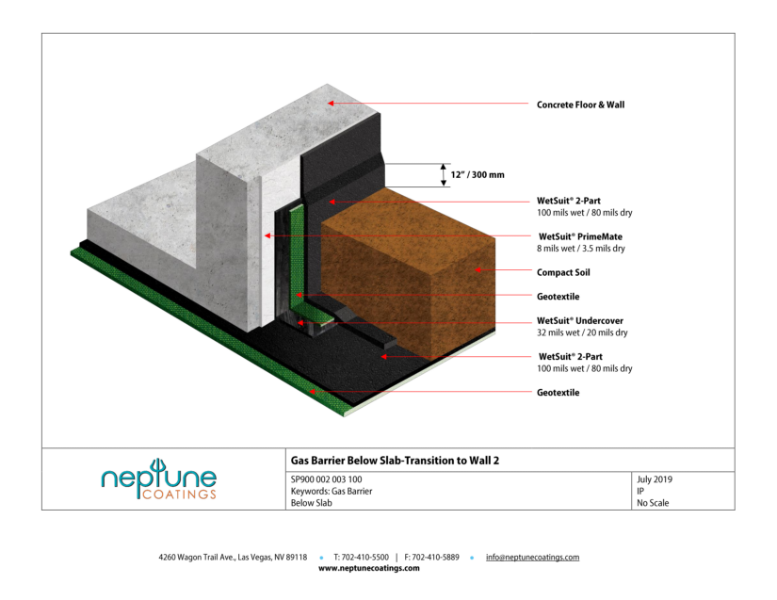

Gas Barrier below Slab transition to Wall (alternative approach)

Gas Barrier below Slab transition to Wall (alternative approach)

Deck System

Deck System

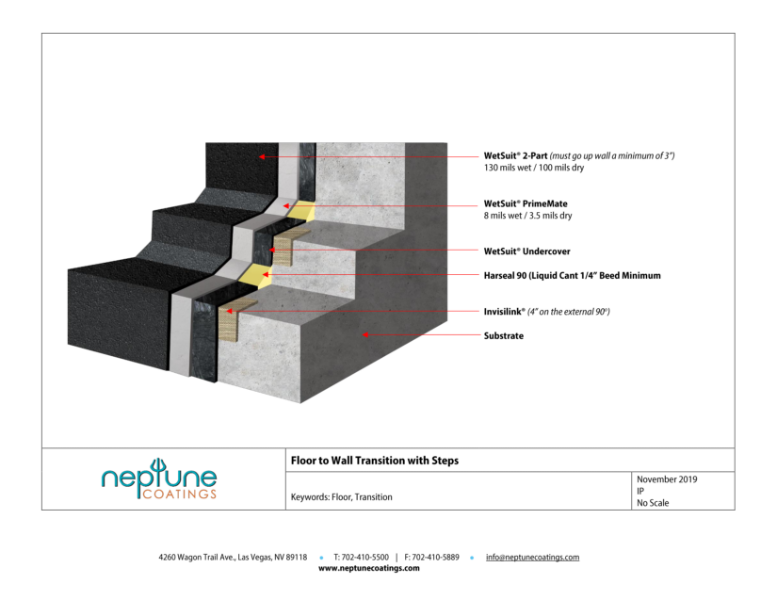

Floor to Wall Transition with Steps

Floor to Wall Transition with Steps

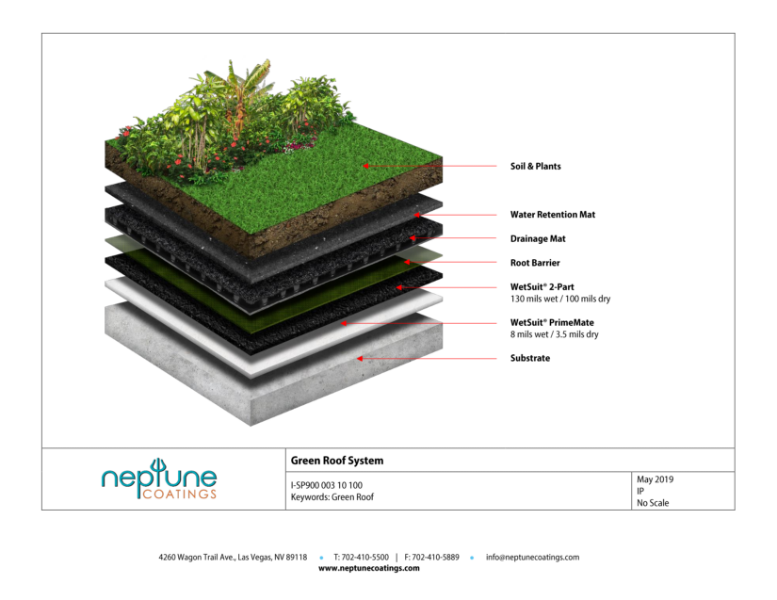

Green Roof

Green Roof

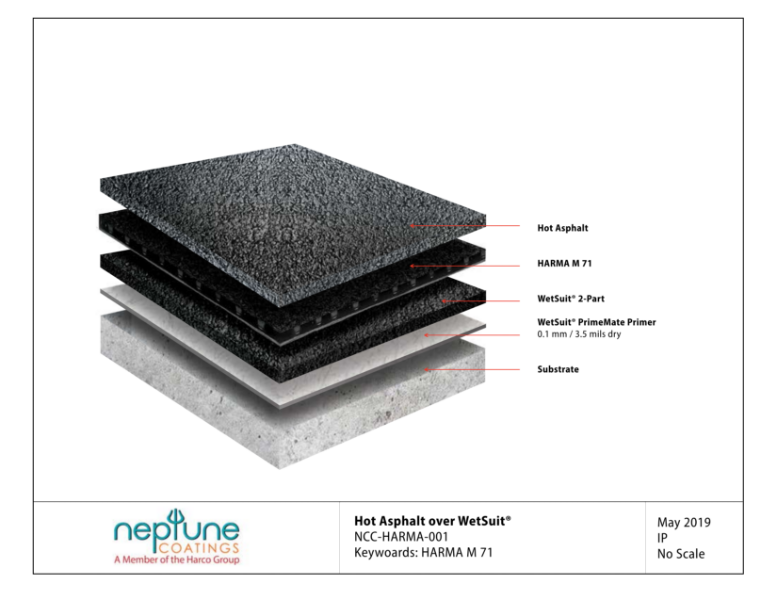

Hot Asphalt over WetSuit

Hot Asphalt over WetSuit

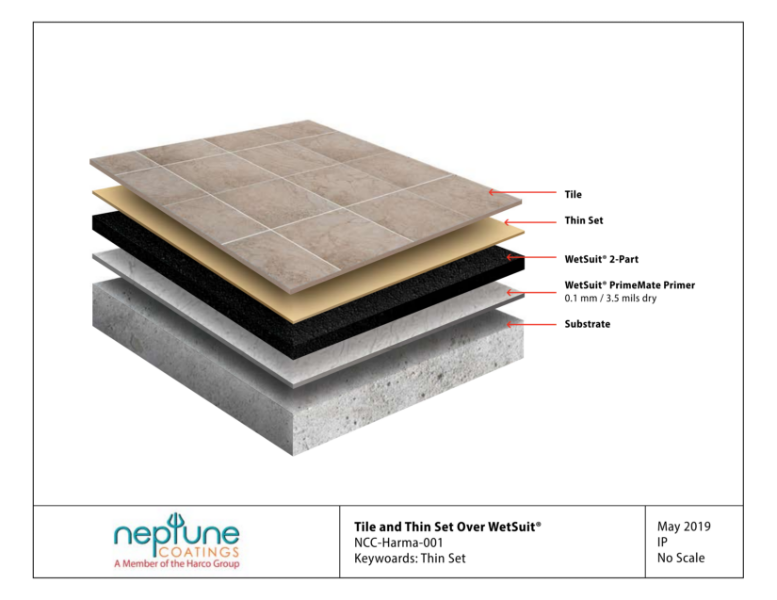

Tile and Thin set over WetSuit

Tile and Thin set over WetSuit

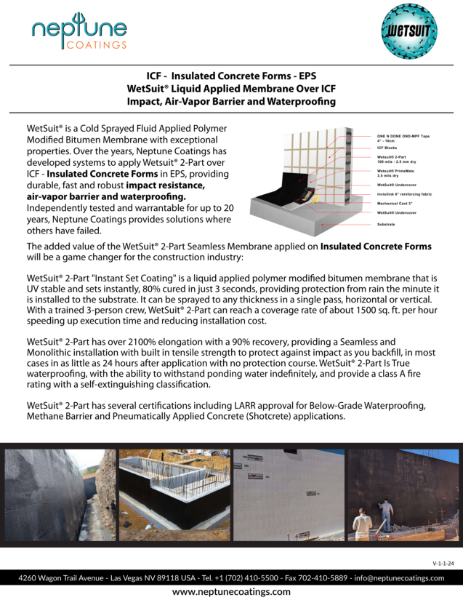

Insulated Concrete Framework (including Detailing and Footing)

Insulated Concrete Framework (including Detailing and Footing)

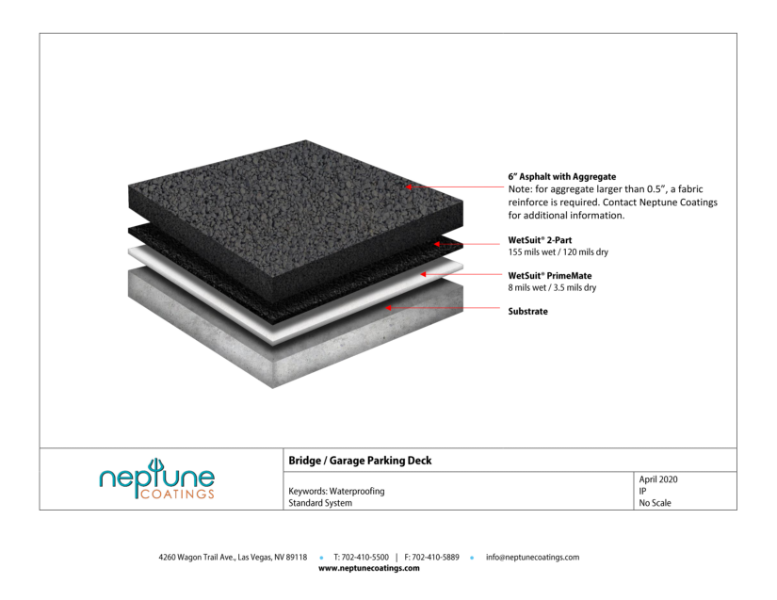

WetSuit System over Bridge or Garage Parking Deck

WetSuit System over Bridge or Garage Parking Deck
